Equip 37"-65" modulárny push-in pop-out TV nástenný držiak

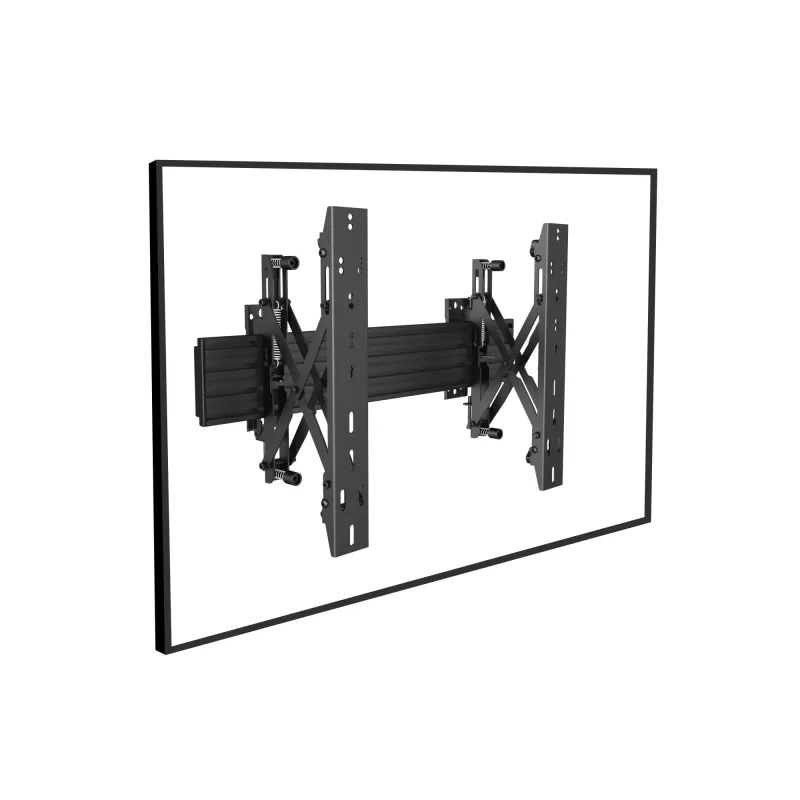

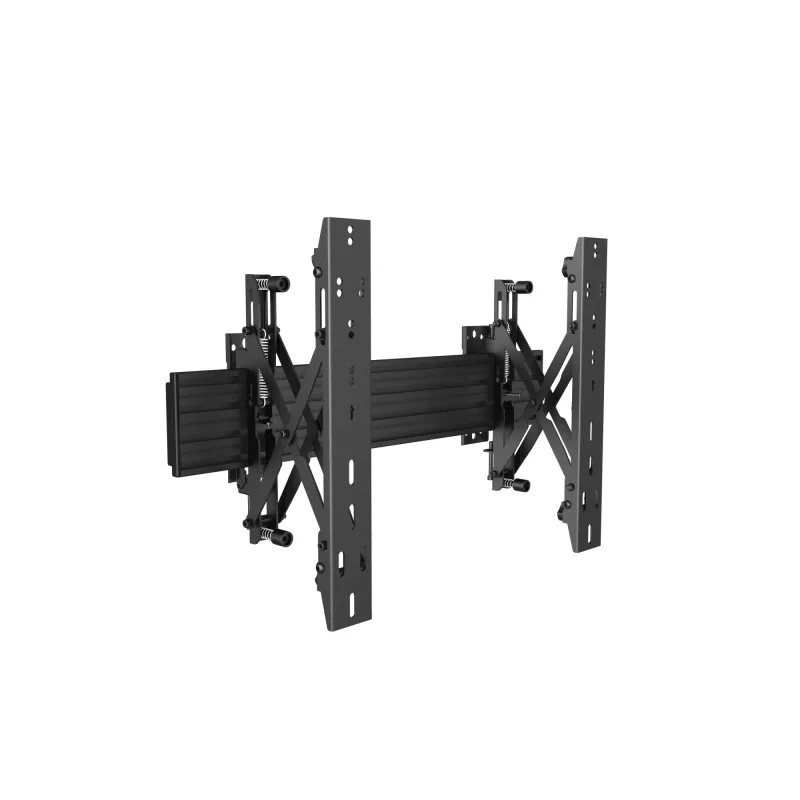

The equip® Push-In Pop-Out TV Wall Mount Bracket is a modular mounting solution designed for professional and home video wall installations. It supports single screens from 37" to 65" with a maximum weight capacity of 30 kg and accommodates VESA patterns from 100 x 100 mm up to 600 x 400 mm. The mount features a Push-In Pop-Out mechanism that allows quick access to the display for service and maintenance and provides a slim black finish suitable for modern interiors.

Advantages

This TV wall mount offers fast installation and straightforward configuration for multiple-screen environments or single-screen integrations. The Push-In Pop-Out feature enables easy forward access to the display for quick servicing without removing the entire assembly. The bracket supports a wide range of VESA sizes and fits screens up to 65" while maintaining a compact, low-profile design.

Suitable for

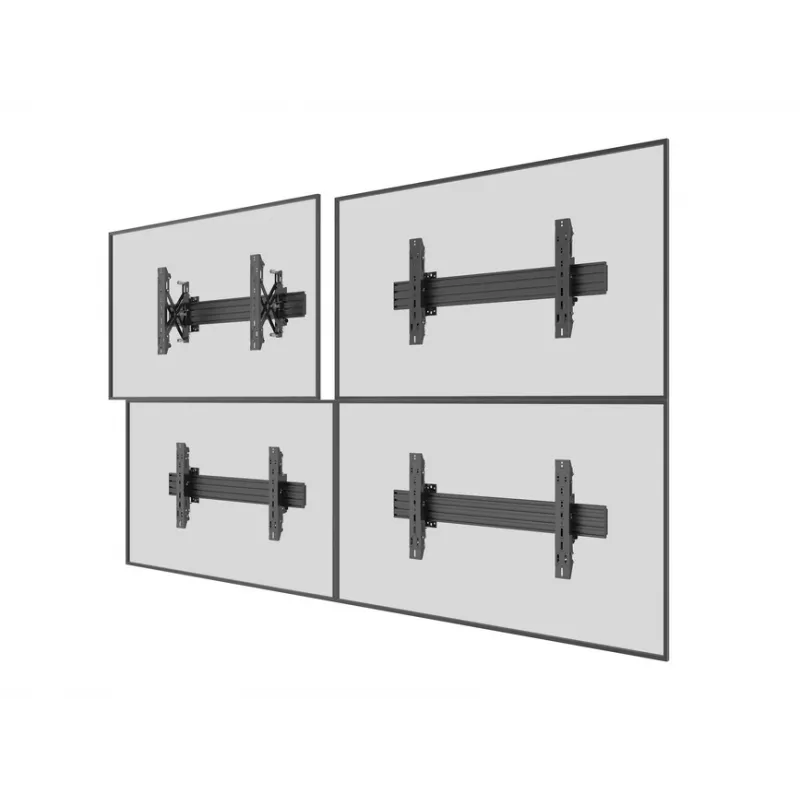

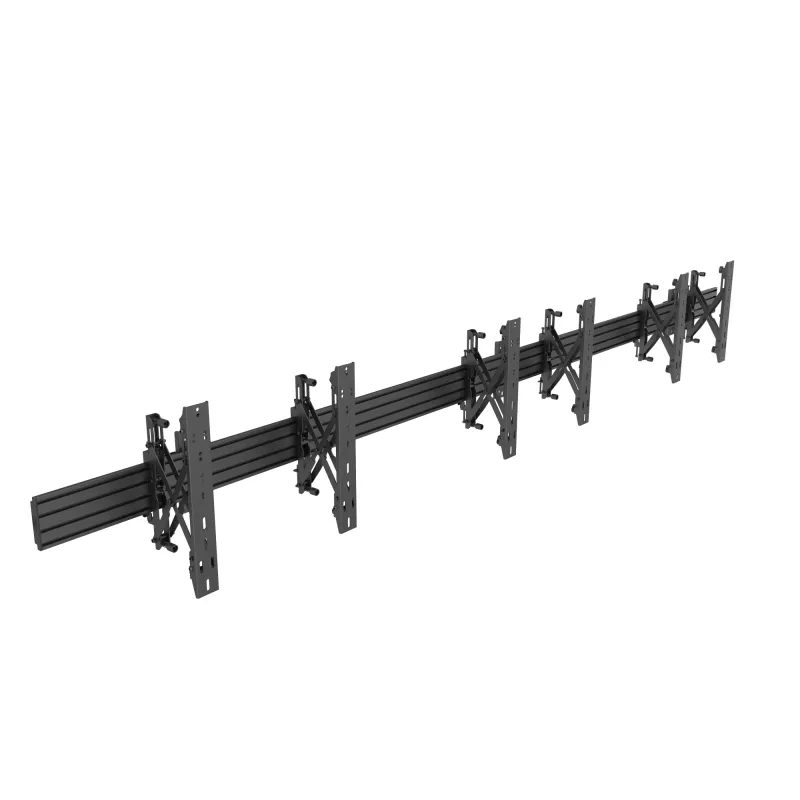

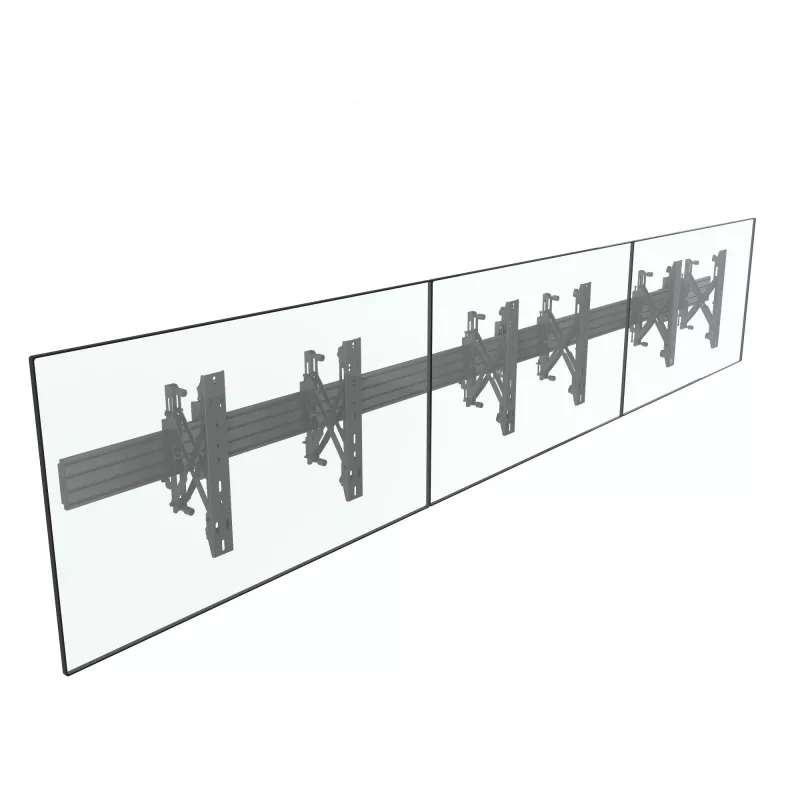

• Video wall installations
• Single-screen wall mounting in homes or offices
• Locations requiring easy maintenance and service access

Key specifications

• Supported screen size: 37"–65"
• Maximum weight capacity: 30 kg

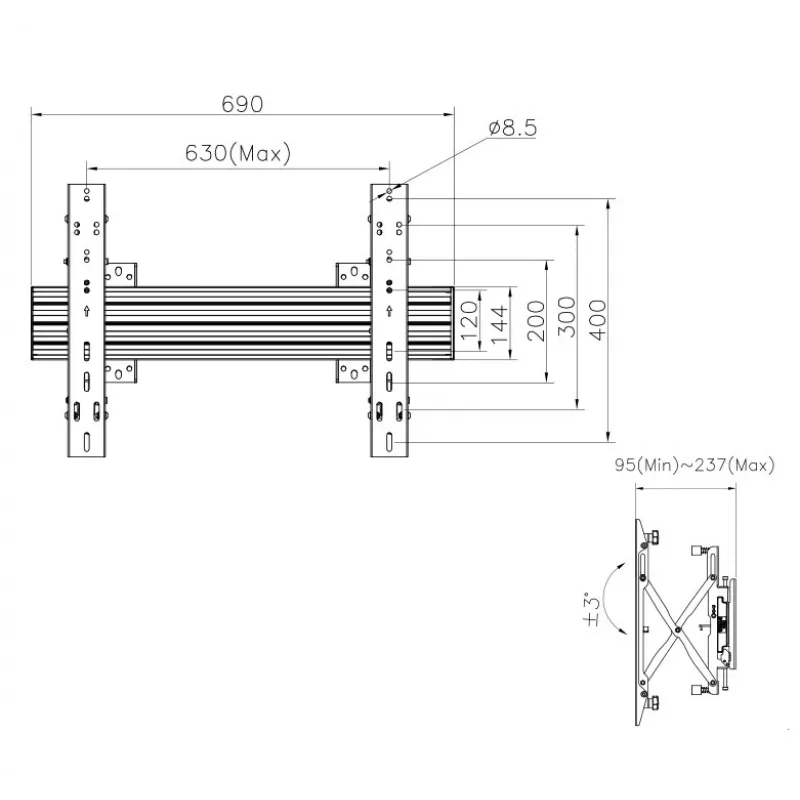

• VESA compatibility: 100 x 100 mm up to 600 x 400 mm
• Tilt range: -3° to 3°
• Number of displays supported: 1
• Product weight: 7 kg
• Product colour: Black

How to use

Mount the bracket to a suitable load-bearing wall following the included installation instructions and ensure the wall fixings match local building requirements and the display weight. Attach the display to the bracket using the correct VESA mounting holes and secure fasteners. Use the Push-In Pop-Out function to pull the screen forward for access when performing maintenance or cable connections, then push it back to its installed position.

Recommendations

Use appropriate wall anchors and ensure the mounting surface can support at least the maximum load. Verify VESA compatibility and weight of the display before installation. For video wall setups, align and configure displays according to manufacturer guidance to maintain consistent gaps and viewing alignment.
