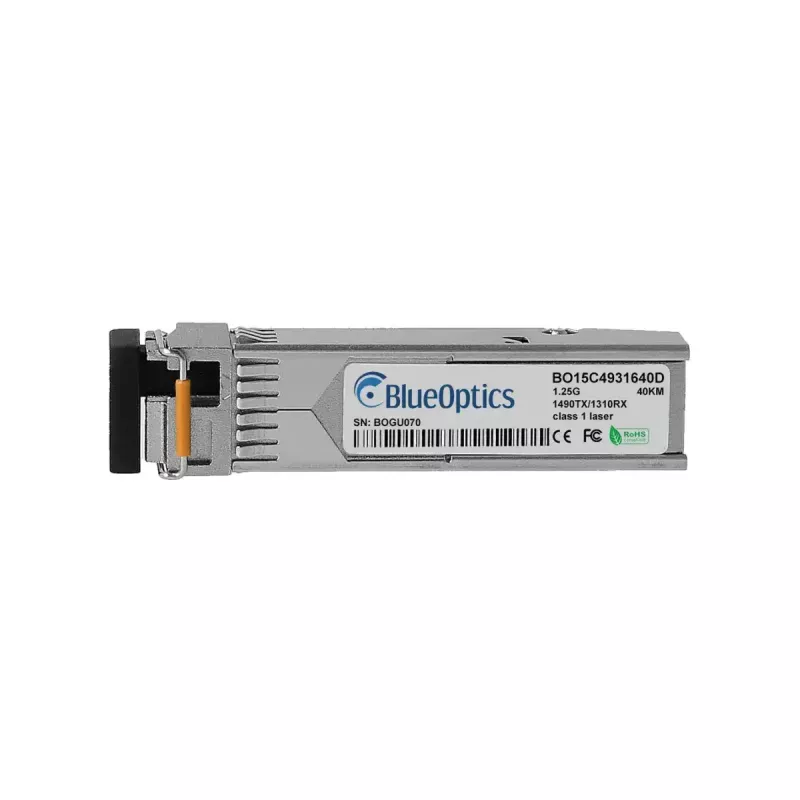

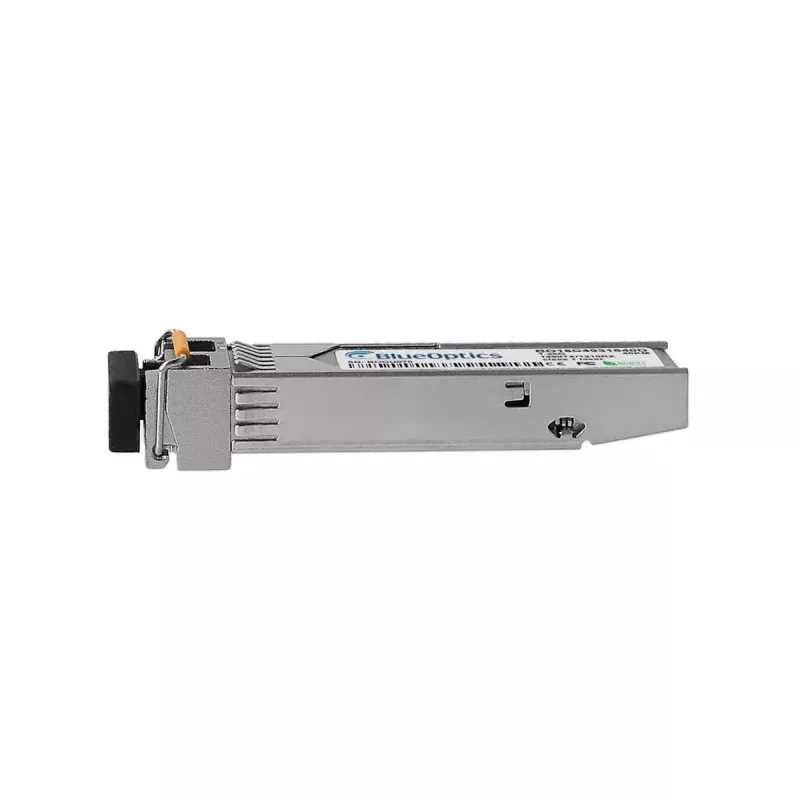

SFP transceiver BlueOptics 3HE04324AB-BO 1250 Mbit/s optické vlákno

The BlueOptics 3HE04324AB-BO SFP transceiver is a compact fiber optic module designed for use in network equipment supporting small form-factor pluggable interfaces. It supports a maximum data transfer rate of 1250 Mbit/s and has a silver housing. Built to industry compliance standards including CE, FCC and RoHS, this SFP module is intended for single-channel fiber links where a reliable, hot-pluggable optical connection is required. The product's mean time between failures (MTBF) is specified as 1,000,000 hours, reflecting expected long-term operation under typical conditions.

Advantages

The module's SFP interface enables hot-swappable installation in switches, routers and media converters without system downtime. Its support for 1250 Mbit/s makes it suitable for common gigabit-edge and fibre-channel-compatible links, while the compact silver form factor conserves slot space in high-density chassis. Compliance with CE, FCC and RoHS standards provides regulatory and environmental conformity for professional installations. The specified MTBF gives an indication of expected reliability over extended operation.

Suitable for

• Fiber optic uplinks between switches and routers
• Interconnects in data closets and rack-mounted equipment
• Media converters requiring an SFP optical module
• Network segments requiring a 1250 Mbit/s optical link

Key specifications

• Interface type: SFP (small form-factor pluggable)
• Maximum data transfer rate: 1250 Mbit/s
• Form factor: compact SFP module, silver housing
• Mean time between failures (MTBF): 1,000,000 hours
• Compliance: CE, FCC, RoHS
• Weight: 0.02 kg

How to use

Ensure the host device supports SFP transceivers and the required optical specifications. Power down the network port if the host device recommends it, then insert the SFP module into an empty SFP slot until it seats firmly and the release latch engages. Connect the appropriate fiber patch cable to the module's optical port, observing correct transmit/receive orientation. After insertion, verify link status and data rate on the host device and configure any required interface settings such as duplex, speed negotiation or optical interface parameters.

Recommendations

Handle the transceiver by its housing and avoid touching the optical connector. Keep protective dust caps on when the module is not connected. Use compatible single-mode or multimode fiber and patch cords specified by system requirements, and verify compatibility with the host equipment's supported SFP modules before deployment.
