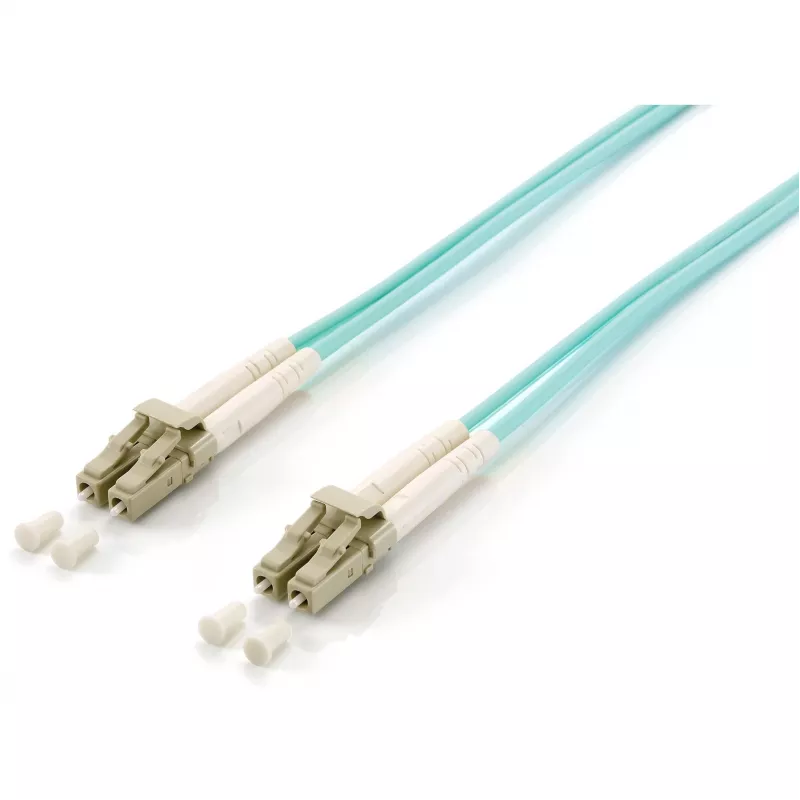

Equip LC-LC optický patch kábel 30m multimode duplex OM3 tyrkysový LSZH

The Equip LC-LC Fiber Optic Patch Cable is a high-performance multimode duplex cable designed for reliable data transmission in enterprise networks. With a length of 30 meters and OM3 grade, it supports 10GbE, 40GbE, and 100GbE applications, making it ideal for data centers, server rooms, and high-speed network infrastructures.

Advantages

This cable offers low insertion loss (≤0.3 dB) and high return loss (≥30 dB), ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes in case of fire. The turquoise color allows for easy identification in dense cabling environments.

Suitable for

• Data center interconnects
• Server room cabling
• High-speed Ethernet networks (10GbE, 40GbE, 100GbE)
• Fibre Channel storage area networks
• Telecommunications infrastructure

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Connector Type: LC to LC
• Fiber Type: Multimode Duplex (2 fibers)
• Fiber Grade: OM3
• Core/Cladding Diameter: 50/125 µm
• Cable Length: 30 m
• Jacket Material: LSZH
• Jacket Color: Turquoise
• Insertion Loss: ≤0.3 dB (typical)
• Return Loss: ≥30 dB (typical)
• Bandwidth: 1500 MHz·km at 850 nm, 500 MHz·km at 1300 nm
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to avoid bending beyond the minimum bend radius. This cable is compatible with all standard LC duplex interfaces.
