Equip LC/SC 62,5/125μm 1,0 m InfiniBand/sklenené vlákno kábel 1 m SC oranžová

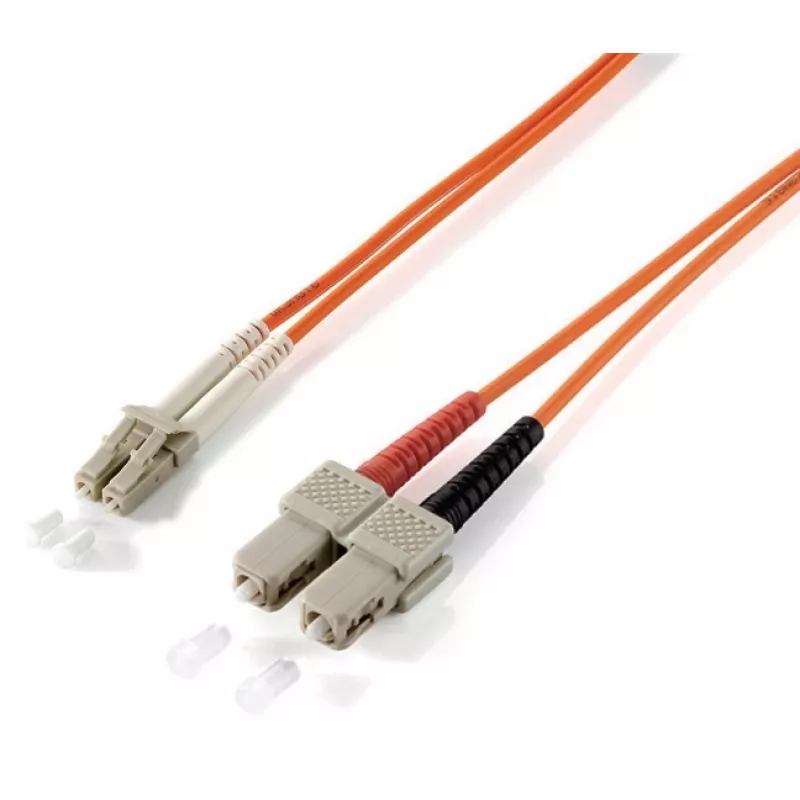

The equip® Optical Fiber Patch Cord is a 1.0 m full-duplex fibre optic cable designed for high-speed data transmission. It uses OM1 multimode fibre with a 62.5/125 µm core/cladding geometry and is terminated with LC and SC ceramic-ferrule connectors. The cable jacket is low smoke zero halogen (LSZH), and each unit is supplied with a measurement protocol. The product is REACH compliant and intended for reliable short-distance networking installations.

Advantages

The Equip LC/SC fibre optic cable provides low insertion loss and low return loss thanks to precision end-face geometry and ceramic ferrules. Available in standard connector types (LC and SC) and in a 1.0 m length, it supports easy deployment in patch panels and network equipment. The LSZH jacket reduces toxic gases in case of fire and the supplied measurement protocol documents cable performance.

Suitable for

• Data centre patch panels and short multimode links
• Local area network (LAN) backbone connections
• Interconnecting switches, transceivers and servers
• Telecommunications equipment racks and wall-mounted panels

Key specifications

• Brand: EQUIP
• Length: 1.0 m
• Fibre type: OM1 multimode
• Core/cladding: 62.5/125 µm
• Connector types: LC to SC
• Connector ferrule: ceramic
• Cable jacket: Low Smoke Zero Halogen (LSZH)
• Cable standard: I-VH 2 x 1G (multimode)
• Compliance: REACH
• Packaging: each cable packed with measurement protocol

How to use

Ensure both equipment ports and connectors are clean before insertion to maintain low loss. Plug the LC connector into the corresponding LC port and the SC connector into the SC port, observing correct polarity for full-duplex links. Route the cable without sharp bends and secure it to avoid strain on the connector ends. Use the supplied measurement protocol to verify link performance after installation.

Recommendations

For best performance, use this OM1 62.5/125 µm multimode cable for short-reach multimode links (typical within buildings or data-centre patching). Avoid exceeding the manufacturer's minimum bend radius and keep connectors capped when not connected to prevent contamination.
