Equip LC/SC LWL patch kábel, OS2, 1,0 m

Equip LC/SC LWL patch kábel, OS2, 1,0 m
Equip LC/SC LWL patch kábel, OS2, 1,0 m
22,97 €
PDF
PDF
Sklad 18 Kód 112769 Model 254331 Záruka 2 roky

Doprava a vrátenie tovaru

Predpokladané doručenie piatok 11. decembra
O stave zásielky Vás budeme priebežne informovať prostredníctvom nášho podrobného systému sledovania zásielok
Možnosti platby
Platobná kartaVisaMastercardPayPalApple PayGoogle PayBankový prevod

Položte otázku – AI asistent odpovie hneď.

Popis

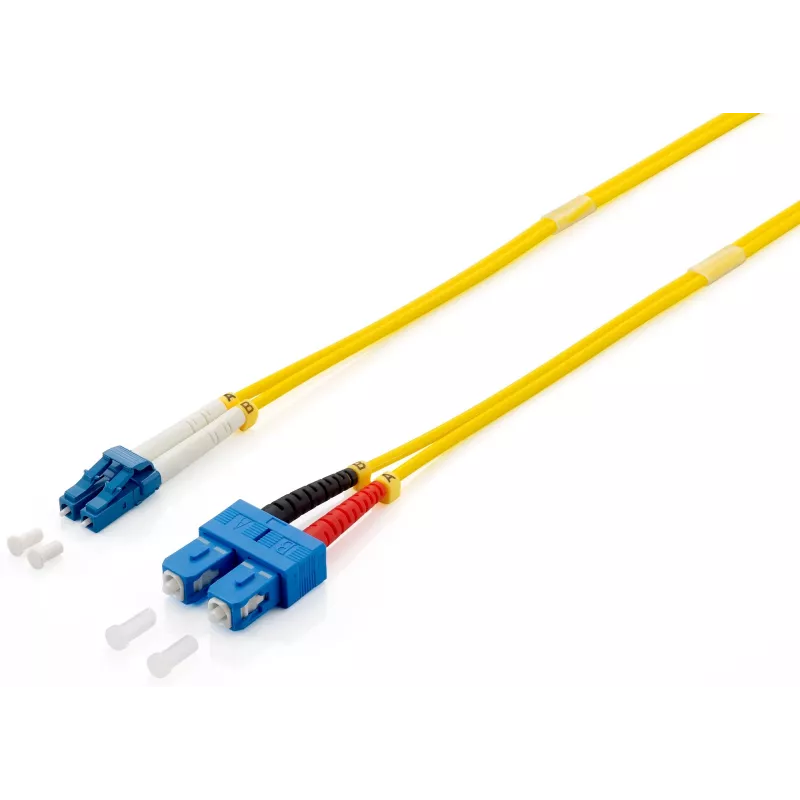

The Equip LC/SC Optical Fiber Patch Cord is a 1.0 m OS2 single-mode cable with a 9 µm core diameter designed for reliable high-speed data transmission. It features LC and SC connectors on each end for easy connection between networking equipment. The cable construction and connector end-face geometry are optimized to minimize return loss and insertion loss, making this patch cord suitable for data centers, telecommunications and other structured cabling installations.

Advantages

This Optical Fiber Patch Cord offers low return loss and low insertion loss due to precise connector end-face geometry and quality materials. The availability of LC and SC connector types allows compatibility with a wide range of network ports. The 1.0 m length provides convenient patching in rack and cabinet environments while maintaining signal integrity for full duplex communication.

Suitable for

  • Connecting switches, transceivers and patch panels in data centres
  • Telecommunications links and carrier networks
  • Server rooms and structured cabling installations
  • Fiber optic testing and temporary link setups

Key specifications

  • Brand: EQUIP
  • Model/MPN: 254331
  • EAN: 4015867175019
  • Type: Optical Fiber Patch Cord, single-mode (OS2)
  • Length: 1.0 m
  • Core diameter: 9 µm
  • Connectors: LC to SC
  • Transmission: Full duplex

How to use

Ensure both ends of the optical connectors are clean and free of dust or debris before connection. Align the LC and SC connectors with the appropriate ports and insert until they click or are secured. Route the patch cord to avoid sharp bends and excessive tension; maintain the minimum bend radius recommended for single-mode fiber. For disconnection, release any locking mechanism and gently withdraw the connector from the port.

Recommendations

Use a fiber inspection scope and approved cleaning tools to keep connector end-faces clean. Store unused patch cords with protective caps fitted to the connectors. Avoid stepping on or crushing the cable and do not exceed the specified bend radius to preserve performance.

Hlavné vlastnosti
  • Core diameter: 9/125μm
  • Single-mode, duplex
  • Connector: ceramic-ferrule
  • Cladding: low smoke and zero halogen
  • Cable spec: I-VH 2 x 1E
  • Cable jacket color: yellow
  • Each cable includes a measure protocol
  • OS2
  • 1 m
  • LC Male
  • SC Male
  • Jacket material: Low smoke zero halogen (LSZH)
  • Full duplex Single-mode
  • Yellow

Parametre

Parametre
Certifikáty zhody
REACH, RoHS
Dĺžka kábla
1 m
Farba produktu
Žltá
Hĺbka balenia
12 mm
Hmotnosť
22 g
Hmotnosť balenia
27 g
Kód harmonizovaného systému (HS)
85447000
Konektor 1
LC
Konektor 2
SC
Materiál plášťa
Nízka dymivosť, bezhalogénový (LSZH)
Plný duplex
Áno
Pohlavie konektora 1
Samec
Pohlavie konektora 2
Samec
Prevádzková teplota (T-T)
-20 - 70 °C
Priemer jadra
9 µm
Priemer plášťa
125 µm
Šírka balenia
275 mm
Štruktúra vláknového režimu
Jednovidový
Teplota skladovania (T-T)
-40 - 80 °C
Typ optického vlákna
OS2
Vložný útlm
0.3 dB
Výška balenia
175 mm
