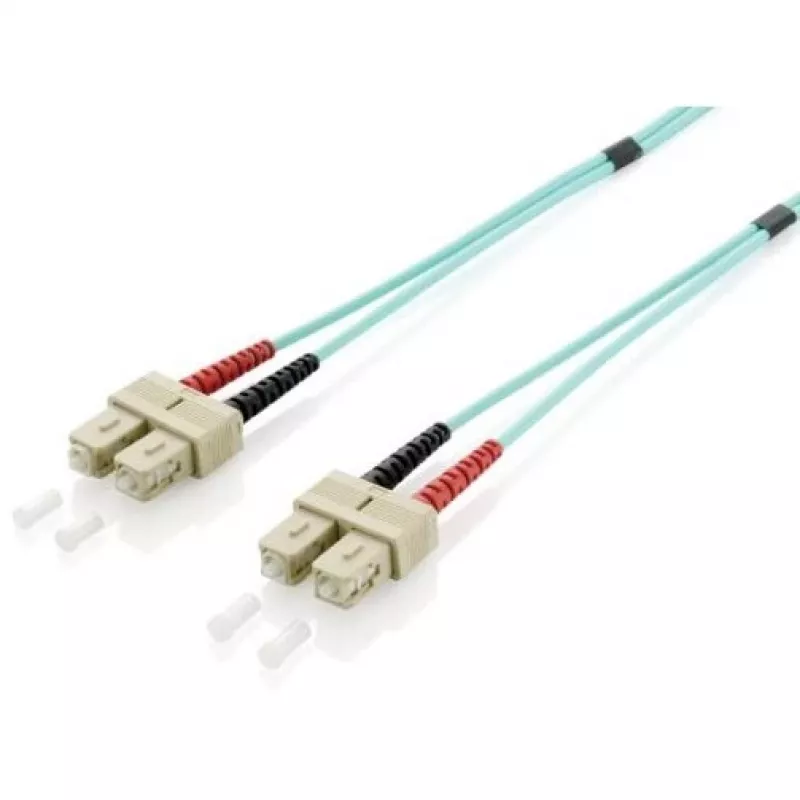

Equip optický patch kábel SC/SC duplex OM3 2,0m tyrkysový

The Equip Fiber Optic Patch Cable SC/SC Duplex OM3 2.0m Turquoise is a high-performance multimode fiber optic cable designed for reliable data transmission in enterprise networks, data centers, and telecommunications applications. With OM3 laser-optimized fiber, it supports 10 Gigabit Ethernet over distances up to 300 meters, ensuring fast and stable connectivity.

Advantages

This cable offers low insertion loss and high return loss, minimizing signal degradation and ensuring optimal performance. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces by reducing toxic fumes and smoke in case of fire. The turquoise color allows for easy identification and cable management.

Suitable for

• Connecting network switches, routers, and servers in data centers
• Fiber-to-the-desk (FTTD) installations
• High-speed backbone cabling for enterprise networks
• Telecommunications and broadcast applications

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Standard: OM3
• Connector Type 1: SC
• Connector Type 2: SC
• Connector Configuration: SC/SC Duplex
• Cable Length: 2.0 meters
• Number of Fibers: 2
• Jacket Color: Turquoise
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 2.0 mm
• Wavelength Support: 850nm / 1300nm
• Insertion Loss (Typical): < 0.3 dB
• Return Loss (Typical): > 30 dB
• Attenuation at 850nm: 3.5 dB/km
• Attenuation at 1300nm: 1.5 dB/km
• Polarity: A-B
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. Use appropriate cable management to avoid bending beyond the minimum bend radius. This cable is ideal for high-speed data transmission in structured cabling systems.
