Equip Pro Mount 19" rozvádzač, 12U, 600X450MM, RAL7035 sivá

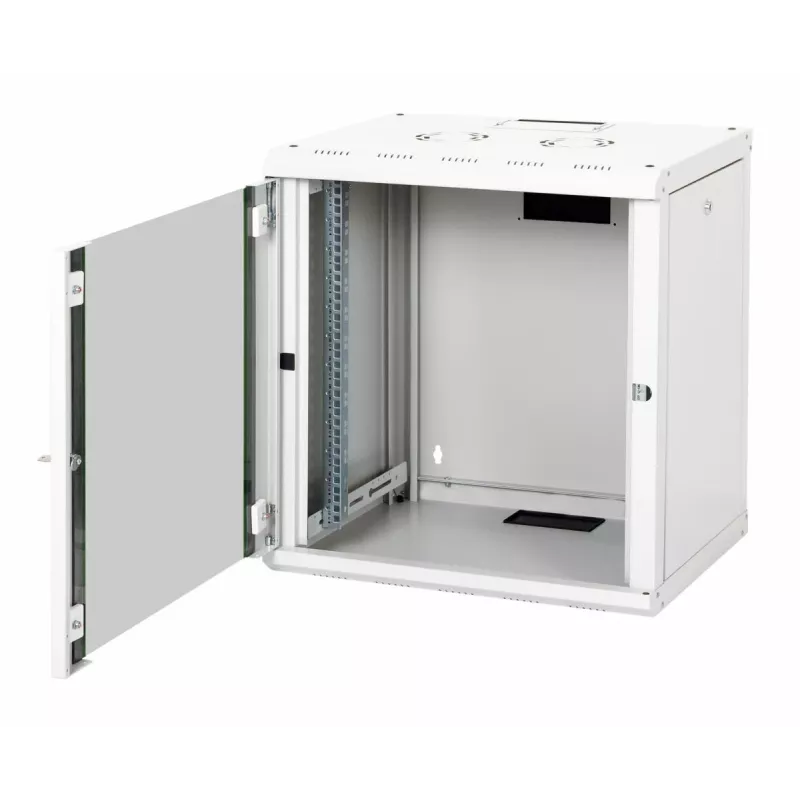

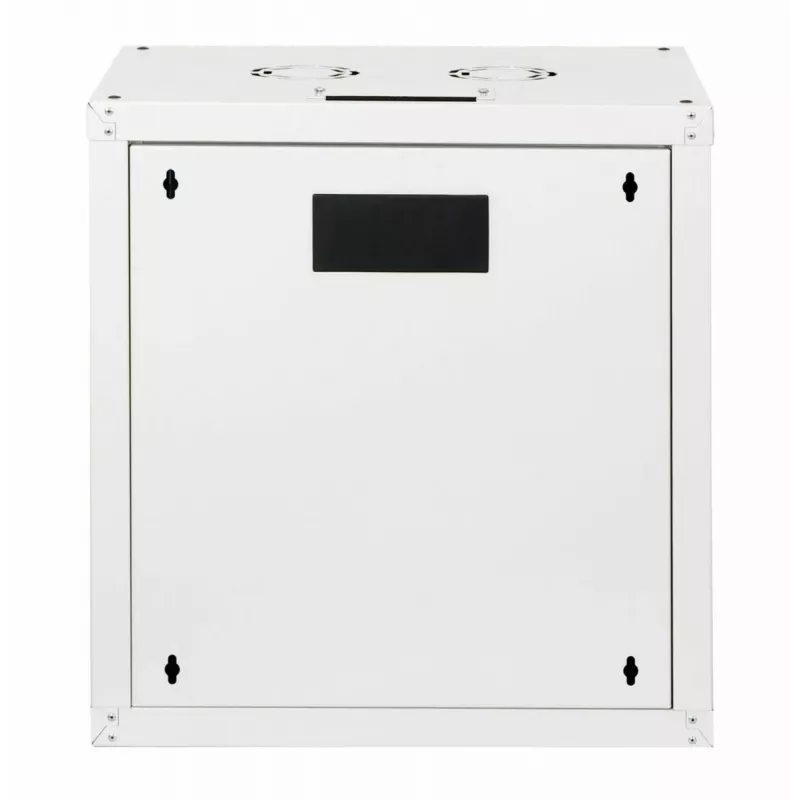

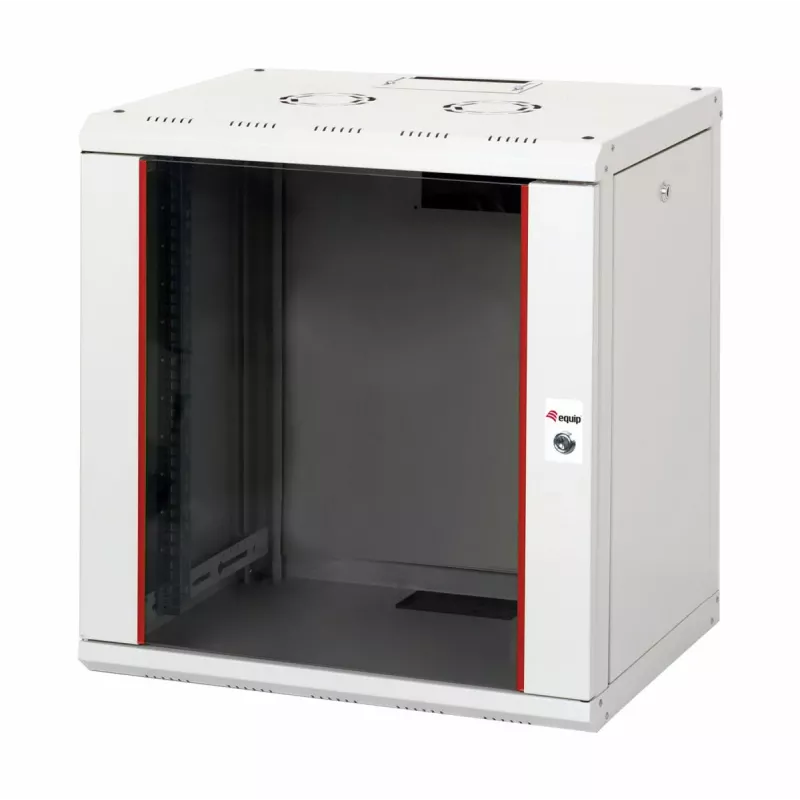

The Equip Pro Mount EPM-12-6045-G-CBAA is a 12U wall-mounted 19" cabinet designed to house active and passive network components while providing organised cable routing and secure installation. Constructed from steel sheets up to 1.5 mm thick and finished in light grey (RAL 7035), the cabinet includes pre-mounted 483 mm (19") profile rails, adjustable depth settings and a ventilated roof for improved air circulation. The unit weighs 22.5 kg and offers a key lock for basic physical security.

Advantages

This wall-mounted rack combines robust steel construction and a powder-coated finish for durability, adjustable galvanized 19" rails with height unit markings readable from both directions, and simplified wall-mounting hardware. The design supports reversible doors and removable side panels for convenient access, plus integrated ventilation slots and multiple cable entry solutions to maintain orderly cabling and airflow.

Suitable for

• Small server rooms and network closets
• Branch offices and retail locations
• Telecom and network equipment mounting (switches, patch panels, routers)
• Environments requiring secure, space-saving equipment installation

Key specifications

• Rack capacity: 12U
• External dimensions (H×W×D): 640 × 450 × 600 mm
• Maximum mounting depth: 370 mm
• Weight: 22.5 kg
• Profile rails: two pre-mounted 483 mm (19") galvanized rails, depth adjustable, with height markings
• Material: steel sheets up to 1.5 mm
• Finish colour: Light grey (RAL 7035)
• Security: key lock on the door

How to use

Secure the cabinet to a suitable wall structure using appropriate fasteners for the wall material and the cabinet’s weight. Install equipment on the pre-mounted 19" rails, adjusting rail depth to fit devices with the specified mounting depth (max 370 mm). Use the removable side panels and reversible door to access installed components during configuration or maintenance. Route cables through the sliding roof cable entry with rubber seal, rear and base punched entries, or through rear frame brushes to maintain tidy cabling and reduce dust ingress.

Recommendations

Mount on load-bearing walls and verify fasteners’ load capacity. Allow clearance for ventilation at the roof and rear; avoid blocking ventilation slots. Choose compatible accessories (shelves, cable management) when installing non-rack-mountable equipment or heavy devices to ensure stable mounting and proper airflow.
