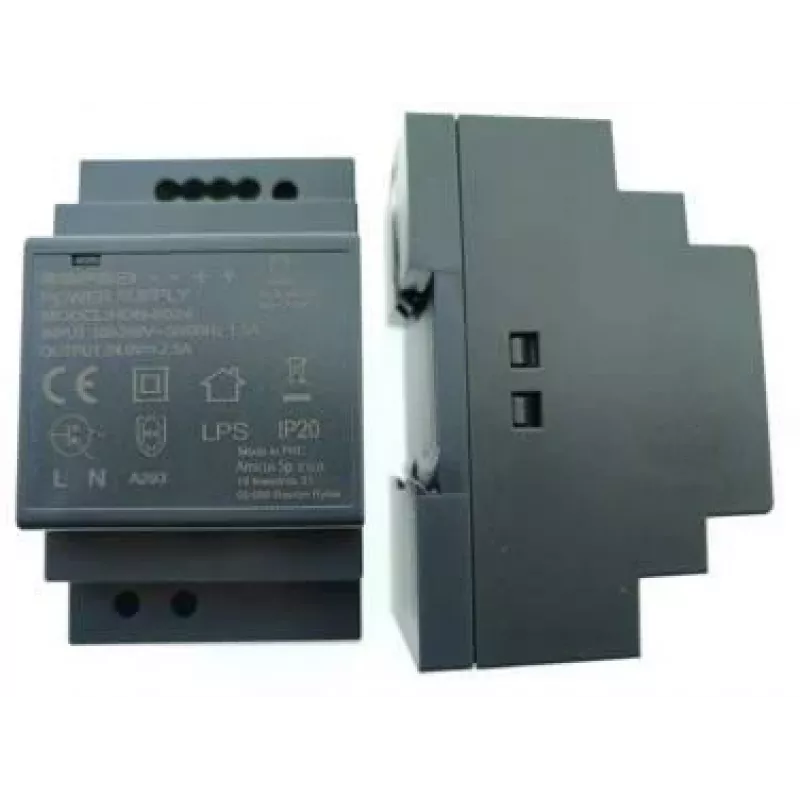

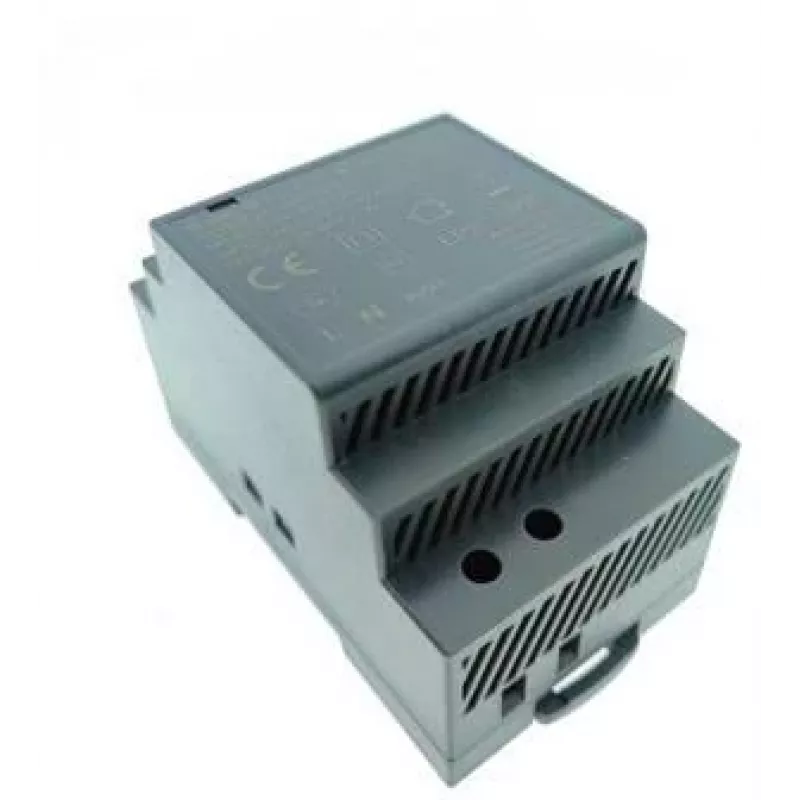

ESPE HDN-10024 napájací zdroj na DIN lištu 24V 100W 3,8A

The ESPE HDN-10024 is a high-performance DIN rail switching power supply designed for industrial automation and control systems. It delivers a stable 24V DC output with 100W power and 3.8A current, ensuring reliable operation for a wide range of applications. With universal AC input and built-in protections, this power supply is ideal for demanding environments.

Advantages

Compact design for space-saving installation on DIN rails. High efficiency of 88% reduces energy loss and heat generation. Comprehensive protection features safeguard connected equipment. Wide operating temperature range from -20°C to +70°C ensures performance in harsh conditions.

Suitable for

• Industrial control panels
• Automation systems
• PLC and sensor power supply
• Security and access control systems

Key specifications

• Input: 85-264V AC or 120-370V DC
• Output: 24V DC, 3.8A, 100W
• Adjustable output voltage: 21.6-26.4V DC
• Ripple & noise: <150mVp-p
• Protections: Overload, Overvoltage, Short Circuit
• Cooling: Free air convection
• MTBF: >300,000 hours
• Safety standards: EN60950-1, EN62368-1
• EMC standards: EN55032 Class B, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11

Recommendations

For optimal performance, ensure proper ventilation and avoid exceeding the derating temperature of 50°C. Use appropriate screw terminals for secure connections.
