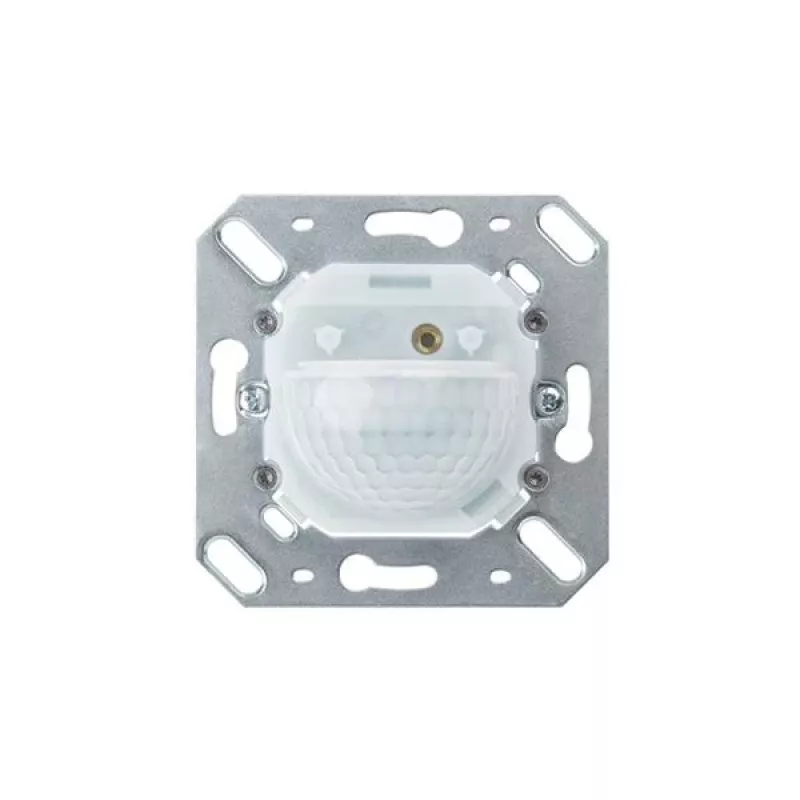

ESYLUX ESY MD 180i/16 Basic biela nástenný pohybový snímač 180° so vstupom na tlačidlo

The ESYLUX ESY MD 180i/16 Basic is a high-quality wall-mounted passive infrared (PIR) motion detector designed for reliable presence detection in indoor and outdoor areas. With a 180° detection angle and a 16 m tangential range, it is ideal for corridors, stairwells, and building entrances. The device features a push-button input for manual override or connection to a remote switch, and it offers adjustable time and twilight settings for flexible automation.

Advantages

Energy-efficient LED-compatible switching up to 600 W, low standby power consumption of only 0.5 W, and robust IP54 protection against dust and water splashes ensure long-lasting performance. The mixed light measurement prevents false triggering from artificial light sources.

Suitable for

• Indoor and outdoor wall mounting
• Corridors, stairwells, entrances, and passageways
• Automatic lighting control in residential and commercial buildings

Key specifications

• Detection angle: 180°
• Detection range (tangential): 16 m
• Recommended installation height: 0.8 - 1.2 m
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity (resistive): 2300 W / 10 A
• Switching capacity (LED): 600 W
• Time setting range: 10 s - 30 min
• Twilight setting range: 5 - 2000 Lux
• IP rating: IP54
• Colour: White (RAL 9010)
• Mounting type: Wall-mounted
• Push-button input: Yes
• Ambient temperature: -25 °C to +50 °C
• Standby power consumption: approx. 0.5 W
• Control channels: 1 (Light)
• Light measurement: Mixed light
• Protection class: II

Recommendations

For optimal performance, install at the recommended height and avoid obstructions in the detection field. Use the push-button input for convenient manual control or integration with a remote switch.
