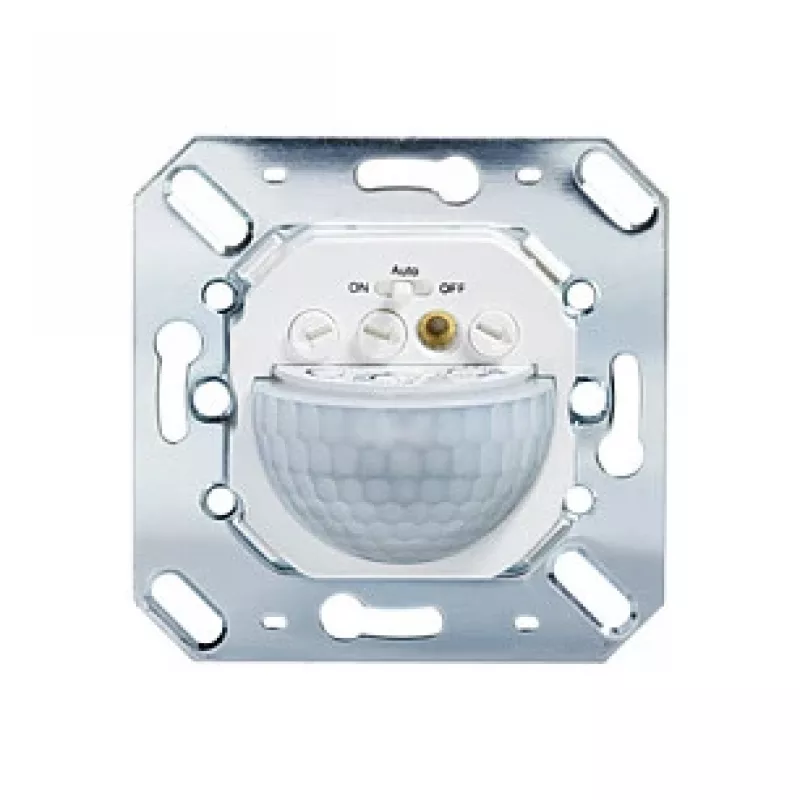

ESYLUX MD 180i/R pasívny infračervený pohybový senzor 16 m biely

The ESYLUX MD 180i/R is a high-quality passive infrared (PIR) motion detector designed for wall mounting. With a detection range of 16 meters and a 180° detection angle, it is ideal for indoor lighting control in corridors, stairwells, and large rooms. The device features an adjustable light sensor (5-2000 lux) and time delay (10s-60min), ensuring energy-efficient operation. Its sleek white design and UV-stabilised polycarbonate housing make it durable and discreet.

Advantages

Energy-saving automatic lighting control with adjustable settings. Reliable PIR technology with a wide detection area. Easy flush-mount installation at 1.1m height. Low standby power consumption (<0.5W). Suitable for LED loads up to 300W.

Suitable for

• Indoor lighting control in offices, schools, and public buildings
• Corridors, stairwells, and entrance areas
• Warehouses and storage rooms
• Any room requiring automatic on/off lighting

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 180°
• Detection range (motion): 16m diameter
• Detection range (presence): 8m diameter
• Mounting type: Wall (flush-mounted)
• Recommended mounting height: 1.1m
• Light sensor range: 5-2000 lux (adjustable)
• Time delay: 10s-60min (adjustable)
• Supply voltage: 230V AC, 50Hz
• Switching capacity: 2300W (incandescent/halogen), 300W (LED)
• Standby power: <0.5W
• IP rating: IP20
• Operating temperature: -25°C to +50°C
• Colour: White
• Material: UV-stabilised polycarbonate

Recommendations

For optimal performance, mount the detector at the recommended height of 1.1m and avoid obstructions in the detection field. Adjust the light sensor and time delay according to the specific room requirements.
