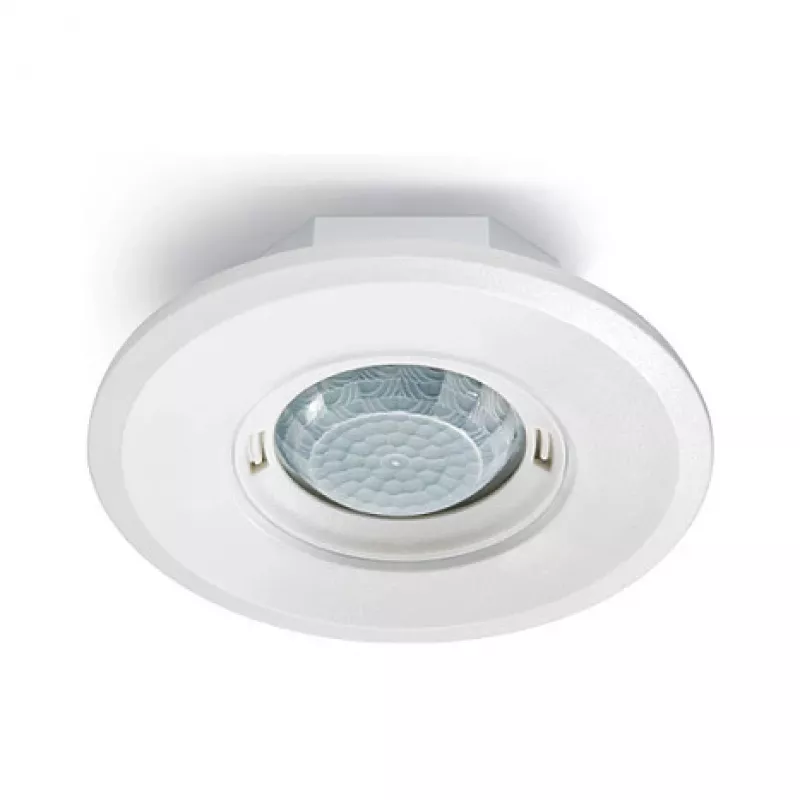

ESYLUX PD-FLAT 360i/8 snímač prítomnosti - káblový - 8 m - strop/stena - biela - IP20 - 360°

The ESYLUX PD-FLAT 360i/8 is a high-quality presence detector designed for automatic lighting control in commercial and residential spaces. With a 360° detection angle and an 8 m diameter range (at 2.5 m mounting height), it ensures reliable presence detection. The detector features passive infrared (PIR) technology and is suitable for ceiling or wall mounting. Its sleek white design (RAL 9010) blends seamlessly into any environment.

Advantages

Energy-efficient automatic lighting control reduces electricity costs. Simple wired installation with 3-wire connection. Adjustable time delay (10 s to 60 min) and light sensor (5-2000 lux) for customized operation. UV-stabilised polycarbonate housing ensures durability. Protection class II and IP20 rating for indoor use.

Suitable for

• Office spaces
• Conference rooms
• Corridors and stairwells
• Storage rooms
• Residential areas

Key specifications

• Product Type: Presence Detector
• Detection Technology: Passive Infrared (PIR)
• Detection Angle: 360°
• Detection Range: 8 m (diameter at 2.5 m height)
• Mounting Type: Ceiling, Wall
• Optimal Mounting Height: 2.5 m
• Operating Voltage: 230 V AC, 50 Hz
• Max. Switching Power (Resistive): 2300 W
• Max. Switching Power (Inductive): 1150 VA (cos φ = 0.5)
• Light Sensor Range: 5 - 2000 Lux
• Time Delay: 10 s - 60 min
• IP Rating: IP20
• Protection Class: II
• Ambient Temperature: -25 °C to +50 °C
• Colour: White (RAL 9010)
• Standby Power: Approx. 0.5 W
• Output Channels: 1 (Light)
• Control Mode: Fully automatic
• Material: UV-stabilised polycarbonate
• Connection Type: Wired (3-wire)

Recommendations

For optimal performance, mount at 2.5 m height. Ensure the detection area is free from obstructions. Suitable for indoor use only.
