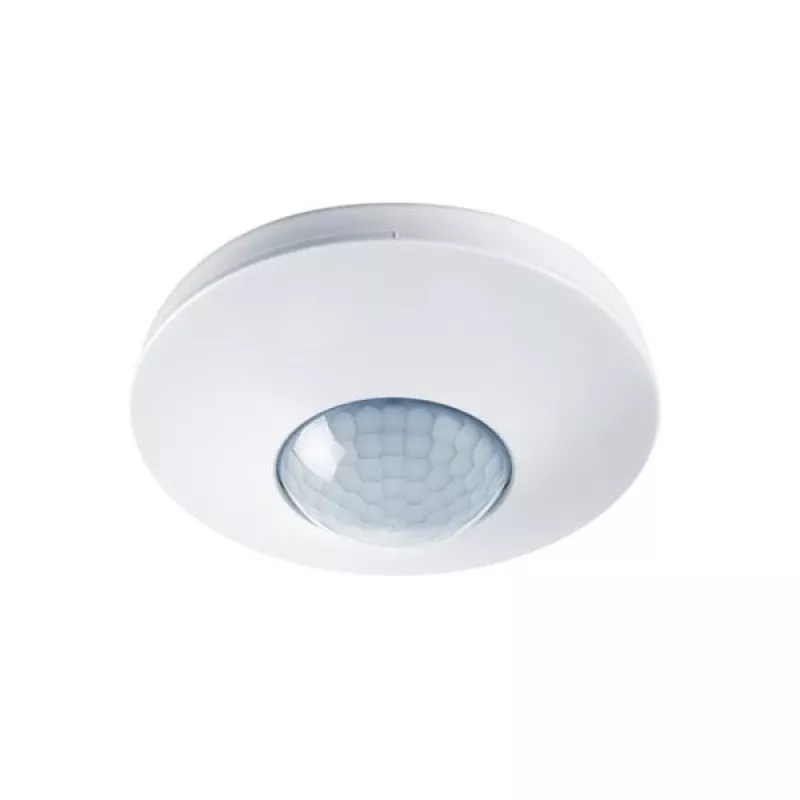

ESYLUX prítomnostný senzor PD-C360i/8 UC, 360° PIR, 8 m, stropná montáž, biely

The ESYLUX PD-C360i/8 UC is a high-quality passive infrared (PIR) presence detector designed for automatic lighting control in indoor environments. With a 360° detection angle and an 8-meter diameter range (at 3 m mounting height), it reliably detects movement in offices, meeting rooms, classrooms, and corridors. The detector is flush-mounted in the ceiling and features a relay output for switching lighting loads up to 2300 W (resistive) or 600 W (LED). Its adjustable time delay (60 sec to 15 min) and light sensor (5-2000 lux) allow flexible adaptation to user needs. The device operates on 110-240 V AC and consumes only 0.5 W in standby. The housing is made of UV-stabilised polycarbonate in white (RAL 9010), with IP20 protection rating.

Advantages

Energy-efficient presence detection with precise 360° coverage; easy flush-mount installation; adjustable time and light settings; low standby power consumption; robust and durable material.

Suitable for

• Offices and meeting rooms
• Classrooms and lecture halls
• Corridors and stairwells
• Open-plan areas

Key specifications

• Sensor: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range: 8 m diameter (at 3 m height)
• Mounting: Ceiling, flush-mounted
• Operating voltage: 110-240 V AC, 50/60 Hz
• Max. switching capacity (resistive): 2300 W / 10 A
• Max. switching capacity (LED): 600 W
• Time delay: 60 sec - 15 min
• Light sensor range: 5 - 2000 lux
• Protection rating: IP20
• Ambient temperature: -25 °C to +50 °C
• Colour: White (RAL 9010)
• Standby power: approx. 0.5 W
• Installation depth: approx. 24 mm
• Housing material: UV-stabilised polycarbonate

Recommendations

For optimal performance, mount at a height of 3 m. Ensure the sensor has a clear view of the area to be monitored. Suitable for use with LED, fluorescent, and incandescent loads.
