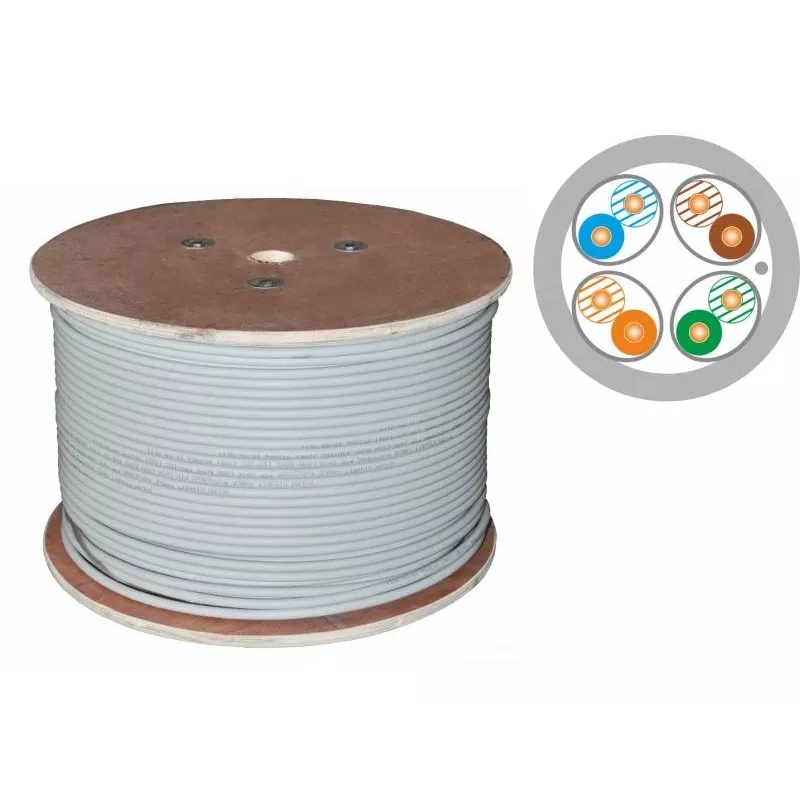

Ethernet kábel Alantec KIF6ALSOH500D Cat6a U/FTP 23 AWG LSOH 500 m 10 Gbit/s

The Alantec KIF6ALSOH500D is a 500 m Cat6A U/FTP networking cable designed for high-speed data transmission and compliance with international cabling standards. Manufactured and tested to ISO/IEC 11801 2nd Edition, EN 50173:2007 and ANSI/TIA/EIA-568-B.2, the cable is verified by INTERTEK and supports data rates up to 10,000 Mbit/s and transmission frequencies up to 550 MHz. Its LSOH jacket and colour options allow identification by department or application.

Advantages

The cable features eight colour-coded polyethylene insulated conductors twisted into four pairs with varying lay lengths, U/FTP shielding for reduced interference and a strong nylon rip cord under an LSOH (low smoke zero halogen) jacket. Sheath printing includes the part number, specification details and a unique 500 m marking for quick measurement of installed length and remaining cable on the roll. The cable supports Power over Ethernet (PoE).

Suitable for

• High-speed Ethernet installations (10 Gbps) in offices and data centres
• Structured cabling meeting Cat6A performance requirements
• Environments requiring reduced smoke and halogen emissions
• PoE-powered devices such as IP phones, cameras and access points

Key specifications

• Length: 500 m
• Category: Cat6A
• Topology/Shielding: U/FTP (overall unshielded, individually foil-shielded pairs)
• Maximum data rate: 10,000 Mbit/s
• Verified frequency: up to 550 MHz
• Standards: ISO/IEC 11801 2nd Edition, EN 50173:2007, ANSI/TIA/EIA-568-B.2
• Manufacturer verification: INTERTEK
• Jacket: LSOH (low smoke zero halogen)
• MPN: KIF6ALSOH500D
• EAN: 5901738557413

How to use

Measure and cut the required length using the 500 m markings on the sheath to determine installed length and remaining cable. Strip the outer LSOH jacket and unwind the nylon rip cord to access the four individually shielded pairs. Terminate each pair according to Cat6A wiring standards and follow recommended shielding grounding practices if required by the installation. Use appropriate cable management and bend-radius precautions during routing to maintain performance.

Recommendations

Install in accordance with local cabling guidelines and the referenced standards. Maintain correct bend radius, avoid excessive pulling force, and ensure proper termination and grounding where shielding continuity is required. For PoE applications, verify device power requirements against cable and power supply capabilities.
