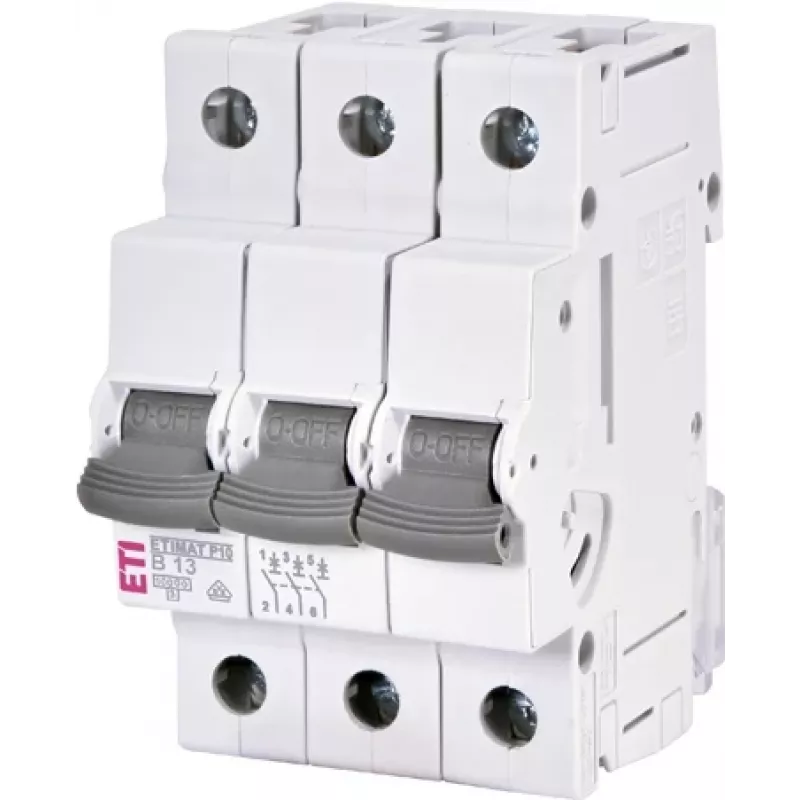

ETI ETIMAT P10 3-pólový 13A B-charakteristika miniatúrny istič 415V 10kA 001901309

Electrical circuits need reliable protection against overload and short-circuit currents. The ETI ETIMAT P10 3-pole miniature circuit breaker with B tripping characteristic and 13 A rated current safeguards cables and connected equipment in residential and commercial installations. It interrupts fault currents quickly, preventing damage to wiring and reducing fire risk.

Who is it for

Electricians and panel builders who install or maintain distribution boards in buildings with standard inrush currents. The B-curve is suited for circuits with resistive loads such as lighting and socket outlets, where moderate surge currents occur.

Main features

• 3-pole switching for three-phase circuits
• B tripping characteristic, 13 A rated current
• Rated voltage 415 V AC, 50/60 Hz
• Short-circuit breaking capacity 10 kA according to EN 60898-1
• DIN rail mounting with screw terminals
• Energy limiting class 3

Specifications

• Series: ETIMAT P10
• Number of poles: 3
• Tripping characteristic: B
• Rated current: 13 A
• Rated voltage: 415 V AC
• Frequency: 50/60 Hz
• Rated short-circuit breaking capacity (Icn): 10 kA
• Mounting type: DIN rail
• Terminal type: Screw terminals
• Standard: EN 60898-1
• Energy limiting class: 3
• Connection capacity solid wire: 1 - 25 mm²
• Connection capacity flexible wire: 1 - 16 mm²
• Degree of protection: IP20
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Operating temperature range: -25°C to +55°C
• Rated impulse withstand voltage (Uimp): 4 kV
• Rated insulation voltage (Ui): 500 V

Tips

Select the tripping characteristic based on the load type. B-curve is suitable for resistive loads; for motors or transformers with higher inrush currents, consider C or D curves. Ensure the upstream protection coordination is verified for the installation.
