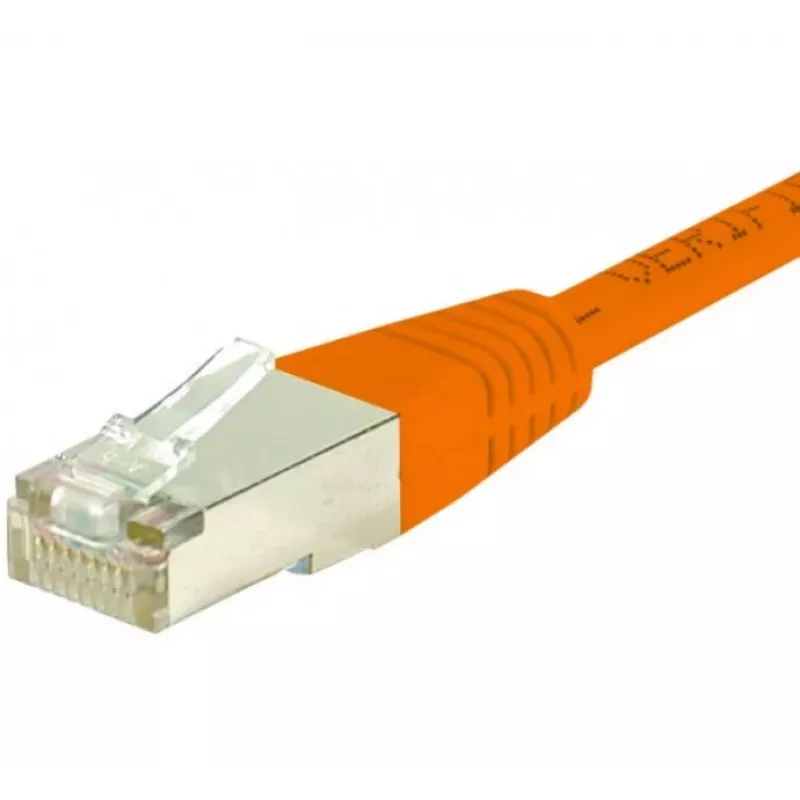

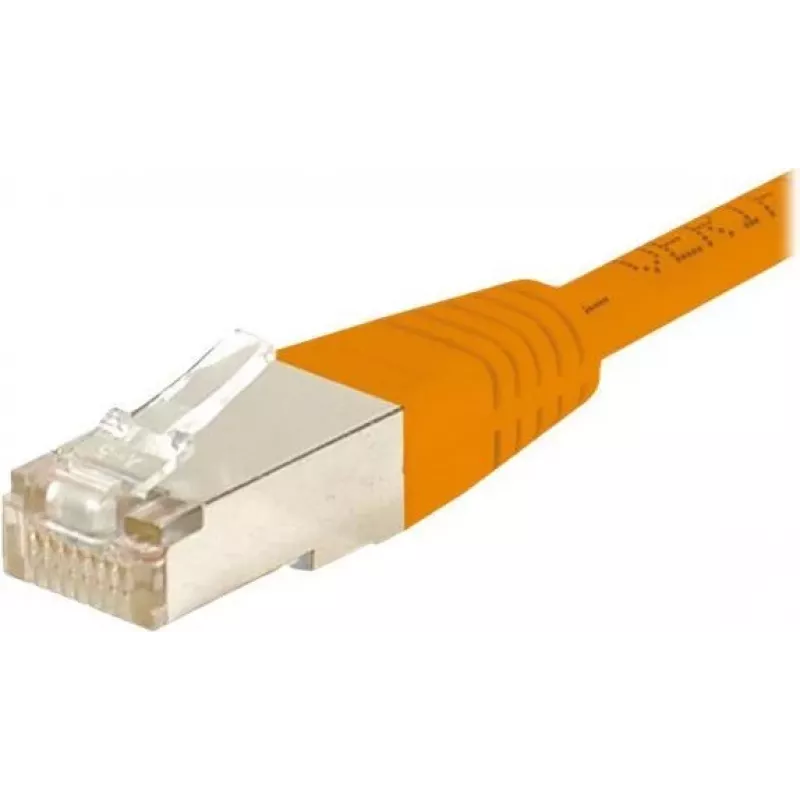

EXERTIS CONNECT Cat.6 S/FTP patch kábel, 20 m, oranžový, Slimline ochrana proti zlomeniu 854474

Stable gigabit links over long runs demand a cable that rejects crosstalk and keeps its shape at the connector. This 20 m Cat.6 patch cable with S/FTP shielding and slimline bend protection delivers exactly that for structured cabling and device connections.

Who is it for

Network installers and IT administrators who need a dependable, halogen-free patch lead for longer horizontal runs in offices, server rooms, or industrial environments.

Main features

• S/FTP (PiMF) shielding: each pair is foiled and the bundle is braided, providing excellent protection against alien crosstalk.
• Cat.6 performance: supports frequencies up to 250 MHz and 1 Gigabit Ethernet.
• Slimline bend protection: extra-narrow boot reduces strain at the connector, ideal for high-density patch panels.
• LSZH jacket: low smoke zero halogen, safer for indoor use.
• Gold-plated RJ45 connectors ensure reliable contact over many mating cycles.

Specifications

• Cable length: 20 m
• Colour: Orange
• Cable standard: Cat.6
• Cable shielding: S/FTP (PiMF)
• Connector type: RJ45 male to RJ45 male
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 27/7 (stranded)
• Jacket material: LSZH (halogen-free)
• Wiring standard: TIA/EIA 568B
• Bandwidth: up to 250 MHz
• Data transfer rate: 1 Gbps
• Connector plating: gold-plated (50 µm)
• Halogen free: Yes
• Flame retardant: Yes
• Operating temperature: -20°C to 60°C

Tips

When routing this cable, avoid sharp bends near the connector; the slimline boot helps but a gentle curve preserves signal integrity. Use with Cat.6 patch panels and keystone jacks for a fully compliant channel.
