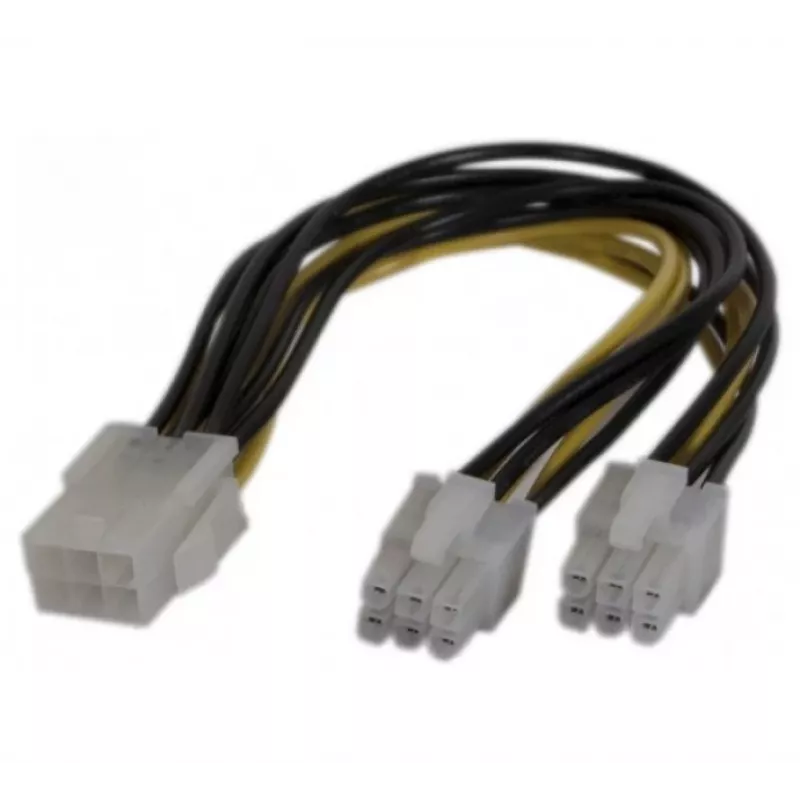

EXERTIS CONNECT PCI Express napájací adaptérový kábel 6-Pin na 2x 6-Pin (146694)

When a modular power supply lacks enough 6-pin PCIe outputs for a second graphics card, this adapter splits one 6-pin PCIe power connector into two, enabling dual-GPU setups or powering multiple PCIe devices from a single rail. The 15 cm cable is ideal for compact builds and test benches where cable clutter must be minimized.

Key specifications

• Input: 1x PCI Express 6-pin male
• Output: 2x PCI Express 6-pin female
• Cable length: 15 cm
• Wire gauge: 18 AWG
• Conductor material: Copper
• Jacket material: PVC
• Colour: Black and yellow
• Max power per output: 75 W
• Input/output voltage: 12 V DC

Why choose it

This adapter uses 18 AWG copper conductors and PVC insulation, matching the standard for PCIe power cables. The 6-pin connectors are compatible with ATX power supplies and graphics cards that follow the PCIe specification. The 15 cm length keeps cable runs short, reducing voltage drop and improving airflow in tight cases.

Ideal use cases

• Adding a second graphics card to a system with limited PCIe power connectors
• Powering PCIe riser cards or mining rigs from a single 6-pin output
• Bench testing multiple GPUs without swapping cables

Good to know

The adapter is RoHS compliant. Each 6-pin output delivers up to 75 W, so ensure the total load does not exceed the power supply's capacity on that rail.
