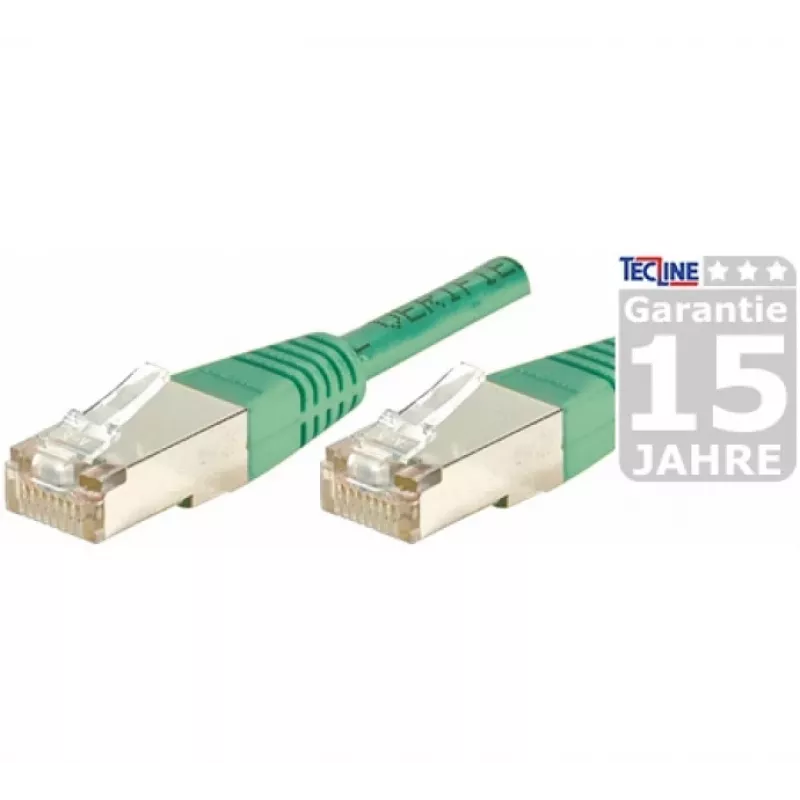

EXERTIS CONNECT S/FTP CAT.6 patch kábel, PiMF, zelený, 10,0 m, Slim Snagless 856893

This EXERTIS CONNECT patch cable stands out with its slim snagless boot design, which makes it easier to route in dense patch panels and cable management arms without the connector latch catching on adjacent cables. The S/FTP shielding with individual pair foils (PiMF) provides excellent protection against alien crosstalk, making it suitable for high-density 1 Gigabit Ethernet installations.

Highlights

• S/FTP shielding with PiMF (pairs in metal foil) for superior noise immunity
• Slim snagless boot protects the locking tab and allows easy insertion/removal in tight spaces
• Gold-plated RJ45 connectors (50µ) ensure reliable contacts and corrosion resistance
• LSZH jacket reduces toxic smoke and corrosive gases in case of fire
• Supports Power over Ethernet (PoE and PoE+) for powering devices like IP cameras and access points

In daily use

With a length of 10 meters, this green CAT.6 cable is ideal for connecting devices across a room or between adjacent rooms. The stranded copper conductors (AWG 27/7) provide flexibility for frequent re-routing, while the straight-through TIA/EIA 568B wiring ensures compatibility with all standard Ethernet equipment. The cable meets CPR class Eca for fire safety in building installations.

Full specifications

• Cable type: Ethernet Patch Cable
• Category: CAT.6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Inner shielding: PiMF (Pairs in Metal Foil)
• Length: 10.0 m
• Colour: Green
• Connector type: RJ45 Male to RJ45 Male
• Connector plating: Gold-plated (50µ)
• Boot type: Slim Snagless
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 27/7
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Bandwidth: Up to 250 MHz
• Data transfer rate: Up to 1000 Mbps (1 Gigabit Ethernet)
• Wiring standard: TIA/EIA 568B
• Pinout: 1:1 Straight-through
• Number of pairs: 4
• Cable construction: Stranded
• PoE support: PoE, PoE+ (IEEE 802.3af/at)
• CPR class: Eca

Final note

The slim snagless design and robust shielding make this cable a reliable choice for professional network installations where space is limited and signal integrity is critical.
