EXSYS EX-1010 PCI Express na 4x PCI Bus rozširujúca skrinka

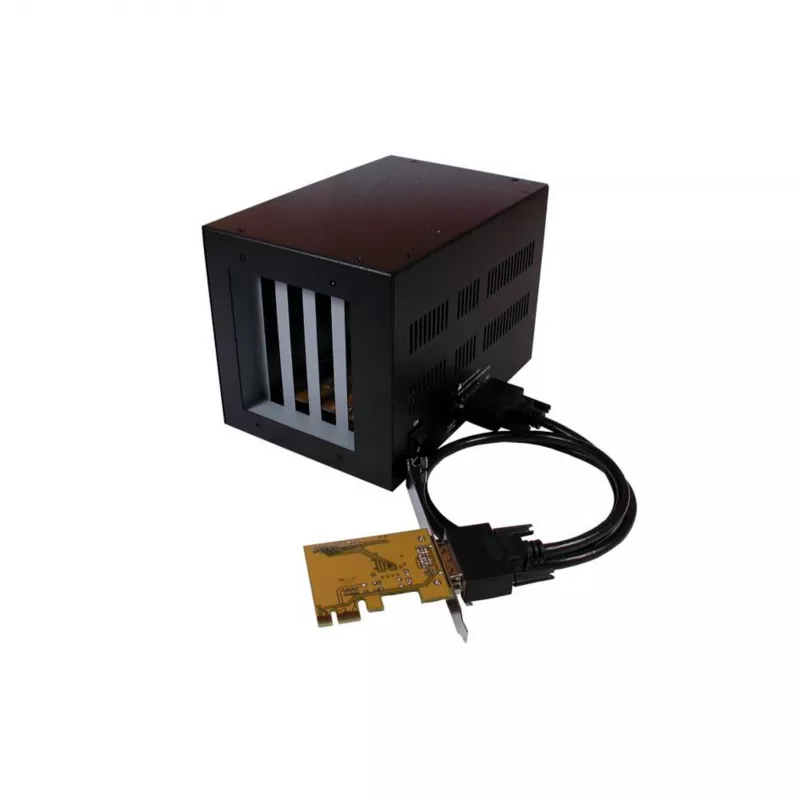

The EXSYS EX-1010 Expansion Box allows you to add up to four 32-bit PCI slots to your computer via a PCI Express x1 interface. Ideal for legacy PCI cards, this external enclosure provides a reliable and cost-effective solution for expanding system capabilities without replacing the motherboard.

Advantages

Easily connect legacy PCI cards to modern systems lacking native PCI slots. The external design reduces internal heat buildup and simplifies installation. With support for PCIe 1.0/2.0/3.0 and universal 3.3V/5V PCI slots, it offers broad compatibility.

Suitable for

• Industrial control systems requiring legacy PCI cards
• Data acquisition and measurement equipment
• Audio/video processing cards
• Testing and measurement setups

Key specifications

• Host Interface: PCI Express x1 (compatible with PCIe 1.0/2.0/3.0)
• PCI Slots: 4x 32-bit PCI (PCI 2.2/2.3 compatible, 3.3V/5V universal)
• Max PCI Card Length: Up to 170 mm
• Data Transfer Rate: Up to 133 MB/s (PCI bus)
• External Power Supply: 12V DC (AC adapter included, input 100-240V AC)
• PCIe Cable Length: 1.2 meters
• Enclosure Material: Steel / Aluminum
• LED Indicators: Power, PCI Activity
• Cooling: Passive (ventilation holes)
• Certifications: CE, FCC, RoHS

Recommendations

Ensure your system has an available PCI Express x1 slot (or larger) and that the operating system supports the bridge chipset (Windows 7/8/10/11, Windows Server, Linux). The enclosure is designed for desktop use; not hot-swappable.
