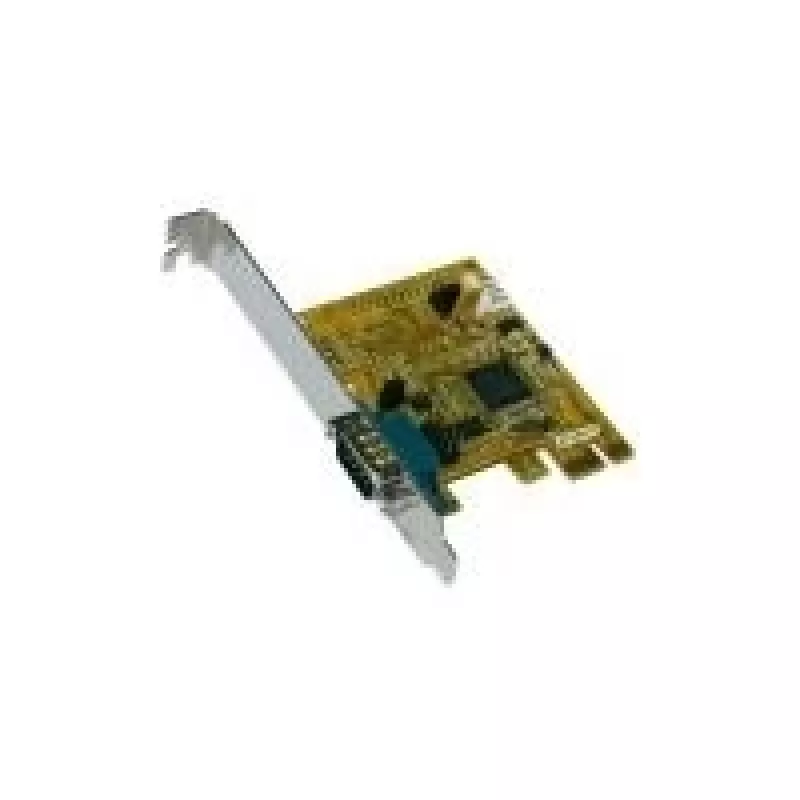

Exsys EX-44041-2 sériový adaptér - PCIe x16 - 2x RS-232 DB9 samec

The Exsys EX-44041-2 is a serial adapter card with a PCIe x16 interface, providing two RS-232 DB9 male ports. It features a MosChip MCS9901CV chipset and a 16C550 FIFO buffer with 16 bytes.

Key features

• PCIe x16 interface (compatible with PCIe x1 to x16 slots)
• 2x RS-232 DB9 male connectors
• MosChip MCS9901CV chipset
• 16C550 FIFO buffer with 16 bytes
• WHQL certified
• IRQ sharing supported

Specifications

• Interface: RS-232 V.24
• Data bits: 5, 6, 7, 8
• Stop bits: 1, 1.5, 2
• Parity: none, even, odd, space, mark
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• PCI-Express interface compatible with 1.0a specification
• Connectors: 1x 9-pin D-SUB serial male, 1x 10-pin connector for internal serial port, 1x 4-pin connector for PC power supply
• Drivers: DOS, 2000/XP (32 & 64), Vista (32 & 64), Win7 (32 & 64), CE (4.2 & 5.0), Server (2003 & 2008), Linux (2.4 & 2.6x)
• Dimensions: 65 x 70 mm
• Weight: 200 g
• Country of origin: Taiwan
