EXSYS M12 X-kódovaný 8-pin konektor samec na RJ45 konektor samica 90° priemyselný Ethernet adaptér, 10Gbps, IP67, tienený EX-49542

Handle 10 Gigabit Ethernet over rugged M12 connectivity with this EXSYS adapter, converting an 8-pin M12 X-coded male connector to a right-angle RJ45 female port.

Overview

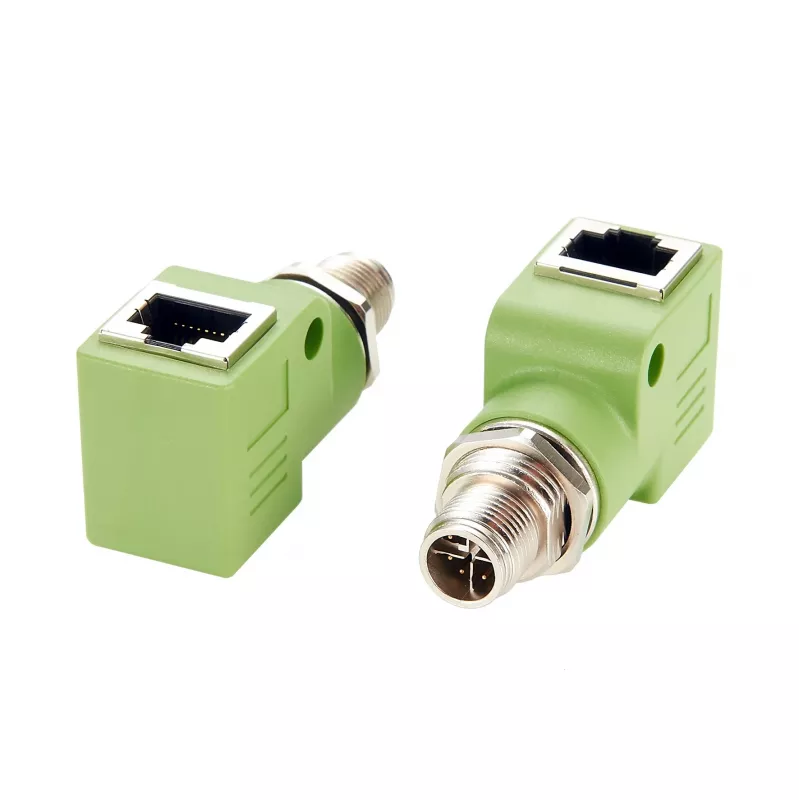

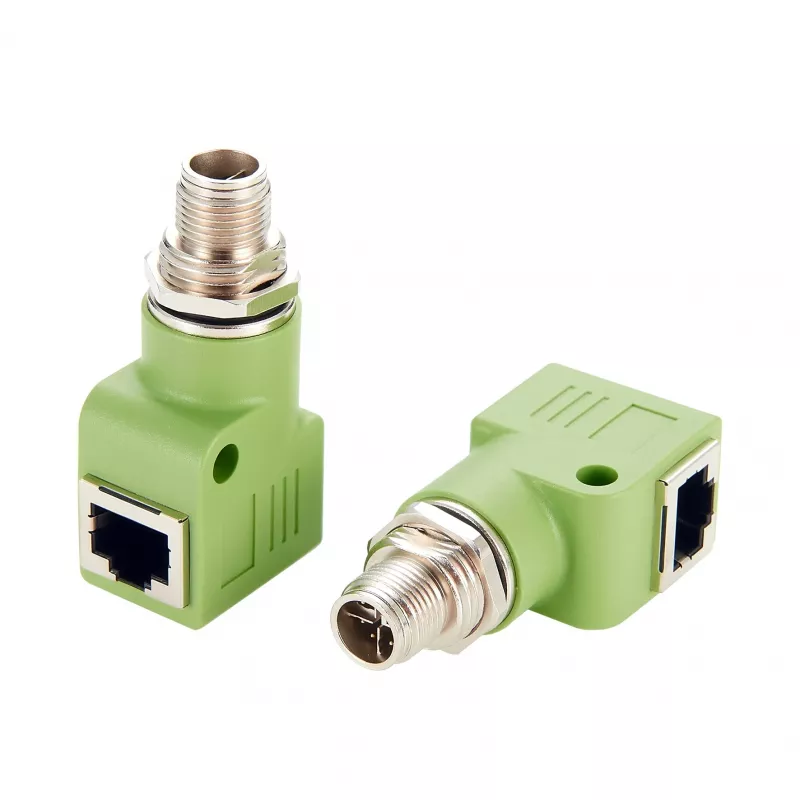

The EXSYS EX-49542 is a compact adapter designed for industrial Ethernet applications. It features an M12 X-coded 8-pin male connector on one end and a 90° angled RJ45 female jack on the other. The adapter supports data transfer rates up to 10 Gbps, making it suitable for high-speed industrial networks such as PROFINET and Fieldbus systems. Its shielded design ensures reliable signal integrity in electrically noisy environments, and the IP67 rating when mated provides protection against dust and water ingress.

What stands out

• M12 X-coded male to RJ45 female with 90° angle for tight spaces
• Supports 10GBASE-T for high-speed data transmission
• Shielded construction reduces electromagnetic interference
• IP67 protection when properly mated
• Robust nickel-plated brass and polyamide housing

Technical details

• Connector 1: M12 X-coded, male, 8-pin
• Connector 2: RJ45, female, 90° right-angle
• Data transfer rate: 10 Gbps
• Shielding: Shielded (FTP/STP compatible)
• IP rating: IP67 (when mated)
• Housing material: Nickel-plated brass / PA
• Operating temperature: -25°C to 85°C
• Standard compliance: IEC 61076-2-109
• PoE support: Yes
• Contact material: Gold-plated copper alloy
• Insulation resistance: >100 MΩ

Our verdict

The EXSYS EX-49542 is a reliable solution for connecting standard RJ45 equipment to M12-based industrial networks, offering high-speed performance and rugged durability.
