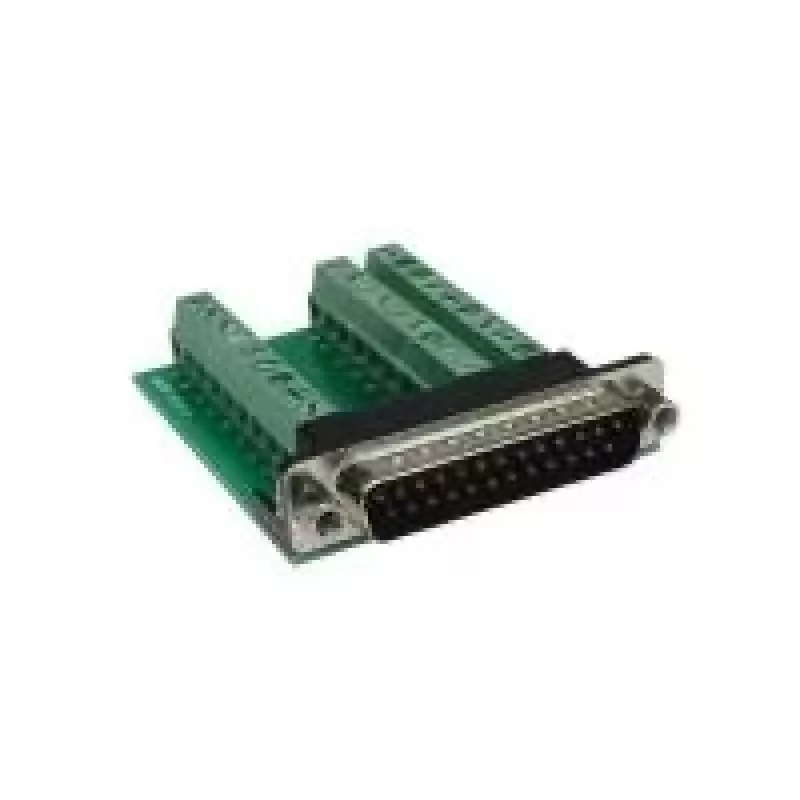

EXSYS EX-49025 D-SUB 25-pinový samec na 27-pinovú skrutkovú svorkovnicu adaptér, zelená/strieborná

When you need to connect a legacy 25-pin D-SUB device to individual wires for industrial control, data acquisition, or custom serial interfaces, this adapter eliminates soldering and provides a reliable screw terminal breakout. The EX-49025 converts each of the 25 D-SUB pins to a corresponding screw terminal, plus two additional ground terminals, in a compact green and silver housing.

Who is it for

Engineers, technicians, and system integrators working with RS-232 or parallel interfaces who need a quick, secure way to terminate field wiring without custom cables.

Main features

• 25-pin male D-SUB connector to 27-pin screw terminal block (2x13 + 1 ground)
• 1:1 pin-to-terminal mapping for straightforward wiring
• Green plastic terminal block with silver metal D-SUB shell
• Accepts 16–26 AWG wire for flexible installation
• Supports cable or panel mounting

Specifications

• Connector 1: D-SUB male, 25-pin
• Connector 2: Screw terminal block, 27 terminals (2x13 + 1 ground)
• Wire gauge: 16–26 AWG
• Insulation resistance: >1000 MΩ
• Dielectric strength: 1000V AC/minute
• Operating temperature: -20°C to 85°C
• Material: Plastic terminal block, metal D-SUB shell

Tips

Use ferrules on stranded wire for a more secure connection in the screw terminals. For panel mounting, ensure adequate clearance behind the terminal block for wire routing.
