EXSYS EX-49167 D-Typ USB-C konektor samica na konektor samec montážny adaptér, USB 3.2 Gen 2, 10Gbps

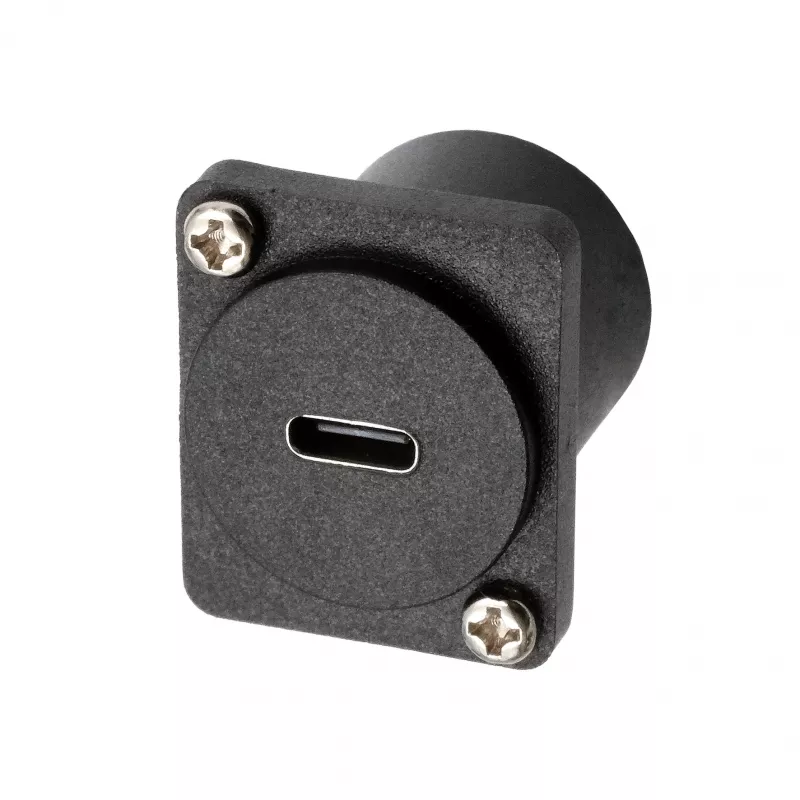

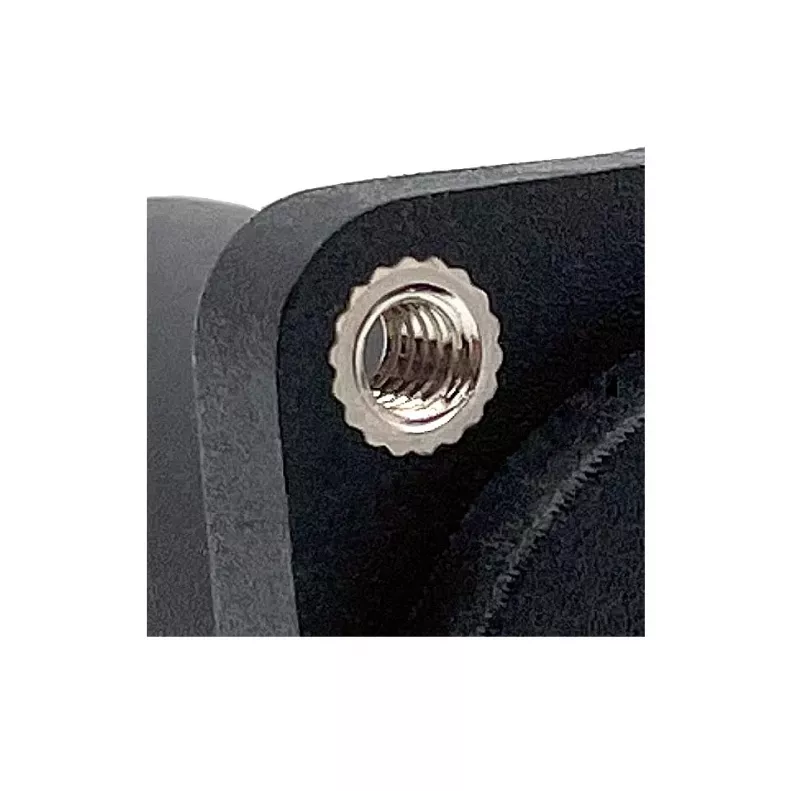

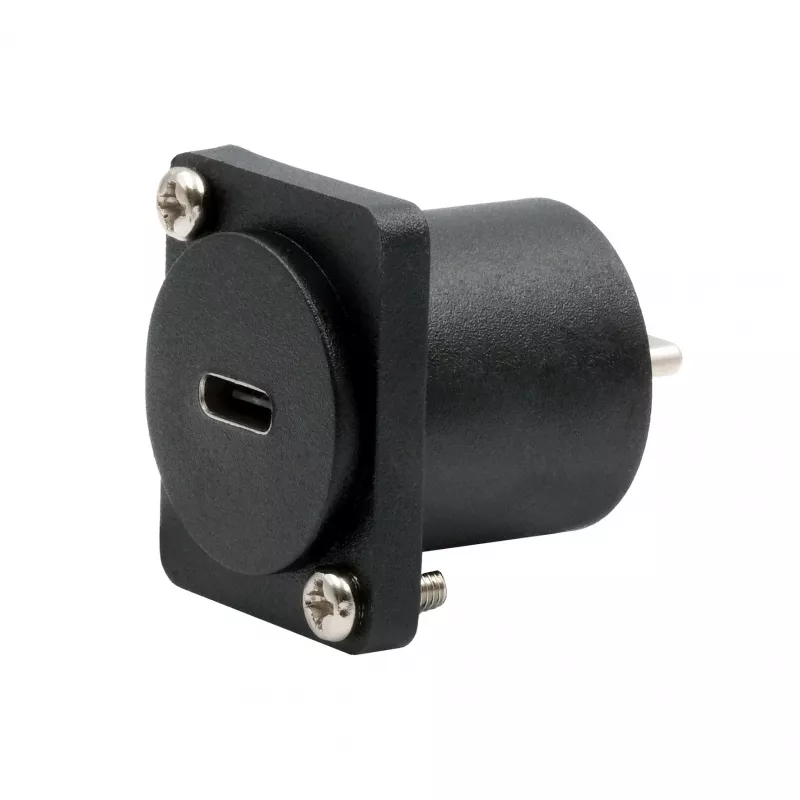

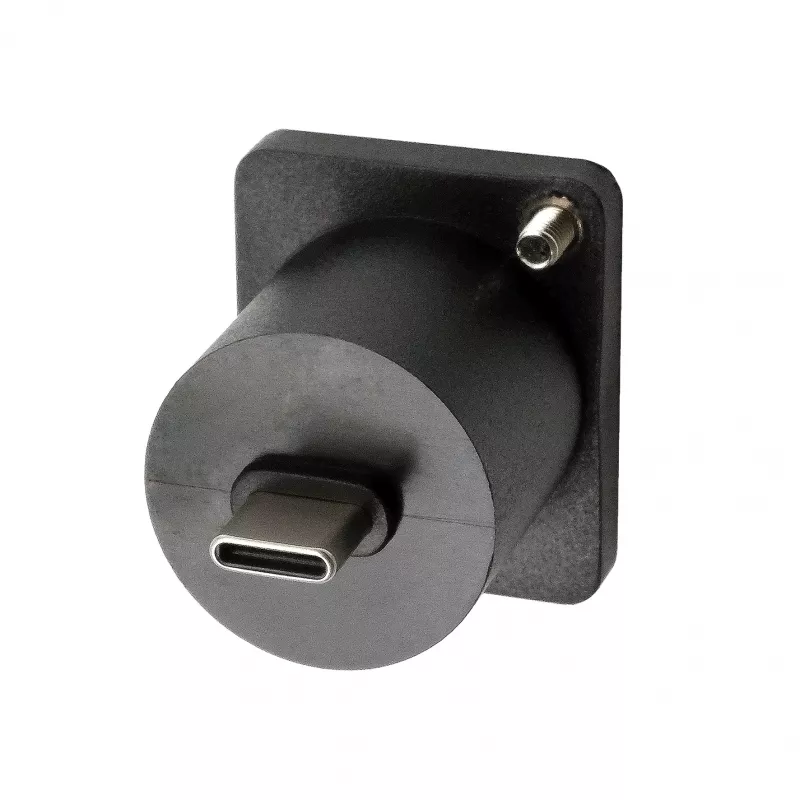

This D-Type panel mount adapter converts a USB-C female port to a USB-C male connector on a short cable, supporting USB 3.2 Gen 2 data transfer rates up to 10 Gbps. It is designed for mounting into a panel or enclosure with two M3 screw holes, providing a secure and professional connection point.

Advantages

The adapter features a fully shielded metal housing for reliable signal integrity and durability. It supports USB Power Delivery up to 100W and DisplayPort Alternate Mode for video output, making it versatile for data, power, and display applications. Backward compatible with USB 3.0, 2.0, and 1.1.

Suitable for

• Panel mounting in industrial or custom enclosures
• Extending USB-C connectivity to a front panel
• High-speed data transfer and charging applications

Key specifications

• Connector 1: USB-C female
• Connector 2: USB-C male (on cable)
• USB standard: USB 3.2 Gen 2
• Data transfer rate: up to 10 Gbps
• Cable length: approx. 20 cm
• Housing material: metal (steel)
• Colour: black

Recommendations

Ideal for integrating USB-C connectivity into custom panels or cases where a robust, high-speed connection is needed.
