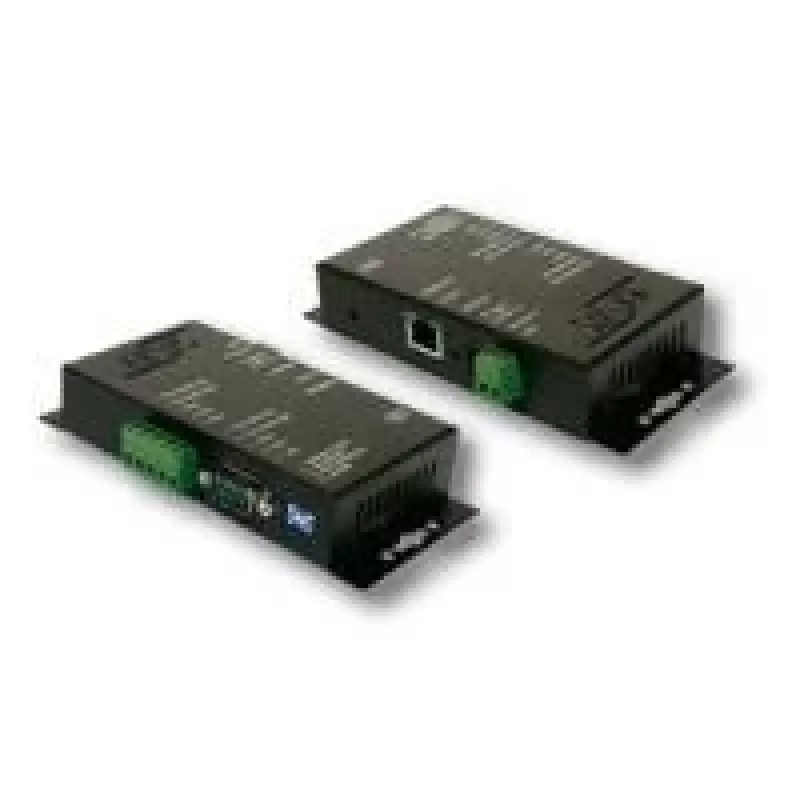

EXSYS EX-6051POE Ethernet na 1-port RS-422/485 sériový server zariadenia s PoE

The EX-6051POE stands out by combining Ethernet connectivity with a single RS-422/485 serial port and Power over Ethernet support, eliminating the need for a separate power supply in PoE-enabled installations. It is built for industrial environments, featuring a metal housing, DIN-rail or wall mounting, and a wide operating temperature range.

Highlights

• Ethernet to RS-422/485 serial connectivity with PoE (IEEE 802.3af/at)
• Supports Modbus TCP/IP to Modbus RTU/ASCII protocol conversion
• 2.5KV optical isolation protects against ground loops and surges
• Wide operating temperature range: -40°C to 85°C
• Flexible configuration via web interface or Windows utility

In daily use

The EX-6051POE connects legacy RS-422/485 serial devices to a modern Ethernet network. Its 5-pin terminal block accepts serial wiring, while the RJ45 port provides network connectivity. Power can be supplied via PoE or an external 9-48V DC source. The device supports baud rates up to 921.6 Kbps and various data formats, making it suitable for diverse industrial protocols.

Full specifications

• Interface: Ethernet to Serial
• Serial Ports: 1 x RS-422/485
• Ethernet Standard: 10/100Base-TX
• Ethernet Connector: RJ45
• Serial Connector: 5-pin Terminal Block
• Power Input: PoE (IEEE 802.3af/at) or DC Jack
• DC Input Voltage: 9-48V DC
• Baud Rate: Up to 921.6 Kbps
• Data Bits: 5, 6, 7, 8
• Parity: None, Even, Odd, Space, Mark
• Flow Control: RTS/CTS, XON/XOFF, None
• Isolation: 2.5KV Optical Isolation
• Operating Temperature: -40°C to 85°C
• Mounting Options: DIN-Rail, Wall-mount
• Housing Material: Metal
• Supported Protocols: TCP/IP, UDP, ARP, ICMP, HTTP, DHCP, DNS, Modbus TCP/IP to Modbus RTU/ASCII
• Configuration: Web-based, Windows Utility
• LED Indicators: Power, Link, Activity, TX/RX

Final note

The EX-6051POE is a robust solution for integrating serial devices into IP-based networks, especially where PoE simplifies installation.
