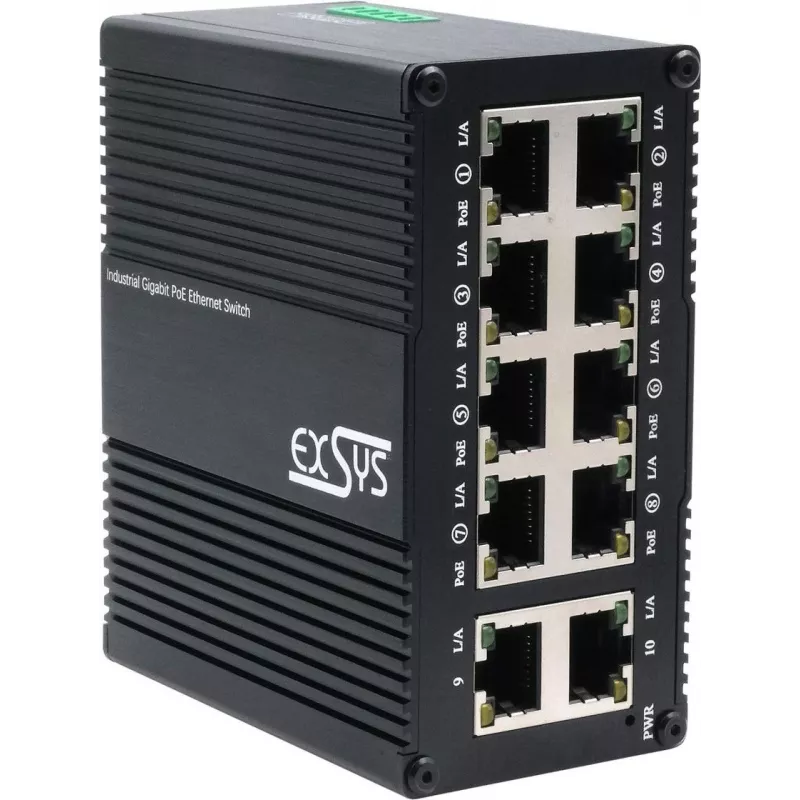

Exsys EX-62026PoE Priemyselný mini switch 10-portový Gigabit PoE+ 12-48VDC

The Exsys EX-62026PoE is a compact industrial mini switch designed for reliable network connectivity in harsh environments. With 10 Gigabit Ethernet ports, including 8 PoE+ ports, it delivers power and data to devices such as IP cameras, wireless access points, and industrial sensors. Its wide input voltage range (12-48VDC) and redundant power input ensure uninterrupted operation, while the IP30-rated metal housing withstands extreme temperatures from -40°C to +75°C. Ideal for factory automation, surveillance, and outdoor installations, this unmanaged switch offers plug-and-play simplicity with robust performance.

Advantages

This switch combines industrial durability with high-performance PoE+ capabilities. The 120W total PoE budget supports power-hungry devices, and the 20 Gbps switching capacity ensures smooth data flow. Its compact size and DIN-rail or wall-mount options simplify installation in space-constrained areas. With ESD and surge protection, it safeguards connected equipment against electrical disturbances.

Suitable for

• Industrial Ethernet networks in factories and warehouses
• IP surveillance systems requiring PoE+ for cameras
• Wireless access point deployments in outdoor or rugged settings
• Automation and control systems needing reliable Gigabit connectivity

Key specifications

• 10 x Gigabit Ethernet ports (8 PoE+ and 2 non-PoE uplink)
• PoE standard: IEEE 802.3af/at (PoE/PoE+)
• Total PoE power budget: 120W (with 48VDC input)
• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 9K bytes
• Input voltage: 12-48VDC (redundant)
• Operating temperature: -40°C to +75°C
• Housing: IP30-rated metal
• Mounting: DIN-rail or wall-mount
• Power consumption (device only): <5W
• ESD protection: 6KV DC
• Surge protection: 6KV DC

Recommendations

For optimal PoE+ performance, use a 48VDC power supply. This switch is unmanaged, making it ideal for simple, cost-effective network extensions. Ensure proper ventilation when mounting in enclosed spaces.
