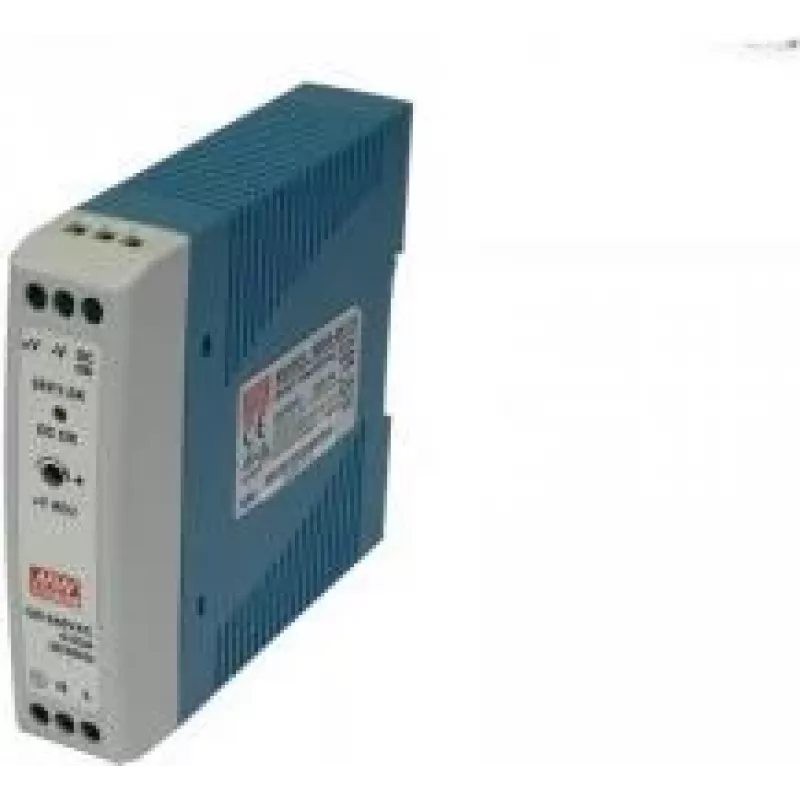

EXSYS EX-6950 napájací zdroj na DIN lištu 24W 24V 1A, modrý/sivý

Industrial control panels often lack a compact, reliable 24 VDC power source that can be mounted directly on a DIN rail. The EXSYS EX-6950 solves this by converting a wide range of AC or DC input voltages into a stable 24 VDC output, delivering up to 24 W for sensors, controllers, and other automation components.

Who is it for

This power supply is intended for system integrators, panel builders, and maintenance technicians who need a space-saving, DIN-rail mountable unit for industrial automation, building control, or machine building applications.

Main features

• Universal input: 85–264 VAC or 120–370 VDC, suitable for worldwide use.
• Stable output: 24 VDC, 1 A, 24 W with adjustable voltage from 21.6 to 26.4 V.
• DIN rail mounting: fits TS-35/7.5 or TS-35/15 rails for quick installation.
• Protection: overload, overvoltage, and short circuit protection ensure reliable operation.
• Wide operating temperature: -20°C to +70°C, suitable for harsh environments.
• Compact plastic housing in blue/grey with free air convection cooling.

Specifications

• Output power: 24 W
• Output voltage: 24 VDC
• Output current: 1 A
• Input voltage (AC): 85 - 264 VAC
• Input voltage (DC): 120 - 370 VDC
• Input frequency: 47 - 63 Hz
• Efficiency: 85%
• Ripple & noise: 120 mVp-p
• Voltage adjustment range: 21.6 - 26.4 V
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Operating humidity: 20 - 90% RH (non-condensing)
• Mounting type: DIN rail (TS-35/7.5 or TS-35/15)
• Protection features: overload, overvoltage, short circuit
• Enclosure material: plastic
• Colour: blue/grey
• Cooling type: free air convection

Tips

Ensure adequate ventilation around the unit to maintain optimal performance. The adjustable output voltage allows fine-tuning for specific load requirements.
