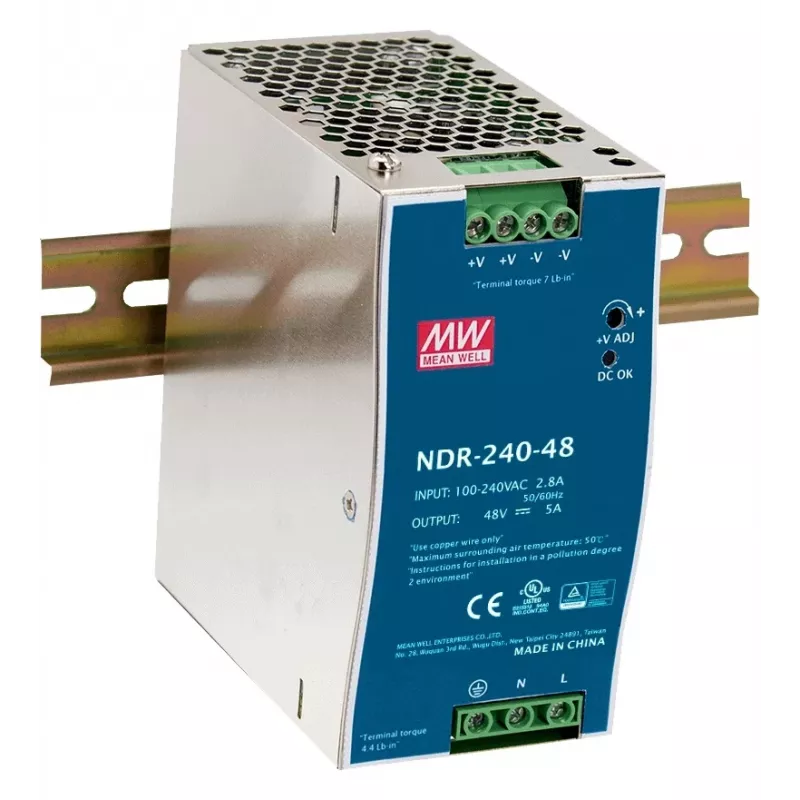

EXSYS Meanwell 240W napájací zdroj na DIN lištu 48V/5A - NDR-240-48 (EX-6976)

Industrial DIN rail power supply delivering 240W at 48V DC with 5A output current. Its high efficiency of 90% at 230VAC full load reduces energy loss and heat generation.

Advantages

Wide input voltage range of 90-264VAC or 127-370VDC allows operation on various AC or DC mains. Adjustable output voltage from 48V to 55V provides flexibility for different loads. Free air convection cooling eliminates the need for fans, ensuring silent and maintenance-free operation. Built-in protections against short circuit, overload, over voltage, and over temperature safeguard both the power supply and connected equipment.

Suitable for

• Industrial automation systems
• Building control and monitoring
• Telecommunication equipment
• LED lighting installations
• Any DIN rail mounted application requiring stable 48V DC

Key specifications

• Output Power: 240W
• Output Voltage: 48V DC
• Output Current: 5A
• Input Voltage: 90-264VAC / 127-370VDC
• Efficiency: 90%
• Mounting: DIN Rail TS-35/7.5 or TS-35/15
• Operating Temperature: -20 to +70°C
• Ripple & Noise: 150mVp-p
• Isolation Voltage: 3kVAC
• Power Factor: >0.95
• MTBF: >300,000 hours
• Housing: Metal case
• Dimensions: 63 x 125.2 x 113.5 mm

Recommendations

For reliable and efficient power conversion in industrial environments, the EX-6976 offers robust performance and compliance with international safety standards.
