EXSYS PoE++ Gigabit Injector 90W -40°C až +80°C

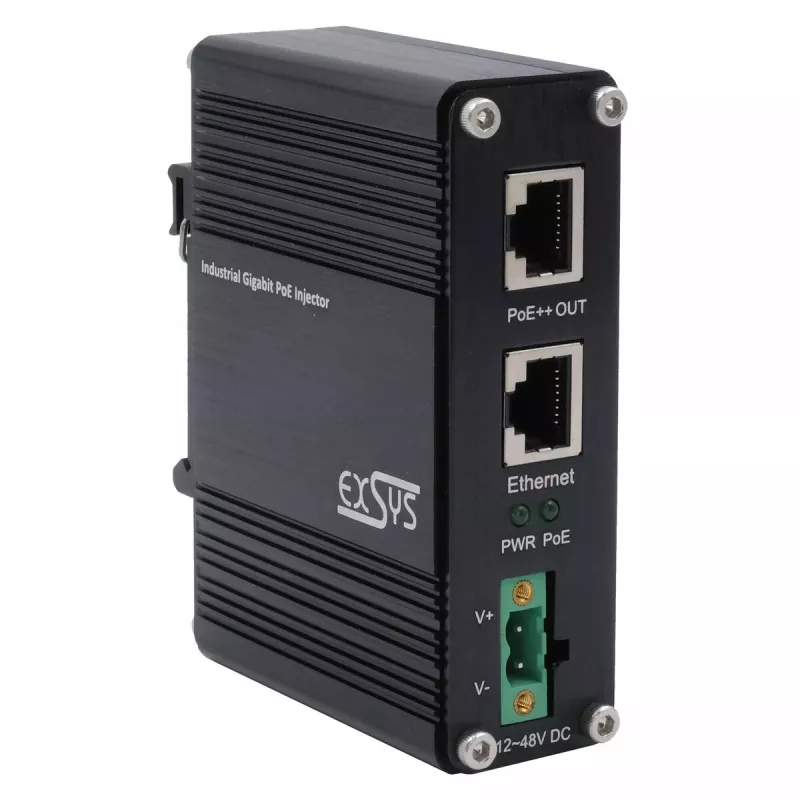

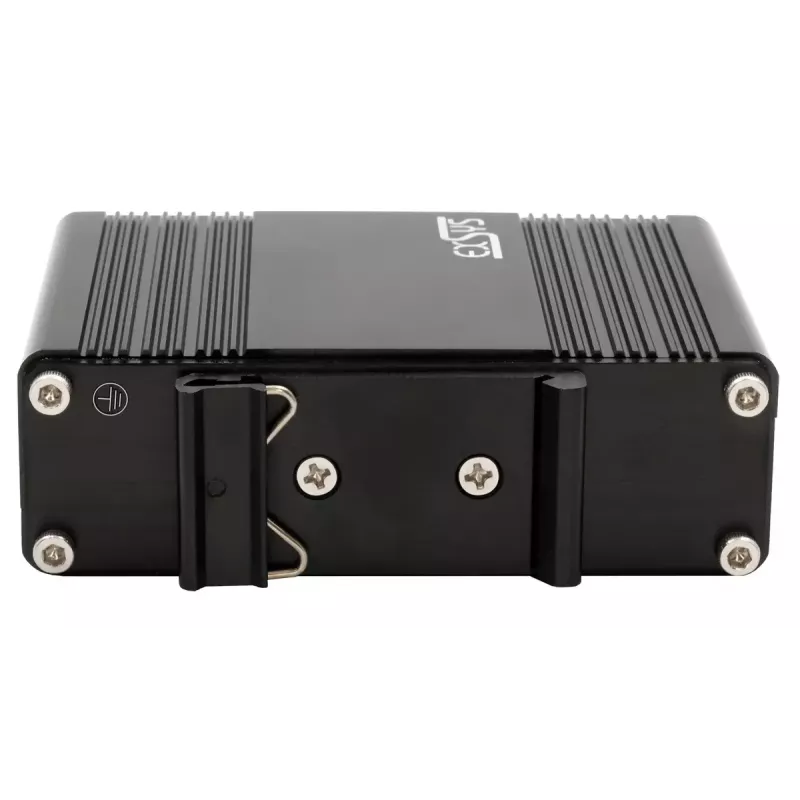

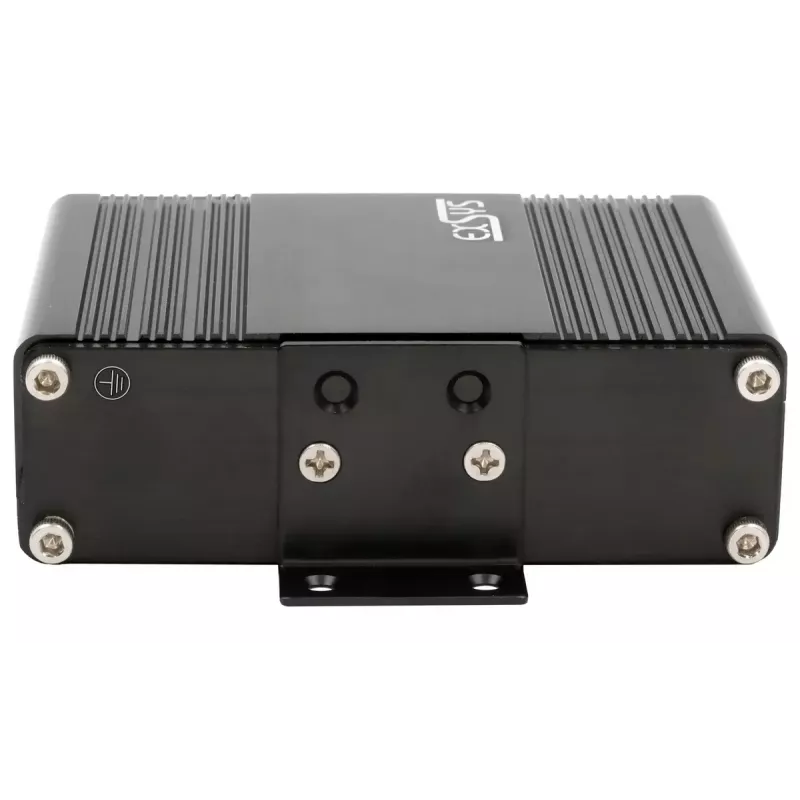

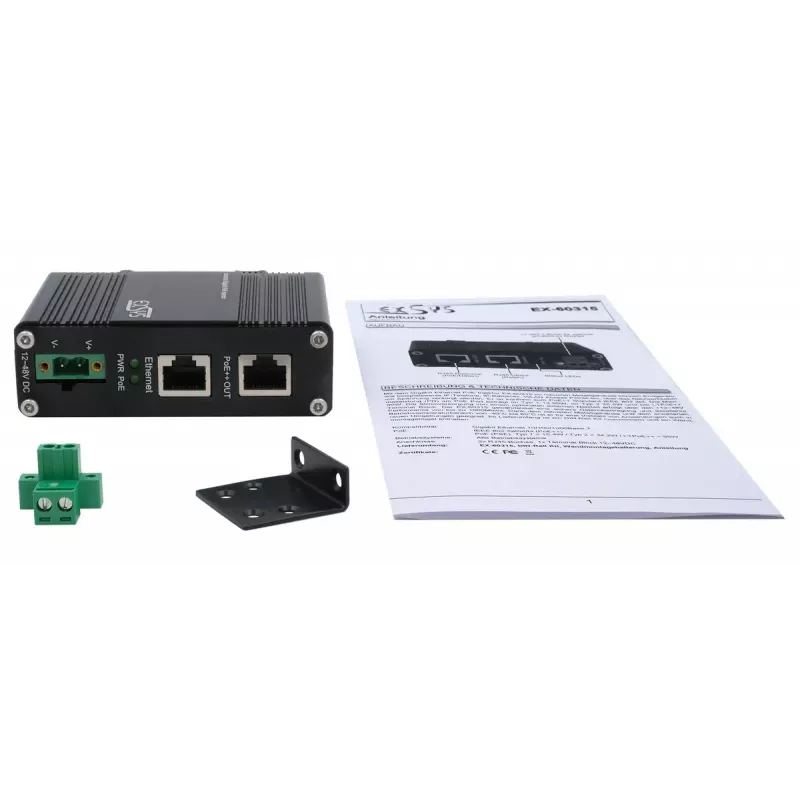

The EXSYS PoE++ Gigabit Injector EX-60315 supplies power and data over a single Ethernet cable to end devices such as IP telephones, IP cameras and WLAN access points. Housed in a durable metal enclosure, it supports IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) and delivers up to 90 W at the PoE port while maintaining Gigabit data throughput up to 1000 Mbps. Power is connected via a +12~48V terminal block using an appropriate external power supply. The unit is designed for use in demanding environments with an operating temperature range from -40°C to +80°C and comes with a pre-assembled DIN-rail kit and wall mounting bracket.

Advantages

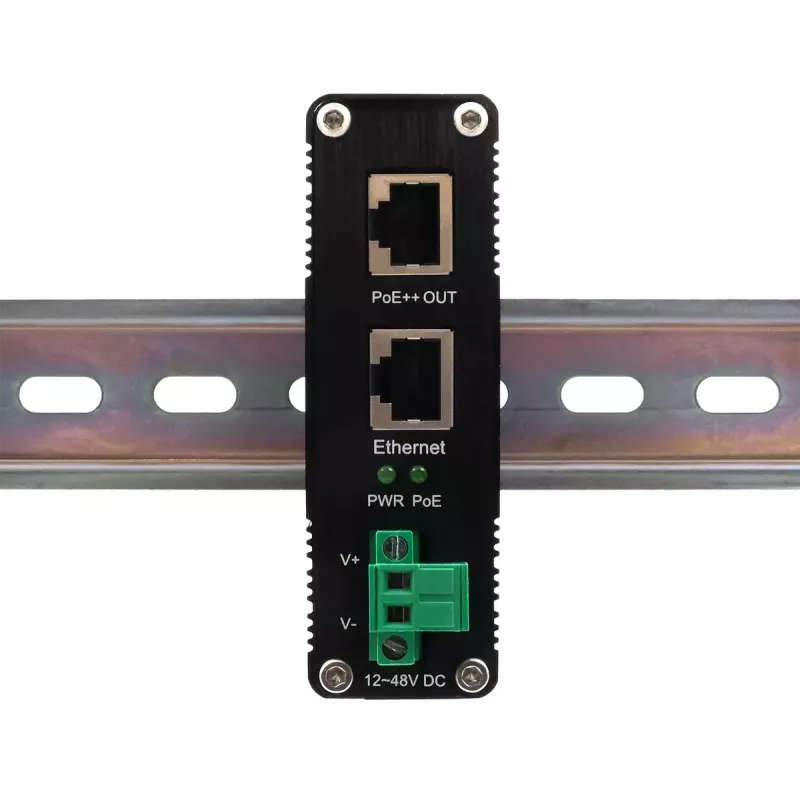

The injector combines high power delivery (up to 90 W) with Gigabit Ethernet performance, enabling both reliable data transmission and sufficient power for high-consumption devices. Its robust metal housing and extended temperature tolerance improve durability and suitability for industrial or outdoor-adjacent installations. LED indicators provide visual status of PoE and device operation, and the supplied DIN-rail and wall mounts simplify installation.

Suitable for

• Powering IP cameras, including PTZ and high-power models
• Supplying power to WLAN access points and outdoor wireless units
• Feeding IP telephones, VoIP handsets and desktop network devices
• Industrial and harsh-environment network deployments requiring extended temperature range

Key specifications

• Standards: IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt
• Maximum PoE output: 90 W
• Data rate: 10/100/1000 Mbps (Gigabit Ethernet)
• Power input: +12~48V via terminal block (external PSU required)
• Operating temperature: -40°C to +80°C
• Ports: 2 x RJ-45 Ethernet
• Housing: metal; colour: black
• Weight: 0.37 kg

How to use

Connect the injector’s data input port to a network switch or router. Attach the powered device (PD) to the PoE output port with a compatible Ethernet cable. Provide DC power to the injector via the +12~48V terminal block from a suitable external power supply according to the device’s rated input. Verify LED indicators for PoE and status to confirm correct operation. For wiring and safety, follow the external power supply manufacturer’s instructions and local electrical regulations.

Recommendations

Use high-quality, shielded Cat5e or Cat6 cables for reliable Gigabit performance and to minimise voltage drop when delivering high PoE power. Confirm the powered device’s PoE class and power draw to ensure the external power supply and cable run length support delivery of up to 90 W at the PD. Install the injector in a ventilated location and secure it using the supplied DIN-rail or wall bracket for stable, long-term operation.
