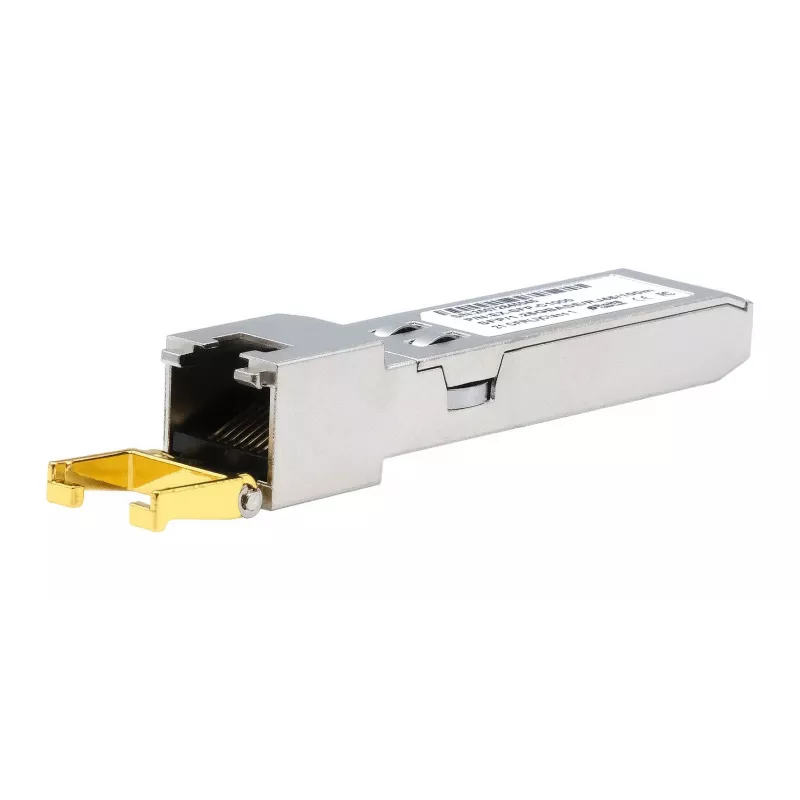

EXSYS SFP transceiver, medený RJ45, 1Gbit/s (EX-SFP-C1000)

The EXSYS EX-SFP-C1000 SFP transceiver converts an SFP port into a Gigabit Ethernet copper RJ45 interface, enabling connections over standard Cat5e or better twisted-pair cabling up to 100 meters. Unlike fiber SFP modules that require specific wavelengths and fiber types, this copper module works with widely available network cabling, making it a practical choice for short-range links where fiber is not necessary.

Highlights

• 1000BASE-T SFP transceiver with RJ45 connector
• Supports data rates up to 1 Gbit/s
• Hot-swappable for easy installation and replacement
• Digital Diagnostic Monitoring (DDM) for real-time monitoring
• Low power consumption under 1.0 W

In daily use

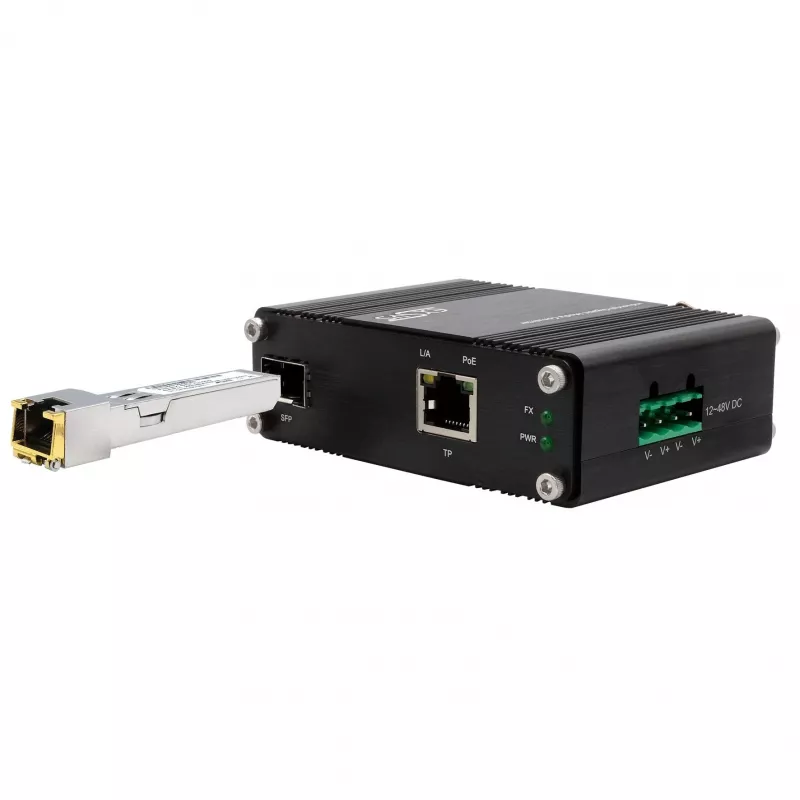

Deploy this transceiver in switches, routers, or media converters with SFP slots to add copper Gigabit Ethernet connectivity. Auto-negotiation ensures compatibility with existing 10/100/1000 Mbps devices, and full-duplex operation maximizes throughput. The module operates reliably in temperatures from 0°C to 70°C, suitable for standard office and wiring closet environments.

Full specifications

• Module Type: SFP (Small Form-Factor Pluggable)
• Data Rate: 1 Gbit/s (1000BASE-T)
• Connector Type: RJ45
• Media Type: Copper
• Cable Type: Cat5e, Cat6, Cat7
• Max Cable Distance: 100 m
• Interface: SFP Port
• Hot-Swappable: Yes
• Digital Diagnostic Monitoring (DDM): Yes
• Power Consumption: <1.0 W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% (non-condensing)
• Standards Compliance: IEEE 802.3ab, SFP MSA
• Application: Gigabit Ethernet
• Duplex Mode: Auto-negotiation, Full-Duplex
• Voltage: 3.3 V

Final note

For networks that need copper connectivity from SFP slots, the EX-SFP-C1000 offers a straightforward, standards-based solution without the complexity of fiber.
