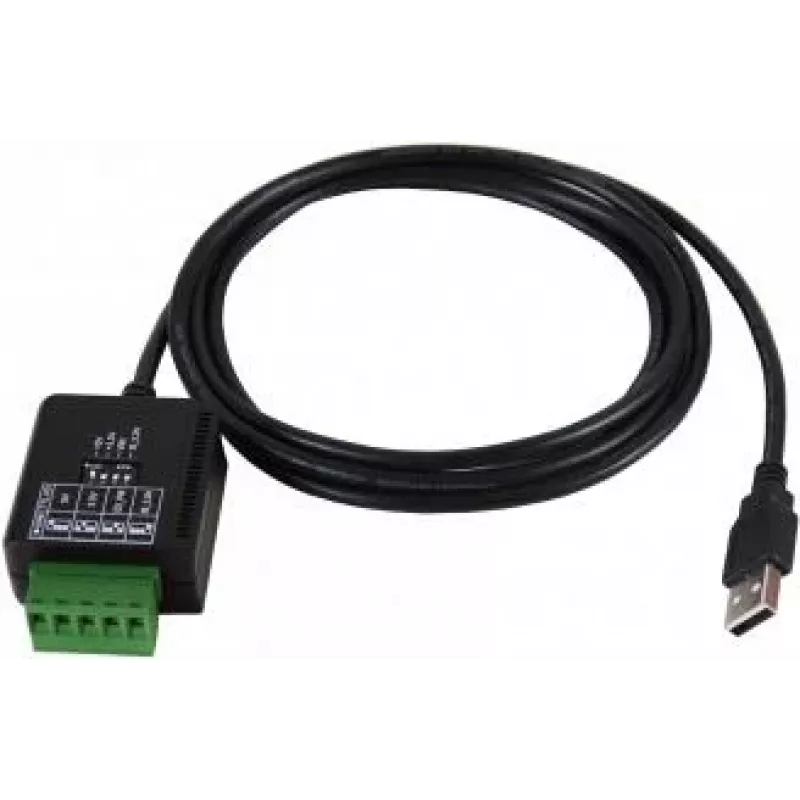

EXSYS USB 2.0 na RS-232 TTL/CMOS sériový adaptérový kábel s FTDI čipsetom, 1,8 m EX-1310-TTL

Connect industrial controllers, embedded boards, and IoT devices to a PC via USB with the EXSYS EX-1310-TTL. This adapter cable provides a serial interface with selectable RS-232, TTL, or CMOS levels, making it suitable for debugging, programming, and data acquisition in automation and development environments.

Key specifications

• Host interface: USB 2.0 Type-A male
• Device interface: 1-port serial, 6-pin header / bare wires
• Serial output levels: RS-232, TTL, CMOS (3.3 V / 5 V selectable)
• Chipset: FTDI FT232R series
• Cable length: 1.8 m
• Maximum data rate: 3 Mbps
• Serial data format: 7/8 data bits, 1/2 stop bits, none/even/odd/mark/space parity
• Flow control: hardware (RTS/CTS), software (XON/XOFF), none
• ESD protection: 15 kV HBM
• LED indicators: Tx/Rx activity
• Driver support: Virtual COM Port (VCP) and D2XX direct drivers
• Operating temperature: -40 °C to +85 °C
• Compatible operating systems: Windows (XP/Vista/7/8/10/11), macOS, Linux, Android

Why choose it

The FTDI chipset ensures reliable communication and broad driver support across operating systems. Bus-powered operation eliminates the need for an external power supply, and the selectable voltage levels make it versatile for different logic families.

Ideal use cases

• Industrial automation and control systems
• Embedded system development and debugging
• Microcontroller programming (Arduino, Raspberry Pi, etc.)
• IoT device configuration and data logging
• Legacy serial device connectivity

Good to know

The cable is 1.8 meters long, providing flexibility in equipment placement. The 6-pin header with bare wires allows direct connection to board-level serial ports without additional adapters.
