EXSYS USB 2.0 USB-C na sériový 1-port RS-422/485 FTDI Chipset kábel/adaptér set

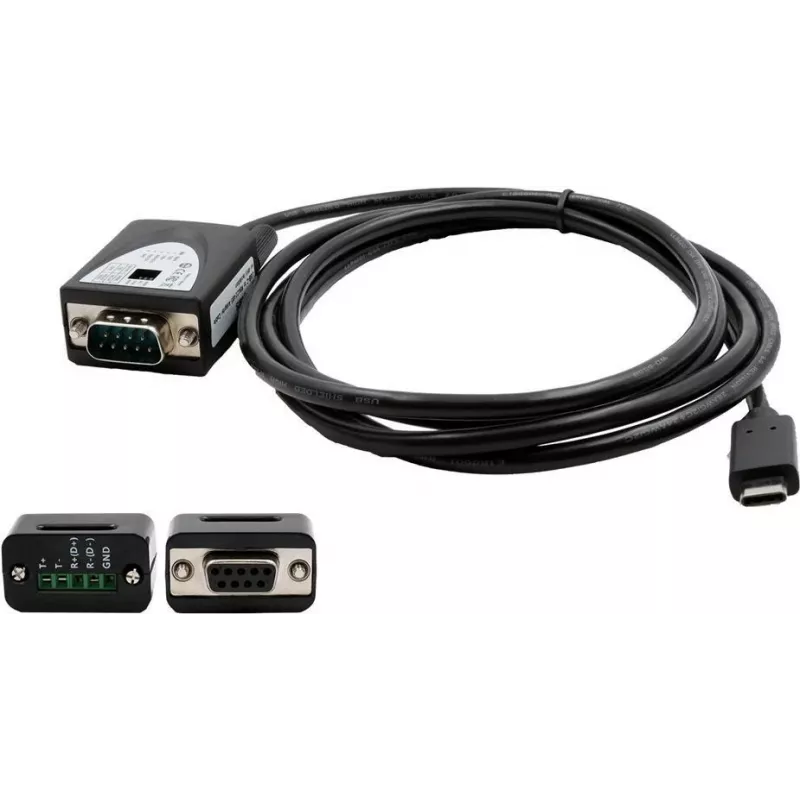

The EXSYS EX-2346 is a high-performance USB 2.0 to serial adapter set featuring a USB-C host connector and a 1-port RS-422/485 interface with FTDI chipset. This cable/adapter set provides reliable serial connectivity for industrial and commercial applications, supporting data transfer rates up to 921.6 Kbps. With integrated ESD protection and broad OS compatibility, it is an ideal solution for connecting legacy serial devices to modern USB-C equipped computers.

Advantages

Equipped with the FTDI FT232RL chipset, this adapter ensures stable and efficient data transmission. The USB bus-powered design eliminates the need for an external power supply, simplifying installation. The 0.8 m integrated cable offers flexibility in placement, while the 5-pin terminal block connector provides secure wiring for RS-422/485 networks. Full-duplex (RS-422) and half-duplex (RS-485) operating modes are supported, making it versatile for various serial communication requirements.

Suitable for

• Connecting RS-422/485 devices such as industrial controllers, sensors, and barcode scanners to USB-C computers
• Legacy serial device integration with modern laptops and tablets
• Point-of-sale systems, automation, and data acquisition applications

Key specifications

• USB Standard: USB 2.0
• Host Connector: USB-C
• Serial Interface: RS-422, RS-485
• Number of Serial Ports: 1
• Serial Connector: 5-pin Terminal Block
• Chipset: FTDI FT232RL
• Data Transfer Rate: Up to 921.6 Kbps
• Operating Modes: Full-Duplex (RS-422), Half-Duplex (RS-485)
• Power Source: USB Bus Powered
• OS Compatibility: Windows (XP/Vista/7/8/10/11), macOS, Linux
• LED Indicators: TxD, RxD, Power
• Integrated Cable Length: 0.8 m
• ESD Protection: 15KV for serial signals
• Data Bits: 7, 8
• Stop Bits: 1, 2
• Parity: None, Even, Odd, Mark, Space
• Housing Material: Plastic
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, use with USB-C ports that support USB 2.0 or higher. Ensure proper termination for RS-485 networks. This adapter is a reliable choice for industrial environments requiring robust serial communication.
