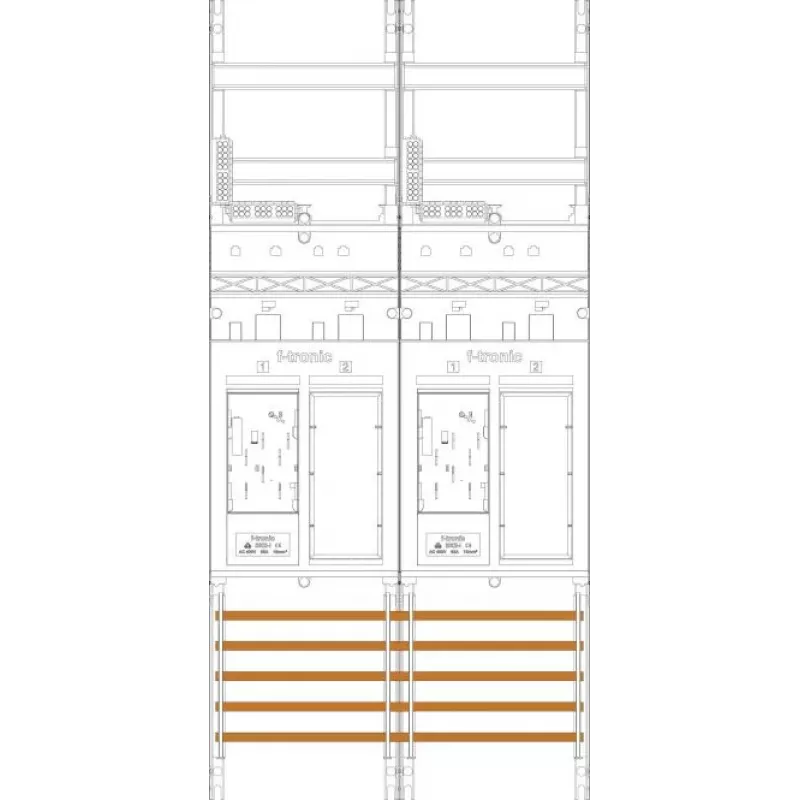

f-tronic rozvádzač elektromerov 2-pólový ER26 H=1050mm 2-eHZ 2 rezerva 7141002

Electricians and panel builders installing modern residential or commercial metering systems will find the f-tronic 7141002 meter panel a reliable foundation. This 2-field unit accommodates two eHZ electronic household meters and provides two reserve sections, making it suitable for multi-tenant or multi-circuit applications where future expansion is anticipated.

Key specifications

• 2 fields, 2 eHZ meter positions, 2 reserve sections (2 x 12 PLE)
• System series ER26, height 1050 mm, width 500 mm, depth 160 mm
• 5-pole busbar system, main terminal block included
• Galvanized sheet steel, powder-coated
• Rated voltage 400 V AC, rated current up to 63 A
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100

Why choose it

The ER26 series is designed for straightforward integration into meter cabinets and distribution boards. The pre-fitted busbar and main terminal block reduce wiring time, while the powder-coated steel construction provides durability in demanding environments.

Ideal use cases

• Residential apartment buildings with multiple metering points
• Commercial installations requiring separate metering for tenants or departments
• New builds and retrofits where eHZ meters are specified

Good to know

This panel is compliant with German metering standards, ensuring acceptance by network operators. Always verify local regulations before installation.
