f-tronic rozvádzač elektromerov 2-pólový ER29 H=1350mm 2-eHZ 2 rez. 7143002 1 (7143002)

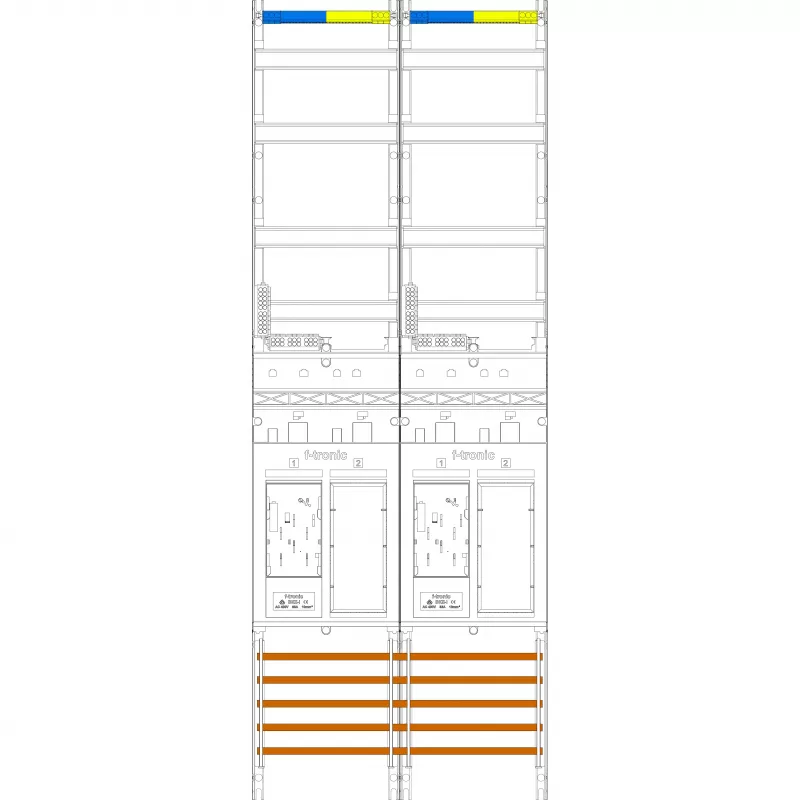

The f-tronic Zählerfeld 2-feldrig ER29 H=1350mm 2-eHZ 2 Res. 7143002 1 is a compact meter panel designed for modern electrical distribution systems. It accommodates two electronic household meters (eHZ) and provides two reserve spaces, making it suitable for installations where future expansion is anticipated. The panel features a 2-field layout with integrated APZ space and a 5-pole main line branch terminal, ensuring efficient power distribution.

Highlights

• Two eHZ meter positions and two reserve spaces
• Integrated APZ space and 5-pole main line branch terminal
• Touch protection for enhanced safety
• Compatible with flush-mounted and surface-mounted distributors
• Robust sheet steel construction

In daily use

This meter panel streamlines installation with its integrated busbar system and PE/N terminals. The 1350 mm height provides ample space for wiring, while the touch protection feature minimizes the risk of accidental contact. Its compatibility with both UP and AP mounting options offers flexibility for various electrical setups.

Full specifications

• Number of meter positions: 2 eHZ
• Number of fields: 2
• Height: 1350 mm
• Width: 500 mm
• Depth: 120 mm
• Series/Type: ER29
• Reserve spaces: 2
• APZ space: Integrated
• Main line branch terminal: 5-pole
• Busbar system: Integrated
• PE/N terminals: Integrated
• Touch protection: Yes
• Mounting compatibility: Flush-mounted (UP) and surface-mounted (AP) distributors
• Material: Sheet steel
• Standard compliance: DIN VDE
• Application area: Electrical distribution systems
• Meter type compatibility: Electronic Household Meters (eHZ)

Final note

The f-tronic Zählerfeld ER29 is a reliable choice for electricians seeking a pre-configured meter panel that meets modern eHZ requirements while offering flexibility for future upgrades.
