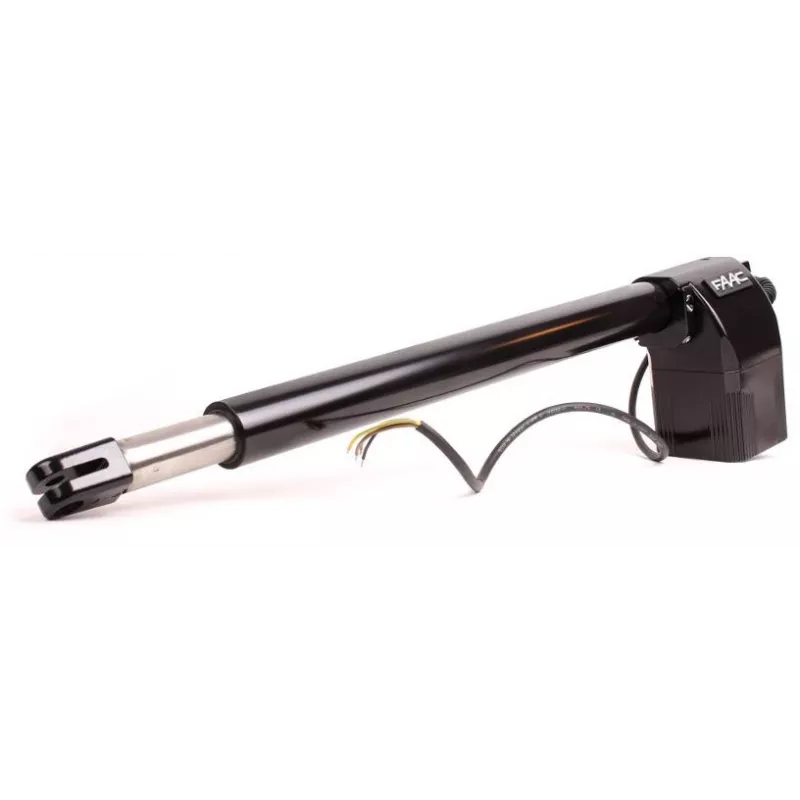

FAAC 414 DX pravý doraz otočný pohon krídlovej brány 6171021

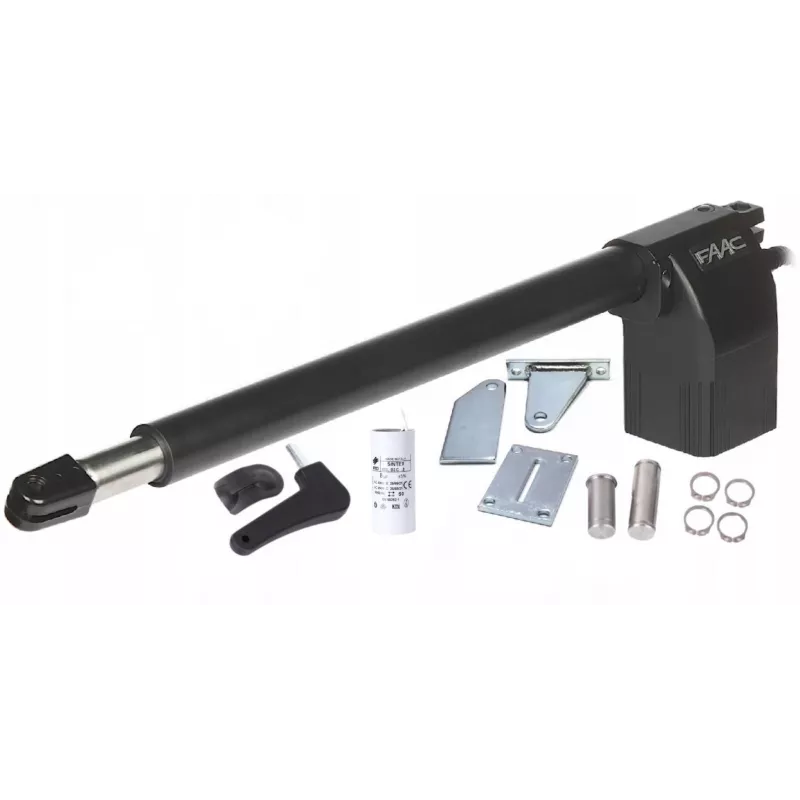

The FAAC 414 DX is a high-performance electro-mechanical actuator designed for right-hand swing gates. Engineered for reliability and durability, this operator ensures smooth and secure gate automation for residential and light commercial applications.

Advantages

Robust 3500 N thrust force handles heavy gate leaves up to 4 m with electric lock. Mechanical locking in open and closed positions enhances security. IP44 protection rating ensures reliable operation in various weather conditions. Thermal protection at 140°C prevents motor damage.

Suitable for

• Right-hand swing gates (as viewed from inside)
• Gate leaves up to 3.5 m without electric lock, 4 m with electric lock
• Residential and light commercial installations

Key specifications

• Power supply: 230V AC, 50/60 Hz
• Motor power: 280 W
• Current consumption: 1.2 A
• Thrust force: 3500 N
• Rod speed: 1.6 cm/s
• Rod stroke: 400 mm
• Duty cycle: 30%
• Protection rating: IP44
• Operating temperature: -20°C to +55°C
• Max opening angle: 110°
• Compatible control units: FAAC E045, E124

Recommendations

For optimal performance, pair with FAAC control units E045 or E124. Ensure proper installation by a qualified technician. Regular maintenance extends product life.
