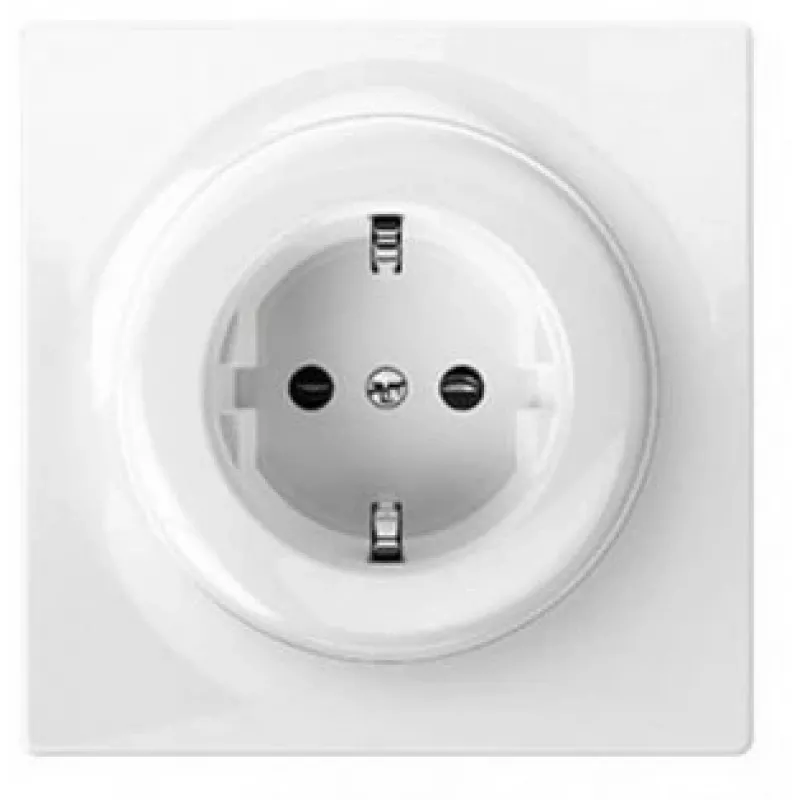

FIBARO Walli N zásuvka Typ F Smart Socket Z-Wave Plus 800 Series

The FIBARO Walli N Outlet Type F is a smart socket designed for flush-mount installation, integrating seamlessly into your home automation system. With Z-Wave Plus V2 and the latest 800 Series chip, it offers reliable communication and energy monitoring capabilities. This outlet supports Type F (Schuko) plugs and is ideal for controlling and monitoring electrical devices in your smart home.

Advantages

Energy monitoring with real-time power consumption data; overload protection and child safety features; multicolor LED ring for status indication; S2 Access Control security protocol for enhanced safety; easy integration with Z-Wave controllers.

Suitable for

• Smart home enthusiasts looking to automate and monitor electrical outlets
• Energy-conscious users wanting to track power usage
• Installations requiring flush-mount sockets with Z-Wave connectivity

Key specifications

• Socket Type: Type F (Schuko)
• Communication Protocol: Z-Wave Plus V2
• Z-Wave Series: 800 Series
• Power Metering: Yes (Energy Monitoring)
• Max Load Current: 16 A
• Max Load Power: 3680 W
• Input Voltage: 230 V AC
• Frequency: 50 Hz
• Neutral Wire Required: Yes
• LED Indicator: Yes (Multicolor LED Ring)
• Overload Protection: Yes
• Child Protection: Yes
• Operating Temperature: 0 - 35 °C
• Radio Frequency (EU): 868.4 MHz / 869.8 MHz
• Wireless Range (Indoors): Up to 40 m
• Compatibility: Z-Wave Controllers
• Installation Type: Wall-mounted (Flush-mount)
• Security Protocol: S2 Access Control
• Color: White

Recommendations

For optimal performance, ensure a neutral wire is available at the installation point. Compatible with most Z-Wave gateways and controllers. Ideal for retrofitting smart capabilities into existing electrical outlets.
