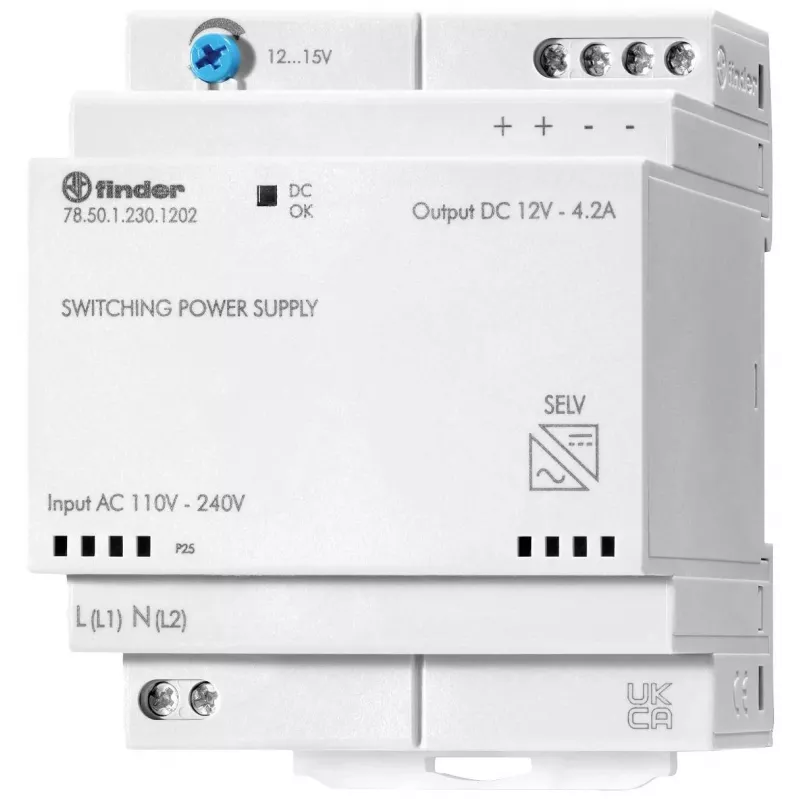

Finder 78.50.1.230.1202 DIN lištový napájací zdroj 12 V DC 4,6 A 50 W

Control panel builders and machine integrators rely on the Finder 78.50.1.230.1202 to deliver stable 12 V DC power in compact DIN rail installations. This 50 W unit mounts directly onto TS 35 mm rails, making it a practical choice for industrial automation, building control, and instrumentation panels.

Key specifications

• Output: 12 V DC, 4.6 A, 50 W
• Input: 100–240 V AC (120–370 V DC), 50/60 Hz
• Efficiency: >87%
• Adjustable output: 10.8–13.2 V DC
• Protections: short circuit, overload, overvoltage, thermal
• Ripple and noise: <100 mVpp
• Operating temperature: -20 to +70 °C
• Isolation: 3 kV AC input-output
• Power factor: >0.9
• Housing: plastic, IP20
• Certifications: CE, cURus, EAC, RCM, RoHS
• MTBF: >500,000 hours

Why choose it

High efficiency and active power factor correction reduce energy waste and harmonic load on the mains. The wide input voltage range allows operation from both single-phase AC and DC supplies, increasing flexibility in diverse installations.

Ideal use cases

• Powering sensors, relays, and controllers in industrial cabinets
• Building automation and HVAC control panels
• Compact machinery and OEM equipment

Good to know

The output voltage is adjustable to compensate for voltage drops in long cable runs. The plastic housing provides double insulation (protection class II) without requiring a protective earth connection.
