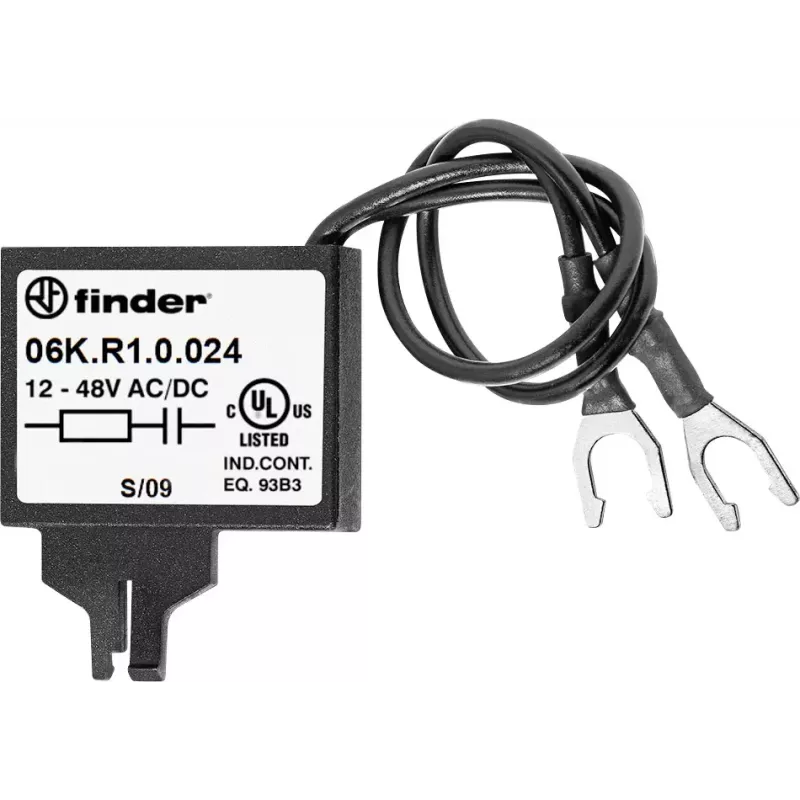

Finder RC odrušovací modul 06K.R1.0.024 pre 24V AC/DC cievky relé

In industrial control panels, relay coils generate voltage spikes that can shorten contact life and cause electromagnetic interference. The Finder 06K.R1.0.024 RC suppression module plugs directly into a relay socket to absorb these transients, protecting the coil and nearby electronics.

Key specifications

• Type: RC suppression module
• Nominal coil voltage: 24 V AC/DC
• Resistance: 100 Ω
• Capacitance: 0.1 µF
• Connection: plug-in for relay sockets
• Compatible relay series: Finder 40, 44, 46, 55, 60, 62, 65
• Operating temperature: -40 to +70 °C
• Storage temperature: -40 to +85 °C
• Dielectric strength: 2500 V AC between terminals (1 min)
• Insulation resistance: ≥ 100 MΩ at 500 V DC
• Housing material: self-extinguishing thermoplastic
• Protection degree: IP20
• Mounting position: any

Why choose it

Extends relay contact life and reduces electromagnetic interference in AC or DC coil circuits. The module is simple to install—just plug it into the relay socket before inserting the relay.

Ideal use cases

• Automation panels with frequent relay switching
• Machinery where contact arcing causes premature failure
• Control circuits sensitive to voltage transients

Good to know

Designed for use with Finder 40, 44, 46, 55, 60, 62, and 65 series relays. The module conforms to CE and RoHS requirements.
