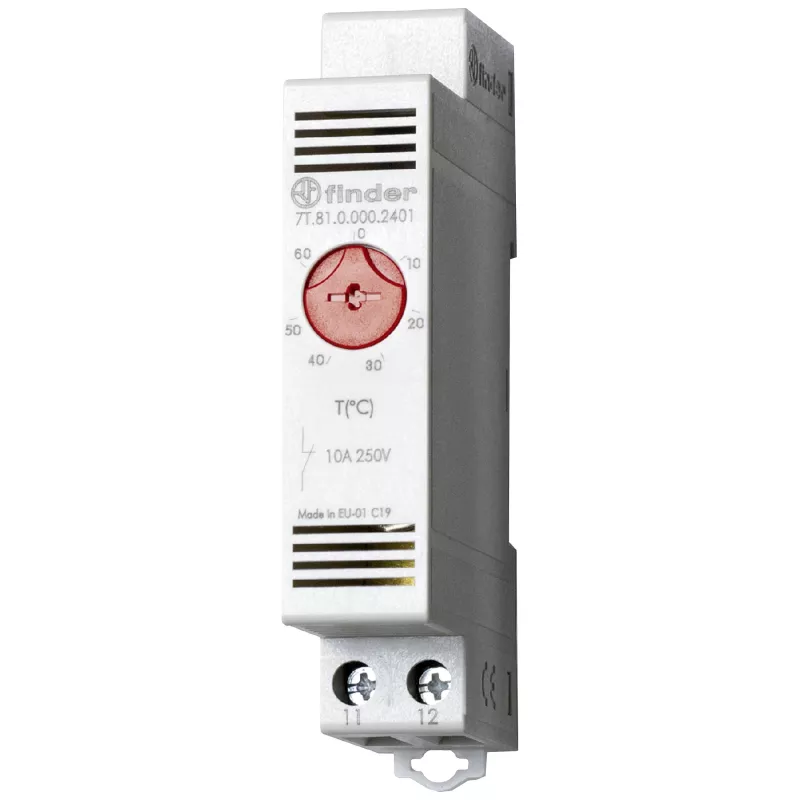

Finder termostat do rozvádzača 7T.81.0.000.2402, 1 NC kontakt, 250 V AC, 10 A, 0-60 °C, DIN lišta

With a 10 A switching capacity at 250 V AC, the Finder 7T.81.0.000.2402 regulates enclosure temperatures from 0 to +60 °C using a bimetallic sensor and a single normally closed (NC) contact.

Overview

This control cabinet thermostat is designed for DIN rail mounting and provides reliable temperature control in electrical enclosures. It features a compact 17.5 mm width and screw terminals for easy wiring.

What stands out

• Wide setting range: 0 to +60 °C
• High switching power: 2500 W (AC1)
• Long mechanical life: 5 million cycles
• Self-extinguishing housing (UL 94 V-0)

Technical details

• Contact type: 1 NC (normally closed)
• Operating voltage: 250 V AC
• Max. switching current: 10 A (AC1)
• Hysteresis: 7 K (±4 K tolerance)
• Sensor: bimetallic
• Mounting: 35 mm DIN rail (EN 60715)
• Connection: screw terminals, max 2.5 mm²
• Protection: IP20
• Housing: light grey (RAL 7035) thermoplastic
• Ambient temperature: -20 to +80 °C

Our verdict

A robust and precise thermostat for cabinet climate control, backed by Finder's engineering and a 100,000-cycle electrical life.
