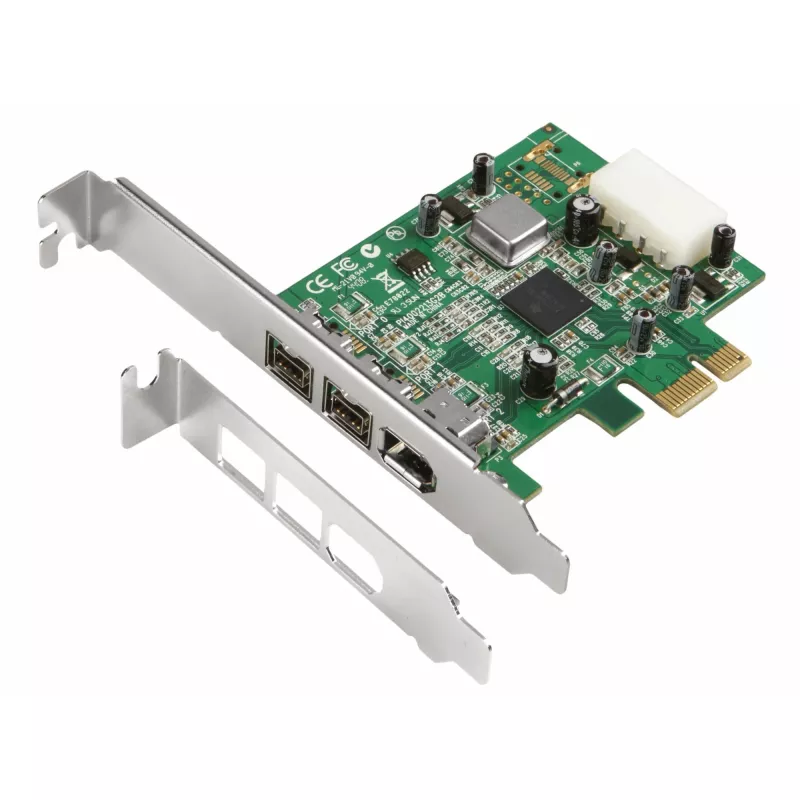

FireWire PCIe host adaptér Dawicontrol DC-FW800

The DAWICONTROL DC-FW800 FireWire PCIe Host Adapter provides a stable FireWire (IEEE 1394b) connection for systems with an available PCIe slot. Designed for reliable 800 Mbit/s data transfer, this adapter supports high-speed communication with compatible FireWire devices and integrates into legacy and some older Windows environments. The compact card allows desktop computers to add a dedicated FireWire port without replacing the motherboard or existing controllers.

Advantages

The card delivers sustained 800 Mbit/s transfer capability over a FireWire interface while occupying a single PCIe slot. It is built to be plug-and-play where supported and offers broad compatibility with multiple older Windows operating systems. The adapter's form factor and host interface make installation straightforward and preserve internal expansion space for additional cards.

Key specifications

How to use

Power down the computer and insert the adapter into an available PCIe slot on the motherboard, securing the bracket to the chassis. Boot the system and install any required drivers if the operating system does not automatically recognize the card. Connect FireWire devices to the external port using appropriate cables and verify device status in the system device manager or relevant multimedia software. For video capture or audio interface work, configure the target application to use the connected FireWire device as the input or output source.

Recommendations

Use shielded FireWire cables of appropriate length to maintain signal integrity and limit cable runs to manufacturer-recommended distances. When working with older operating systems, ensure the latest available drivers are installed and consider disabling unused onboard controllers to prevent resource conflicts. For consistent performance, connect high-bandwidth devices directly to the adapter rather than daisy-chaining multiple devices when possible.
