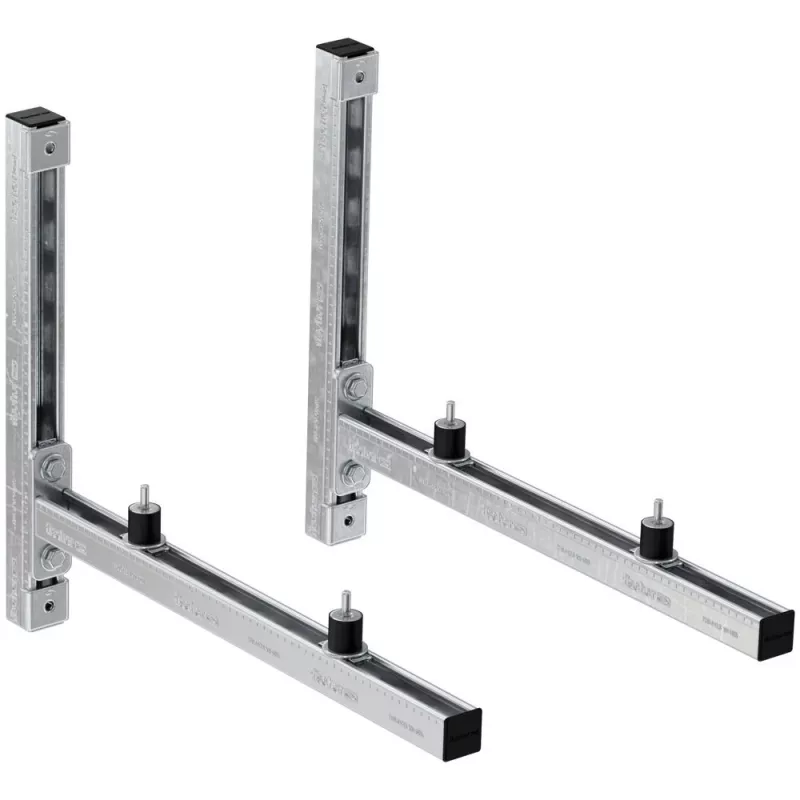

Fischer KSU S 600 sada konzol s protihlukovou ochranou 553738

For pipe, duct, and cable tray installations where structure-borne noise must be controlled, the Fischer KSU S 600 cantilever bracket set provides a wall-mounted support arm with an integrated noise protection element. The 600 mm arm is made from S235JR steel with an electro-galvanized finish, and the set is rated for a vertical load capacity of 2.5 kN.

Key specifications

• Bracket arm length: 600 mm
• Material: Steel S235JR
• Surface treatment: Electro-galvanized
• Max. vertical load capacity: 2.5 kN
• Noise reduction level: Approx. 17 dB(A)
• Mounting type: Wall mounting
• Overall height: 300 mm
• Base plate width: 100 mm
• Console material thickness: 5 mm
• Number of mounting holes: 2
• Mounting hole diameter: 11 mm
• Components per set: 1x cantilever bracket, 1x noise protection element

Why choose it

The integrated noise protection element reduces structure-borne sound transmission by approximately 17 dB(A), helping to meet acoustic requirements in residential and commercial buildings. The electro-galvanized steel construction provides corrosion resistance for indoor applications.

Ideal use cases

• Supporting pipes and ducts on walls
• Mounting cable trays in noise-sensitive areas
• HVAC installations requiring vibration damping

Good to know

The bracket is designed for wall mounting with two 11 mm holes. The set includes one cantilever bracket and one noise protection element. Load capacity is 2.5 kN vertical.
