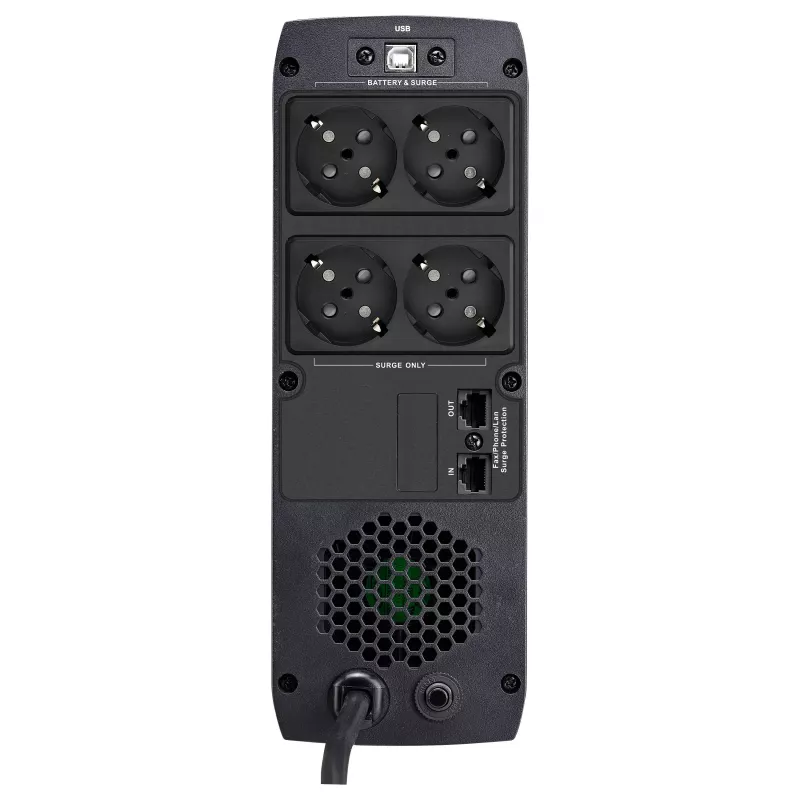

FSP ST 1200 Tower 1200VA 720W Line-Interactive UPS so 4 Schuko zásuvkami a RJ45 ochranou

Power outages, voltage fluctuations, and surges can damage sensitive electronics and cause data loss. The FSP ST 1200 Tower UPS provides reliable line-interactive power protection for your critical equipment, ensuring uninterrupted operation during blackouts and clean power during brownouts. With 1200VA/720W capacity, it safeguards workstations, network devices, and small servers, keeping your productivity and data safe.

Who is it for

This UPS is ideal for home offices, small businesses, and IT enthusiasts who need to protect computers, networking gear, NAS devices, and point-of-sale systems from power disturbances. It is especially suited for environments with unstable power grids or frequent electrical noise.

Main features

• Line-Interactive topology with Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery.
• 1200VA/720W power capacity supports multiple devices simultaneously.
• 4 Schuko (CEE 7/3) output sockets for direct connection of equipment.
• RJ45 data line protection for network/phone lines against surges.
• Simulated sine wave output on battery mode for compatibility with most power supplies.
• USB communication port for monitoring and safe shutdown software.
• LED indicators and audible alarms for status and fault alerts.
• Tower form factor for easy placement on desk or floor.

Specifications

• UPS Topology: Line-Interactive
• Apparent Power: 1200 VA
• Real Power: 720 W
• Input Voltage (Nominal): 230 V AC
• Input Voltage Range: 170 - 280 V AC
• Output Voltage (Nominal): 230 V AC
• Output Frequency: 50/60 Hz (Auto-sensing)
• Output Waveform (Battery Mode): Simulated Sine Wave
• Transfer Time: 2-6 ms (Typical)
• Battery Type: Sealed Lead-Acid (Maintenance-Free)
• Battery Quantity: 2 x 12V/7Ah
• Recharge Time: 4-6 hours to 90% capacity
• Output Connections: 4 x Schuko (CEE 7/3)
• Data Line Protection: RJ45 (In/Out) for Network/Phone
• Communication Ports: USB Type-B
• Indicators: LED Status Indicators
• Alarms: Battery Mode, Low Battery, Overload, Fault
• Protection Features: Overload, Discharge, Overcharge, Short Circuit
• Form Factor: Tower
• Operating Temperature: 0 - 40 °C

Tips

Place the UPS in a well-ventilated area and avoid blocking its air vents. Connect only essential equipment to the battery-backed outlets to maximize runtime during an outage. Use the included USB cable and software to configure automatic shutdown of connected computers when battery is low.
