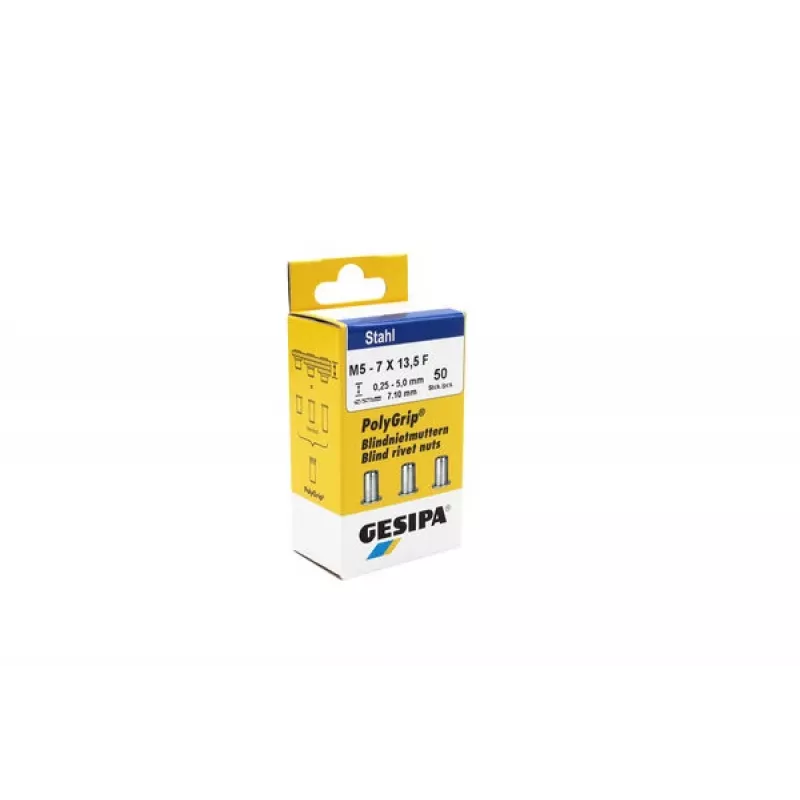

GESIPA PolyGrip® nitovacia matica M5 oceľ pozinkovaná 7x13,5mm 50 ks 1464840

Blind rivet nut with M5 thread, engineered for high-strength fastening in thin-walled materials. The PolyGrip® design ensures reliable deformation and excellent load distribution.

Advantages

Zinc-plated steel construction provides corrosion resistance and durability. The flat head with round body allows for flush installation and a clean appearance. Suitable for grip ranges from 0.5 to 6.0 mm, offering versatility across various sheet thicknesses.

Suitable for

• Sheet metal fabrication
• Automotive bodywork
• Electrical enclosures
• General assembly where a strong threaded anchor is required

Key specifications

• Thread size: M5
• Material: Steel, zinc-plated
• Shaft diameter: 7 mm
• Overall length: 13.5 mm
• Head diameter: 10 mm
• Head thickness: 1.0 mm
• Grip range: 0.5 - 6.0 mm
• Drill hole diameter: 7.1 mm
• Quantity: 50 pieces

Recommendations

Use with a compatible rivet nut setting tool. Ensure drill hole diameter matches specification for optimal setting performance.
