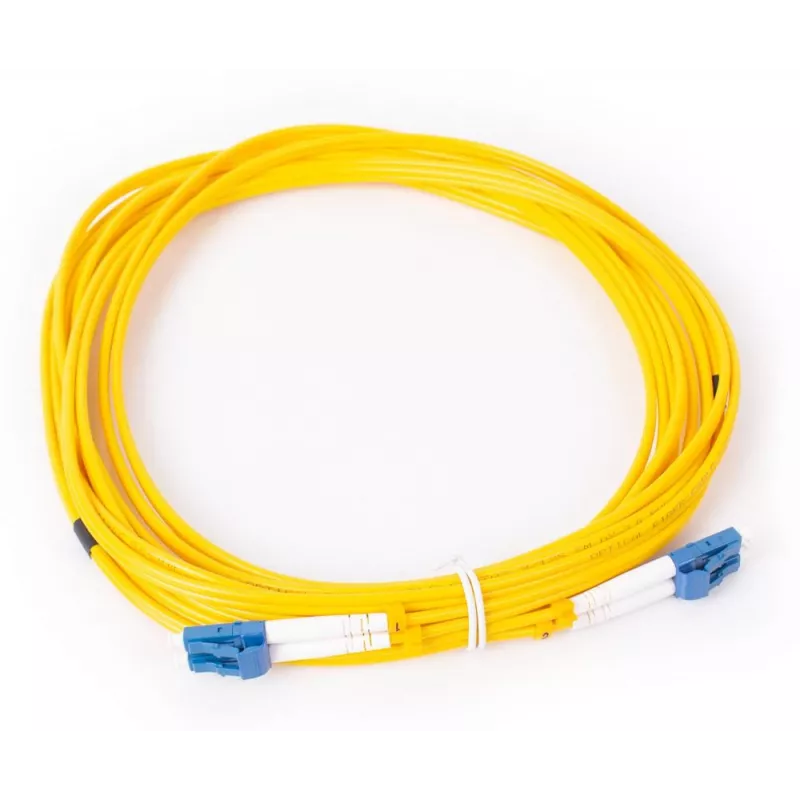

GETFORT GF-LULUD5 Singlemode optický patch kábel LC/UPC na LC/UPC duplex 5m žltý

The GETFORT GF-LULUD5 is a high-quality single-mode fiber optic patch cord designed for reliable and high-speed data transmission in demanding network environments. With LC/UPC to LC/UPC duplex connectors and a length of 5 meters, this cable ensures low insertion loss and high return loss, making it ideal for data centers, telecommunications, LAN, and FTTH applications.

Advantages

This fiber optic patch cord offers exceptional performance with insertion loss ≤0.3 dB and return loss ≥50 dB, ensuring minimal signal degradation. The duplex configuration supports bidirectional communication, while the yellow PVC jacket provides durability and easy identification. Compliant with RoHS, CE, and TIA/EIA-568-C.3 standards, it guarantees reliability and safety.

Suitable for

• Data centers requiring high-speed connections
• Telecommunications networks
• Local Area Networks (LAN)
• Fiber to the Home (FTTH) installations

Key specifications

• Fiber Mode: Single-mode (SM)
• Connector Type: LC/UPC to LC/UPC
• Cable Configuration: Duplex
• Cable Length: 5 meters
• Fiber Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Jacket Material: PVC
• Jacket Color: Yellow
• Cable Diameter: 2.0 mm
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 50 dB
• Polish Type: UPC
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius (Dynamic): 10 mm
• Minimum Bend Radius (Static): 20 mm

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is compatible with standard LC/UPC interfaces and is suitable for both indoor and protected outdoor installations.
