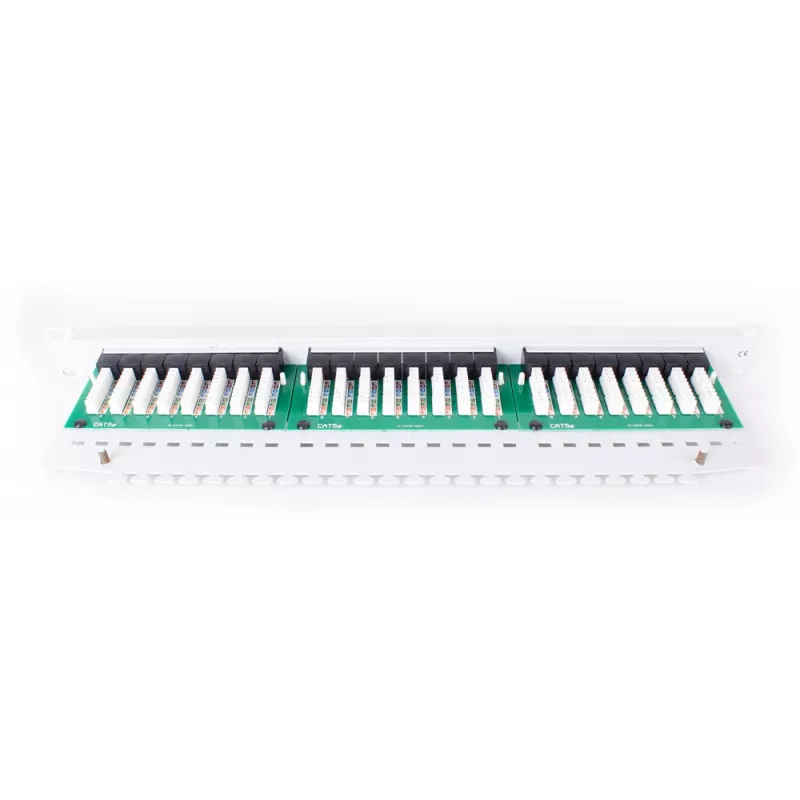

GETFORT PGF-5EUTP24-B5-G patch panel UTP Cat.5e 24 port sivý 1U montáž do racku

The GETFORT PGF-5EUTP24-B5-G is a high-performance UTP patch panel designed for structured cabling in data centers and network closets. It supports Category 5e standards, ensuring reliable data transmission up to 1000 Mbps for 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet networks.

Advantages

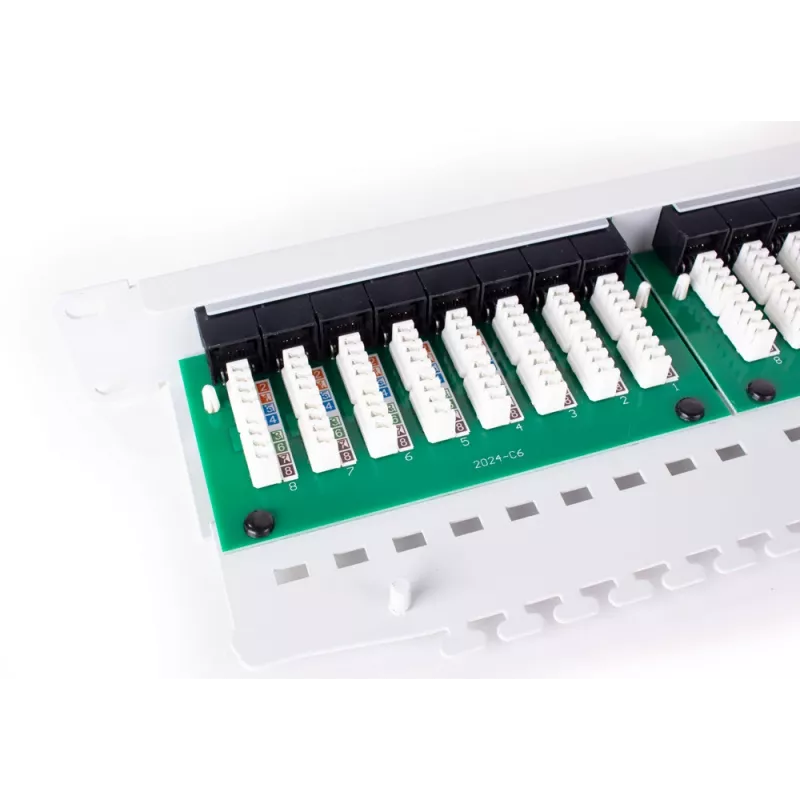

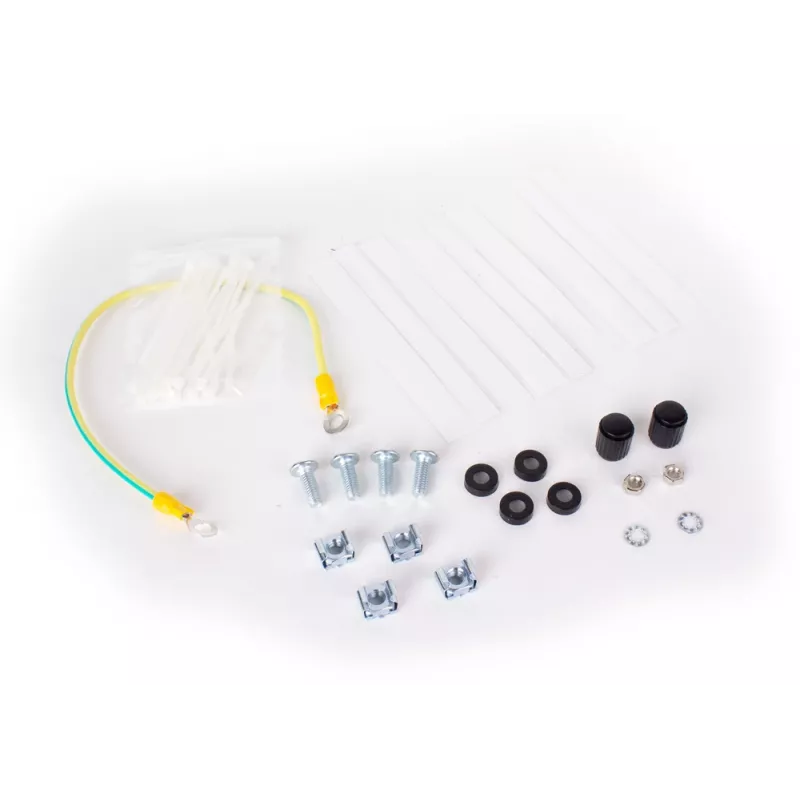

This 24-port patch panel offers easy termination with IDC connectors supporting TIA/EIA 568A/B wiring schemes. Its 1U rack-mountable design saves space, and the included cable management bar and ties help organize cables neatly. The SPCC steel housing provides durability, and numbered ports simplify identification.

Suitable for

• Network installations requiring Cat.5e performance
• Data centers and server rooms
• Structured cabling systems
• Enterprise and home networks

Key specifications

• Product Type: Patch Panel
• Number of Ports: 24
• Cable Category: Cat.5e
• Shielding Type: UTP
• Mounting Type: Rack-mountable, 1U
• Connector Type: RJ-45 Female (front), IDC (rear)
• Color: Grey
• Housing Material: SPCC Steel
• Data Transfer Rate: Up to 1000 Mbps
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Certifications: RoHS, CE
• Operating Temperature: -10°C to 60°C

Recommendations

For optimal performance, use with Cat.5e or higher cabling and ensure proper termination following TIA/EIA standards. The patch panel is ideal for high-density network environments where reliability and organization are key.
