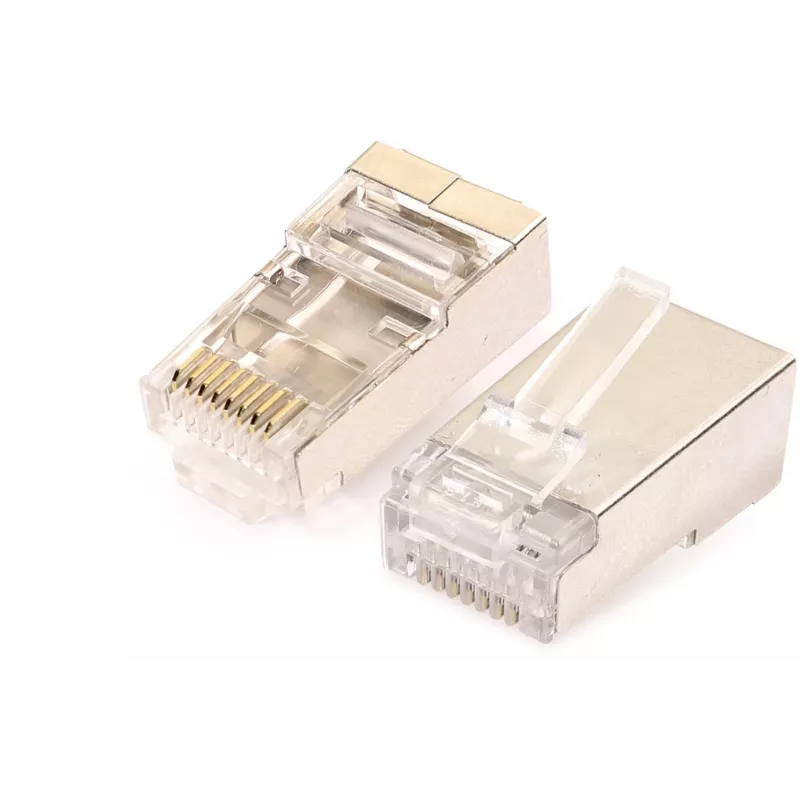

GETFORT RJ45 Cat.6 tienený konektor samec 8P8C s vodičom (100 kusov)

Professional-grade GETFORT RJ45 Cat.6 shielded connector (8P8C) with integrated wire guide, designed for reliable high-speed Ethernet connections. Pack of 100 pieces, ideal for network installers and data centers.

Advantages

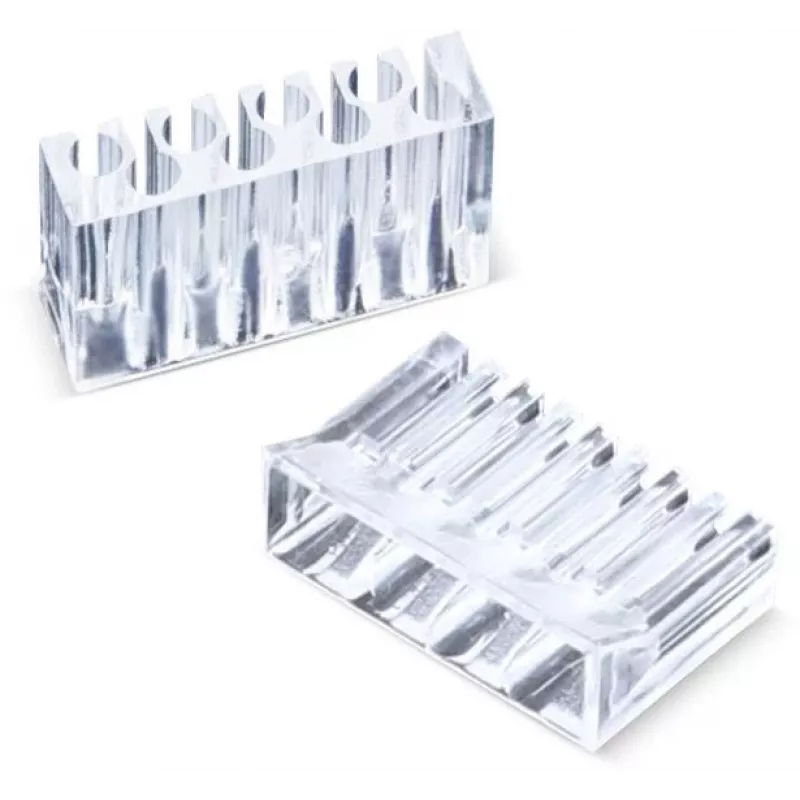

Shielded design minimizes electromagnetic interference (EMI) for stable data transmission. Integrated wire guide (load bar) simplifies conductor alignment, ensuring consistent termination and reducing installation errors. Gold-plated contacts provide corrosion resistance and reliable connectivity over many mating cycles.

Suitable for

• Ethernet networking (10GBASE-T over short distances)
• Data centers and server rooms
• Home and office structured cabling
• Industrial environments requiring shielded connections

Key specifications

• Connector Type: RJ45
• Category: Cat.6
• Pin Configuration: 8P8C (8 Position, 8 Conductor)
• Shielding: Shielded (STP/FTP)

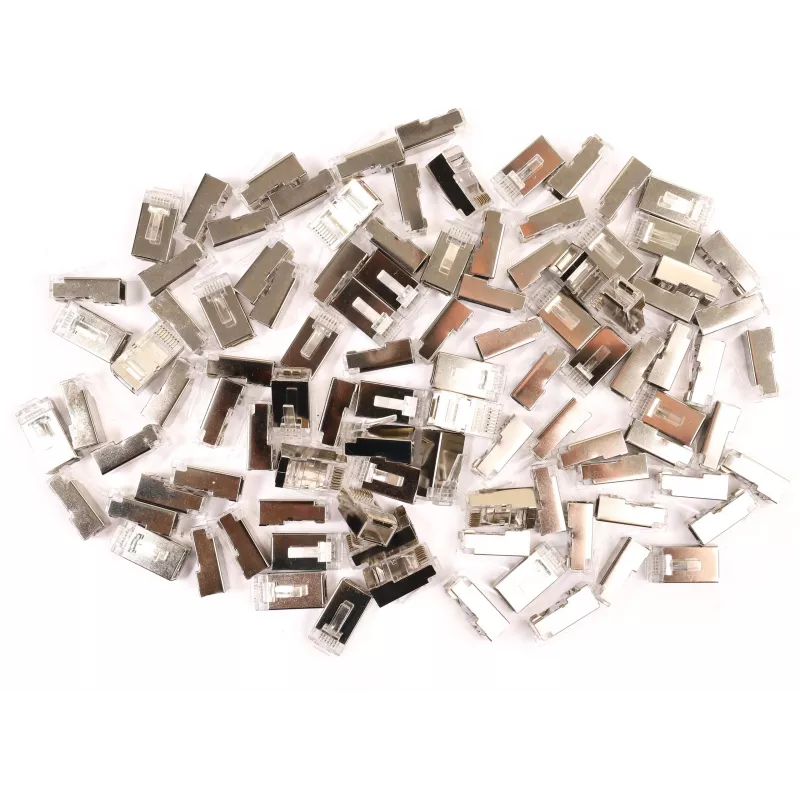

• Quantity: 100 pieces
• Contact Plating: Gold-plated (50 micron)
• Housing Material: Polycarbonate (PC)
• Color: Transparent / Clear
• Compatibility: Solid and stranded conductors, 23 AWG to 26 AWG
• Max Data Transfer Rate: 10 Gigabit Ethernet (10GBASE-T)
• Max Bandwidth: 250 MHz
• Termination Method: Crimp-on
• Durability: 750 mating cycles
• Operating Temperature: -10°C to 60°C
• Flammability Rating: UL 94V-2
• Compliance: RoHS compliant

Recommendations

Use with Cat.6 or Cat.6a shielded cable for optimal performance. Ensure proper crimping tool (8P8C) and follow T568A/T568B wiring standards. Suitable for both solid and stranded conductors.
