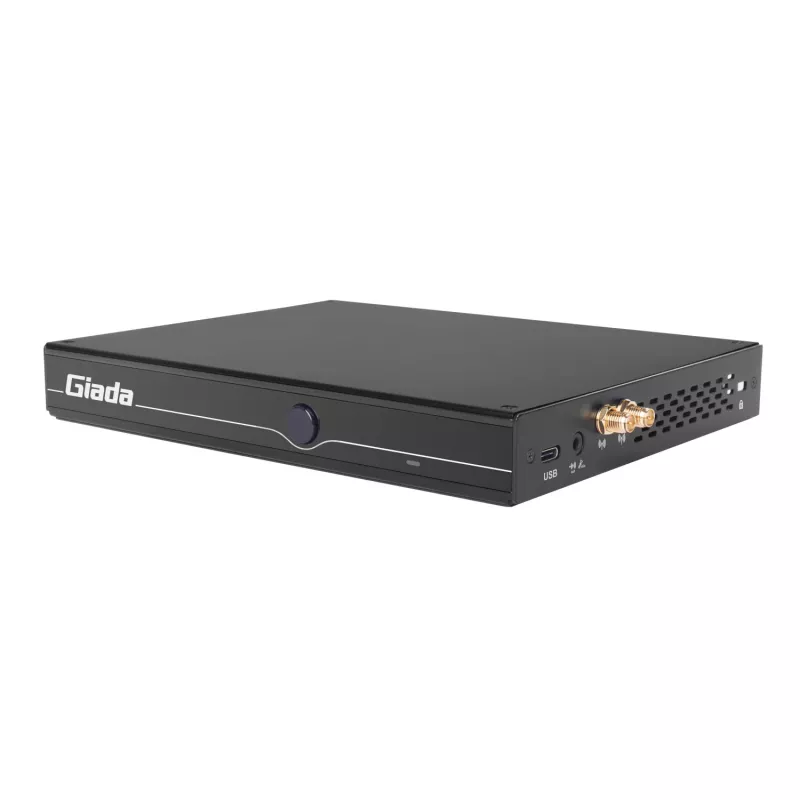

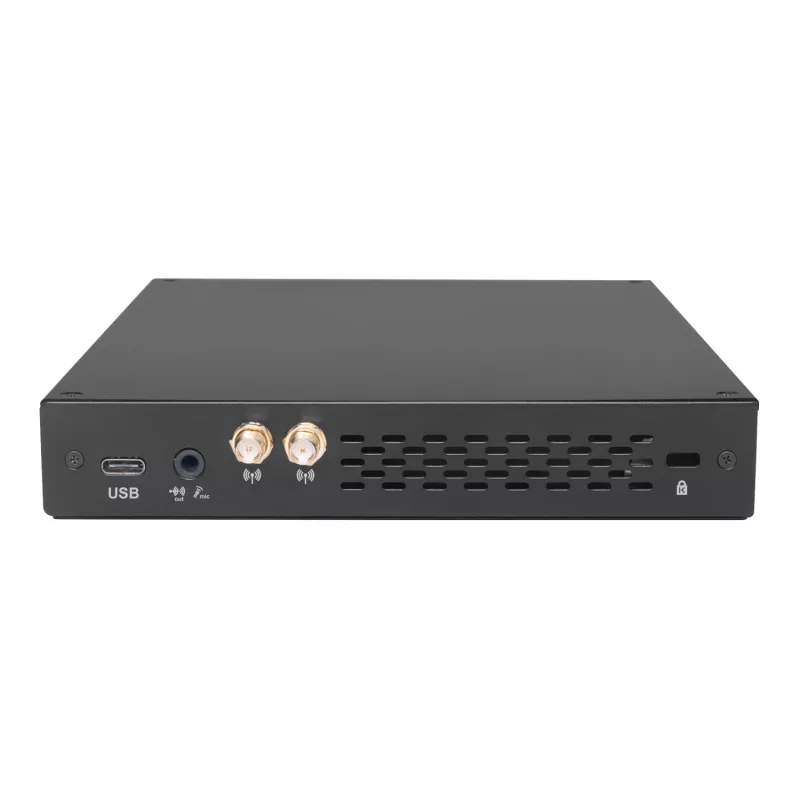

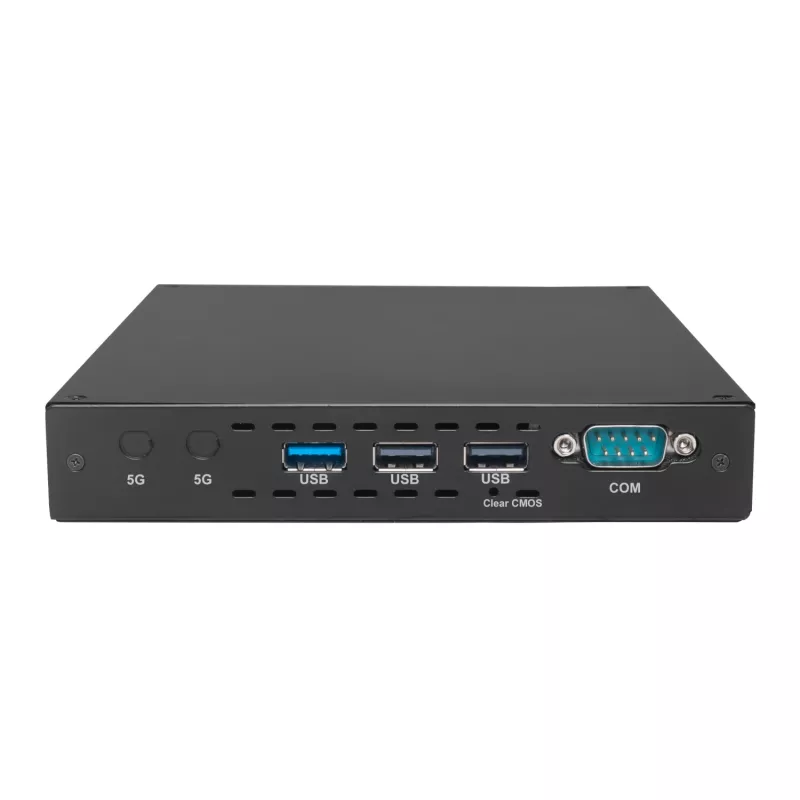

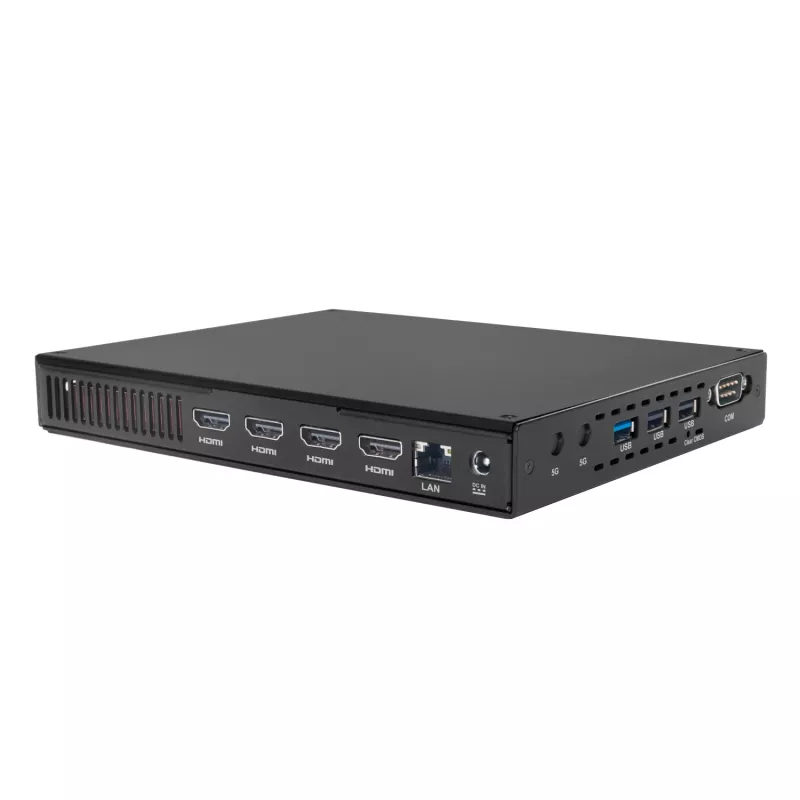

Giada D613-U1 Intel Core i3-1315U barebone signage prehrávač veľkosti knihy

With a 13th Gen Intel Core i3-1315U processor packing 6 cores and 8 threads, this book-size barebone delivers serious multitasking muscle in an ultra-compact chassis. It's built for commercial environments where reliability and triple-display capability matter.

Overview

The Giada D613-U1 is a barebone PC engineered for digital signage, kiosks, and industrial control. It supports up to 64GB of DDR4-3200 memory across two SO-DIMM slots and offers flexible storage via an M.2 PCIe Gen4 x4 slot and a 2.5" SATA bay. Triple independent displays are driven by dual HDMI 2.0 and DisplayPort 1.4, enabling immersive multi-screen setups. Dual Intel Gigabit LAN and dual RS232 ports provide dependable connectivity for networked and legacy devices.

What stands out

• 13th Gen Intel Core i3-1315U with 6 cores (2P+4E) and 8 threads for efficient multitasking
• Supports up to 64GB DDR4-3200 memory and dual storage (M.2 NVMe + 2.5" SATA)
• Triple independent display outputs: 2x HDMI 2.0 + 1x DisplayPort 1.4
• Dual Intel Gigabit LAN for redundancy and high-speed networking
• Dual RS232 serial ports for legacy device integration
• VESA mountable (75x75mm and 100x100mm) for space-saving installation

Technical details

• Processor: Intel Core i3-1315U (Raptor Lake-U), 6 cores, 8 threads, up to 4.5GHz
• Graphics: Intel UHD Graphics for 13th Gen processors
• Memory: 2 x DDR4-3200 SO-DIMM slots, max 64GB (32GB per slot)
• Storage: 1 x M.2 2280 PCIe Gen4 x4, 1 x 2.5" SATA 3.0
• Video outputs: 2 x HDMI 2.0, 1 x DisplayPort 1.4 (supports 3 independent displays)
• USB: 2 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
• Ethernet: 2 x Intel Gigabit LAN (RJ45)
• Wireless: 1 x M.2 E-key slot for Wi-Fi/Bluetooth module (module not included)
• Serial: 2 x RS232 (DB9)
• Audio: 1 x Line-out, 1 x Mic-in
• Power: DC 12V/5A (60W) adapter
• OS compatibility: Windows 10/11, Linux
• Form factor: Ultra-compact barebone
• Mounting: VESA 75x75mm, 100x100mm

Our verdict

The Giada D613-U1 is a versatile and compact barebone that punches above its size for commercial deployments. With triple display support, dual LAN, and legacy serial ports, it's a solid foundation for signage and edge computing projects.
