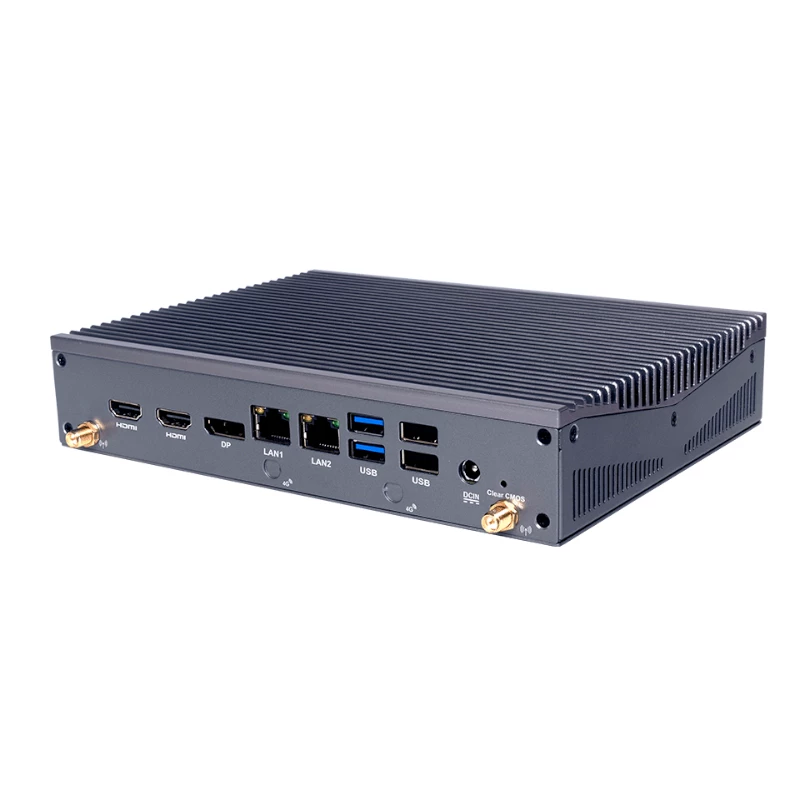

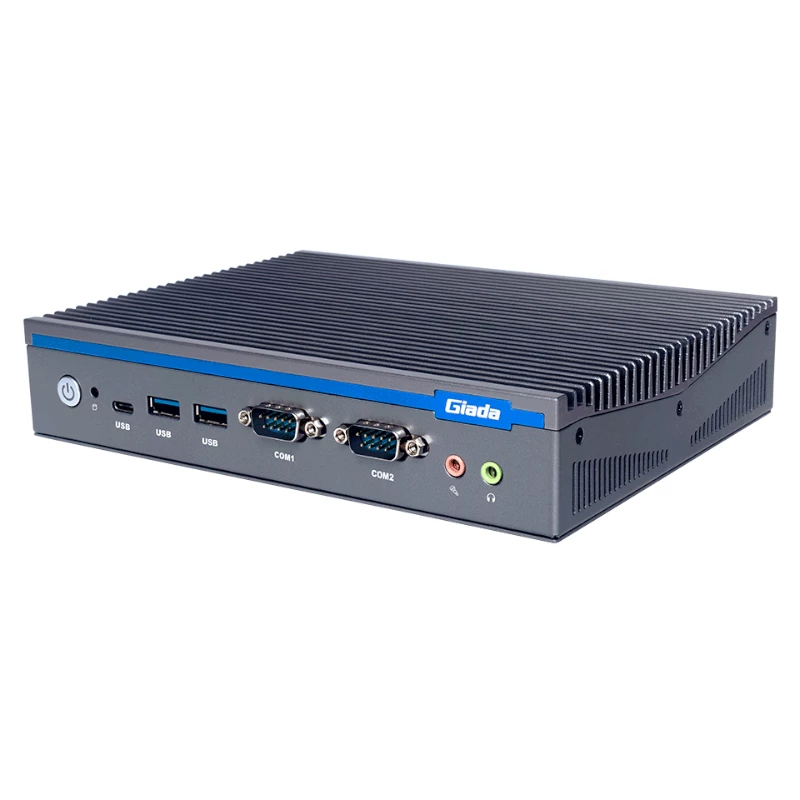

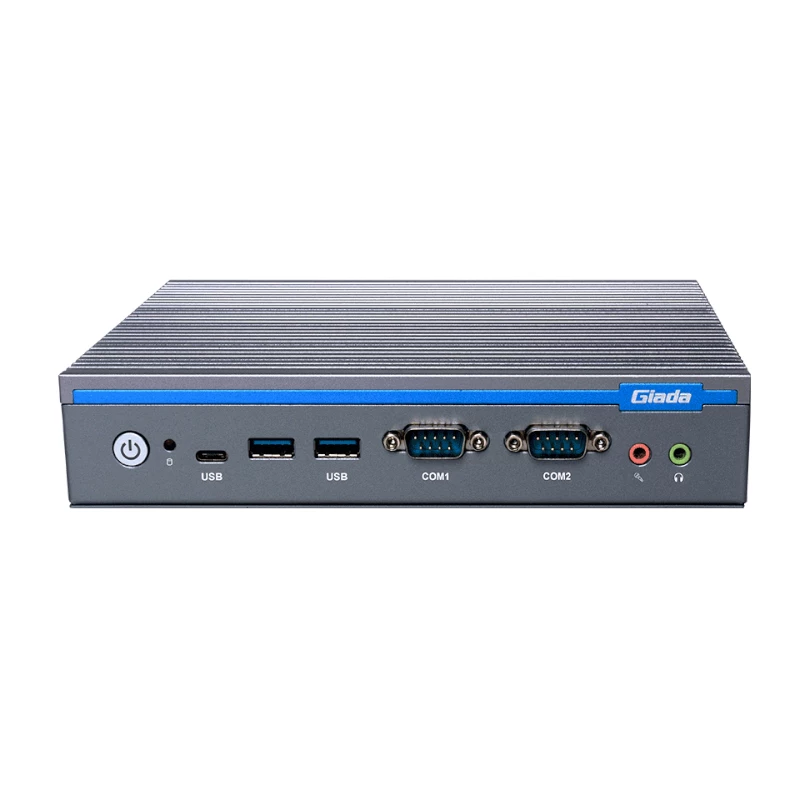

Giada DF612 Mini PC, Intel Core i3-1215U, 2x DDR4 3200MHz

The Giada DF612 is a compact mini PC powered by an Intel Core i3-1215U processor with six cores and a frequency of 3.30 GHz (up to 4.40 GHz). It features two SO-DIMM DDR4 memory slots supporting up to 64GB, integrated Intel UHD Graphics, and a range of connectivity options including dual HDMI, DisplayPort, dual Gigabit Ethernet, and Wi-Fi 6 support. Designed for digital signage and commercial applications, it offers flexible mounting options and a durable metal construction.

Key features

• Intel Core i3-1215U processor (6 cores, 3.30 GHz up to 4.40 GHz)
• 2 x SO-DIMM DDR4 memory slots, up to 64GB
• Intel UHD Graphics with DirectX 12.1, OpenGL 4.6, OpenCL 3.0
• 2 x HDMI (max. 4096 x 2304 @60 Hz), 1 x DisplayPort (max. 7680 x 4320 @60 Hz)
• 2 x Gigabit Ethernet (Intel i219LM, Realtek RTL8111H)
• Wi-Fi 6 (CNVi) support, optional 3G/4G/5G via M.2 and SIM slot
• 4 x USB 3.2 Gen2, 2 x USB 2.0, 1 x USB Type-C 3.2 Gen2
• 1 x RS232, 1 x RS232/422/485 serial ports
• M.2 M-Key slot for PCIe SSD (2242/2280)
• Watchdog timer, auto power on
• VESA mounting kit (JZ183) included
• Metal construction, black colour

Specifications

• Brand: Giada
• MPN: DF612-1215U40N0G-GIA
• Processor: Intel Core i3-1215U, 6 cores, 3.30 GHz (up to 4.40 GHz)
• BIOS: AMI EFI 64 Mbit
• Memory type: DDR4-3200MHz
• Memory slots: 2 x SO-DIMM
• Maximum memory: 64GB
• Graphics: Intel UHD Graphics
• Display outputs: 2 x HDMI, 1 x DisplayPort
• Ethernet: 2 x RJ45 Gigabit
• Wi-Fi/Bluetooth: 1 x E-Key M.2 (2230) for Wi-Fi/BT, supports Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
• Mobile network: 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM slot
• USB: 4 x USB 3.2 Gen2, 2 x USB 2.0, 1 x USB Type-C 3.2 Gen2
• Serial: 1 x RS232, 1 x RS232/422/485
• Audio: 1 x MIC-IN, 1 x AUDIO-OUT
• Buttons: 1 x Power on, 1 x CLR-CMOS
• Antenna connectors: 2 x Wi-Fi/BT, 2 x 3G/4G (reserved)
• Storage: 1 x M-Key M.2 (2242/2280) for PCIe SSD
• Watchdog timer: 0~255 seconds
• Auto power on: yes
• Operating system installed: Windows 11 (64-bit)
• Other OS support: Linux Ubuntu (64-bit)
• Power input: DC-IN 12V/19V
• Operating temperature: 0°C ~ 40°C at 0.7m/s air flow
• Relative humidity: 95% @40°C (non-condensing)
• Certification: CE, FCC Class B, CCC
• Mounting: Desk/wall mounting and VESA mounting kit (JZ183)
• Construction: Metal
• Colour: Black
• Dimensions: 20 x 15 x 4 cm
