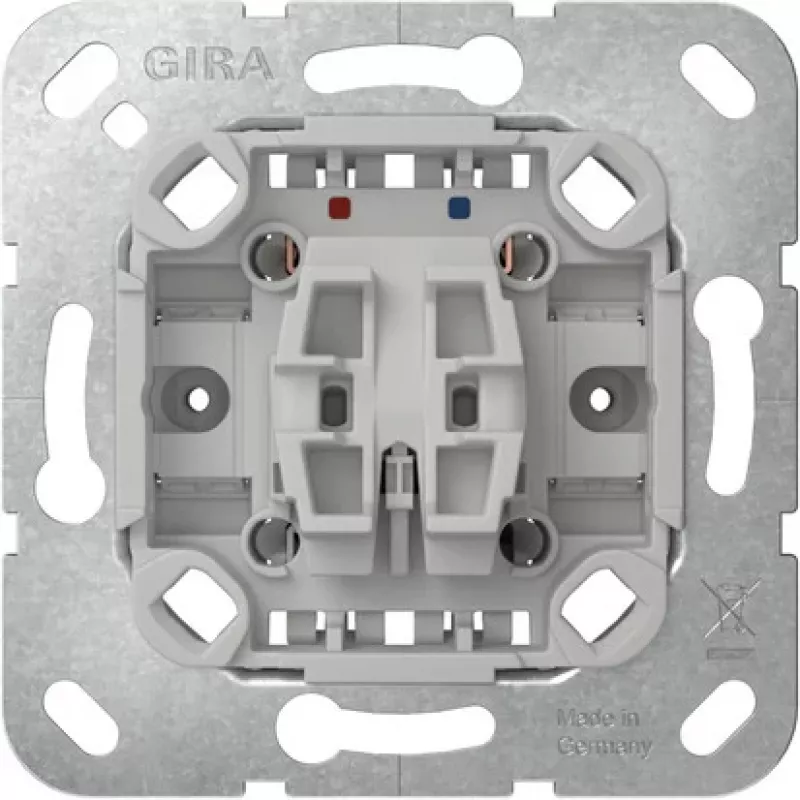

GIRA 387000 kolísková tlačidlová vložka so svorkou neutrálneho vodiča, 1x NO, 250 V, 10 A, bez držiakov

When a standard rocker switch lacks a neutral connection, installing illuminated or smart lighting controls becomes impossible without rewiring. The GIRA 387000 rocker push-button insert solves this by integrating a neutral terminal directly into the flush-mounted insert, enabling neutral-dependent loads while keeping the familiar Gira System 55 design.

Who is it for

Electricians and installers working with Gira switch ranges who need a momentary contact insert with neutral connection for lighting control, particularly in residential and commercial buildings where neutral conductors are available at the switch point.

Main features

• Momentary push-button switching function with 1-pole normally open contact
• Integrated neutral terminal (N-Klemme) for neutral-dependent applications
• Rated voltage 250 V AC, rated current 10 A
• Screw terminals for rigid conductors 1.5 - 2.5 mm²
• Flush-mounted installation without spreading claws (ohne Kralle)
• Compatible with Gira System 55, E2, Esprit, Event, ClassiX, and F100 rocker covers
• Halogen-free thermoplastic housing

Specifications

• Product type: Rocker push-button insert
• Switching function: Momentary (push-button)
• Contact configuration: 1x NO (normally open)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm² (rigid conductors)
• Mounting type: Flush-mounted
• Fixing method: Without spreading claws
• Special feature: Integrated neutral terminal
• Material: Thermoplastic (housing)
• Operating temperature: -5 °C to +45 °C
• Halogen-free: Yes
• Number of rockers: 1
• Installation depth: Approx. 32 mm

Tips

Pair this insert with any Gira cover from the System 55 family to match your interior design. The neutral terminal makes it suitable for controlling electronic ballasts or LED drivers that require a neutral reference.
