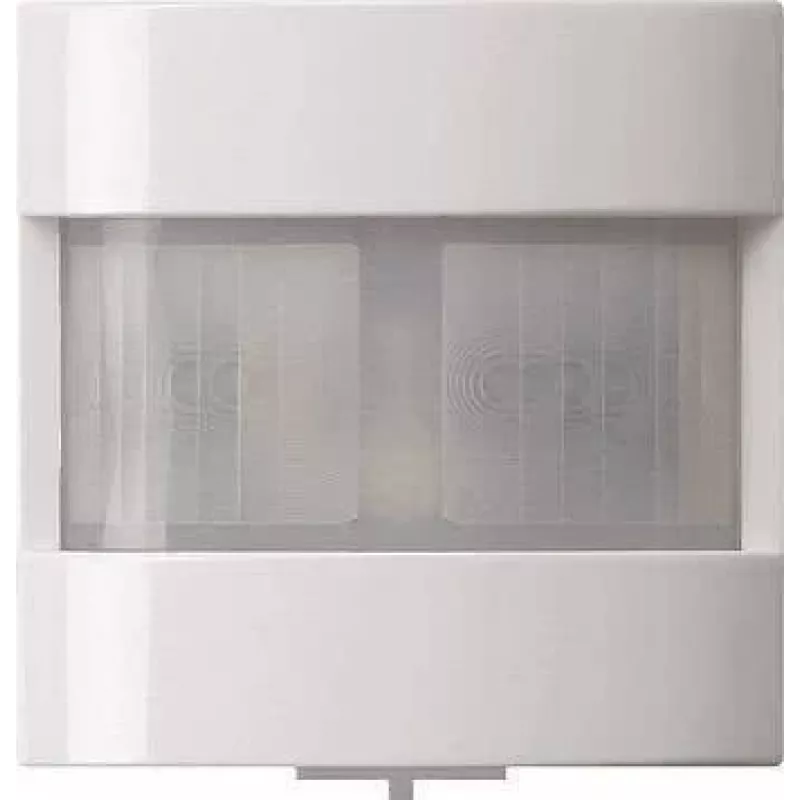

Gira KNX pohybový detektor Comfort 1,10 m System 55 čistobiela 205003

Detect motion across a full 180° with a forward range of 10 m and side ranges of 6 m each. The Gira KNX Motion Detector Comfort integrates brightness sensing and adjustable time delays from 10 seconds to 120 minutes.

Overview

Part of the Gira System 55 range, this flush-mounted KNX motion detector in pure white is designed for indoor use. It operates on KNX bus voltage (21–30 V DC) and supports automatic and semi-automatic modes, presence detection, staircase function, short-term presence, master/slave operation, and sensitivity adjustment.

What stands out

• 180° detection angle with 10 m forward and 6 m side range
• Integrated brightness sensor with adjustable threshold from 10 to 2000 lux
• Adjustable time delay from 10 seconds to 120 minutes
• Multiple functions: presence detection, staircase function, short-term presence
• Master/slave operation for flexible installation

Technical details

• Product type: KNX motion detector
• Series: Gira System 55
• Colour: Pure white
• Mounting type: Flush-mounted
• Recommended mounting height: 1.10 m
• Detection angle: 180°
• Detection range forward: 10 m
• Detection range sides: 6 m each
• Brightness threshold: adjustable, approx. 10 to 2000 lux
• Time delay: adjustable, approx. 10 s to 120 min
• Operating modes: automatic, semi-automatic
• Bus system: KNX
• Operating voltage: 21–30 V DC (KNX bus)
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Material: thermoplastic

Our verdict

A versatile KNX motion detector with wide coverage and flexible configuration, ideal for building automation in the System 55 design line.
