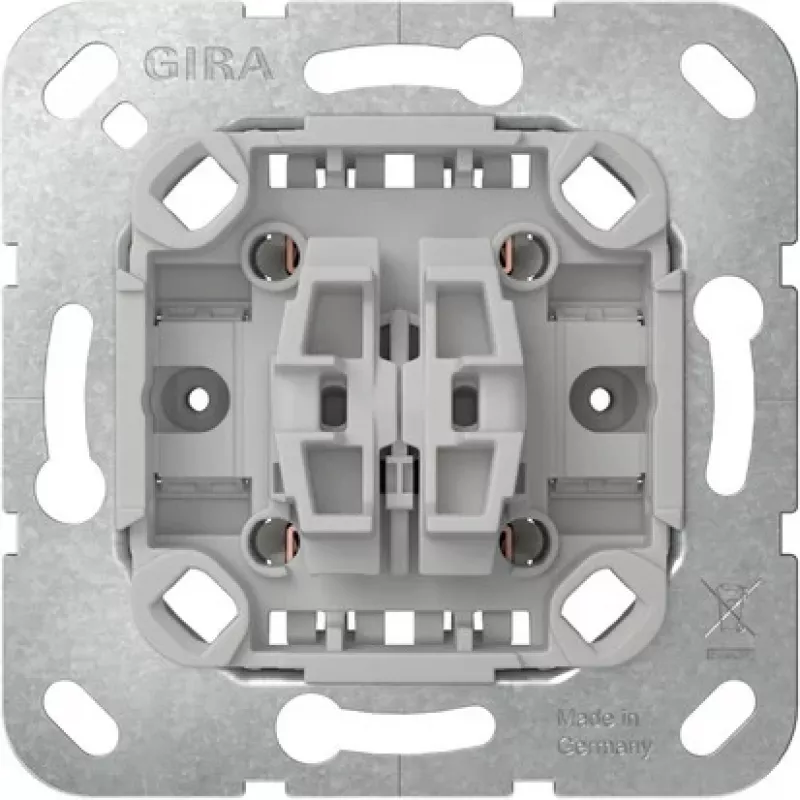

Gira kolískový vypínač / vložka prepínača bez centrálneho krytu 386900

Electricians and installers use this Gira switch insert as the functional core behind Gira System 55 rocker covers. It provides a changeover switching function for lighting circuits in dry indoor locations.

Key specifications

• Switch function: changeover switch (Wechselschalter)
• Operation type: rocker (Wippschalter)
• Mounting type: flush-mounted (Unterputz)
• Fixing method: screw fixing without claws
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: screw terminals
• Number of poles: 1-pole
• Number of rockers: 1
• Material: thermoplastic
• Halogen-free: yes
• Compatibility: Gira System 55, E2, Event, Esprit, Standard 55 (requires suitable rocker/cover)
• Installation depth: approx. 32 mm
• Protection class: IP20
• Certification: VDE

Why choose it

The insert accepts a separate Gira rocker and cover plate, allowing colour and finish to be matched to the room design. Screw terminals provide a secure connection for solid or stranded conductors.

Ideal use cases

• Replacing or installing a changeover switch in a flush-mounted box
• Combining with Gira System 55 frames and rockers for a complete switch
• Switching lighting from two locations when wired as part of a two-way circuit

Good to know

The insert is halogen-free and suitable for dry rooms only. It is delivered without rocker and cover plate.
