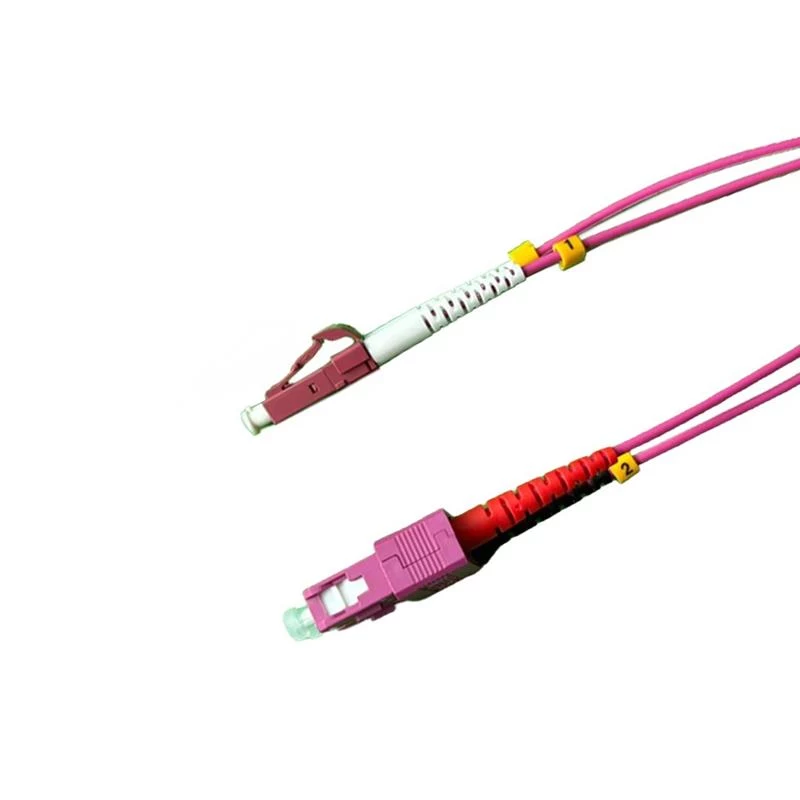

Grafenthal Optický kábel OM4 LC/UPC-SC/UPC LSZH 2,00 m fialový

The Grafenthal Optical Fibre Cable OM4 is a high-performance duplex multimode fibre patch cable designed for reliable data transmission in demanding network environments. With LC/UPC to SC/UPC connectors and a length of 2.00 metres, this cable ensures low insertion loss and high return loss, making it ideal for high-speed applications up to 40 Gbps. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces, while the vibrant violet colour aids in easy identification.

Advantages

This OM4 fibre cable offers superior bandwidth and attenuation characteristics, supporting wavelengths of 850nm and 1300nm. Its duplex design allows for simultaneous bidirectional communication, and the LSZH jacket ensures minimal smoke and toxic fumes in case of fire, complying with strict safety regulations. The cable is RoHS and CE certified, meeting TIA/EIA-568-C.3 and IEC 60794-2 standards.

Suitable for

• Data centre interconnects
• High-speed local area networks (LANs)
• Storage area networks (SANs)
• Telecommunications rooms
• Any application requiring reliable fibre optic connectivity with low signal loss

Key specifications

• Fibre Mode: OM4 Multimode
• Core/Cladding Diameter: 50/125 µm
• Connector A: LC/UPC
• Connector B: SC/UPC
• Cable Length: 2.00 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Colour: Violet
• Cable Type: Duplex
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Wavelength Support: 850nm / 1300nm
• Effective Modal Bandwidth @ 850nm: 4700 MHz·km
• Effective Modal Bandwidth @ 1300nm: 500 MHz·km
• Attenuation @ 850nm: ≤ 3.0 dB/km
• Attenuation @ 1300nm: ≤ 1.0 dB/km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3, IEC 60794-2
• Minimum Bend Radius: 30 mm
• Cable Diameter: 3.0 mm

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard LC and SC interfaces. Pair with OM4-rated patch panels and transceivers for best results.
